SECO Parts and Equipment
AIRCRAFT STRATOLIFTER KC-135 WW-T-700/4 IDENTICAL METALLIC TUBE 4710-01-375-3416
AIRCRAFT STRATOLIFTER KC-135 WW-T-700/4 IDENTICAL METALLIC TUBE 4710-01-375-3416
Regular price
$35.00 USD
Regular price
Sale price
$35.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4710-01-375-3416 Specs and cross-references for NSN 4710-01-375-3416 (opens in a new tab) ↗

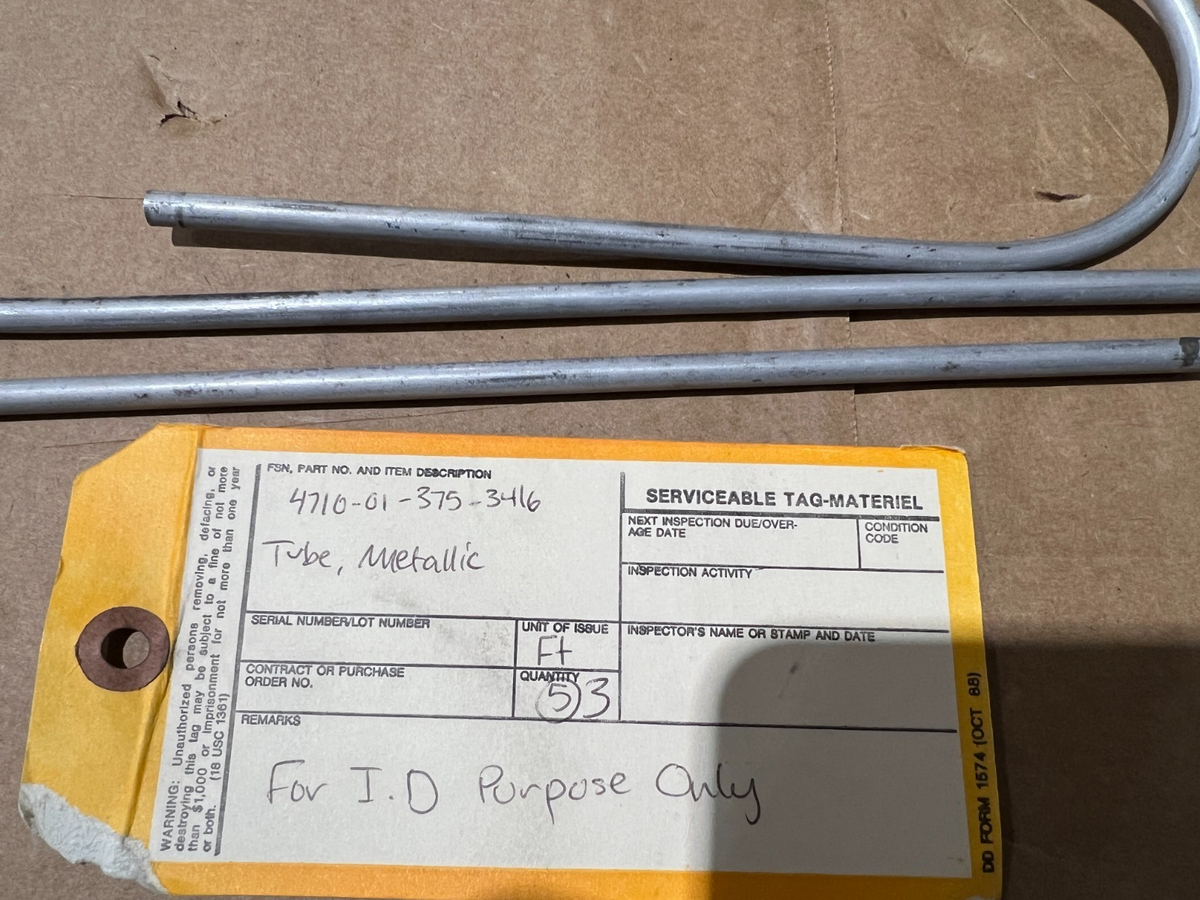

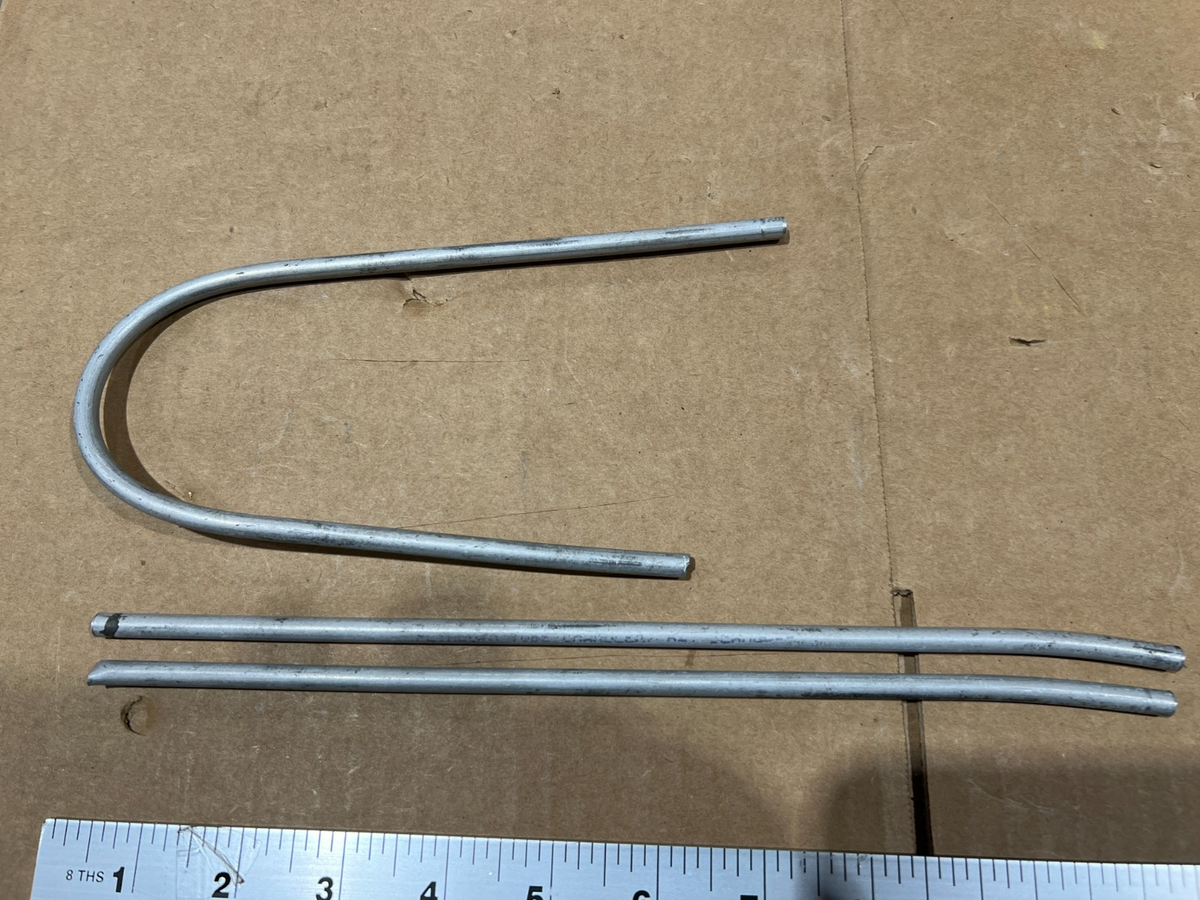

WWT700/4-O-I-0.250X0.049 Metallic Tube (NSN 4710-01-375-3416)
Aluminum alloy 5052 seamless metallic tube per WW-T-700/4, for the KC-135 Stratolifter.
Part Information
- Design Control Activity: SAE International
- Part Number: WWT700/4-O-I-0.250X0.049
- NSN: 4710-01-375-3416
- End Item: KC-135
Specifications
- Material: Aluminum Alloy 5052
- Temper: O; Type: I
- Construction: Seamless
- Diameter: 0.250 in nominal
- Wall Thickness: 0.049 in nominal
- Second End Relationship with First End: Identical
- Operating Pressure: 1500 PSI maximum
- Length: 120.000–240.000 in, random
- Specification/Standard: 81348-WW-T-700 to 4
