Aircraft Orion P-3 MIL-DTL-3786/4 Rotary Switch MIL-S-3786/4 | NSN 5930-01-107-2325

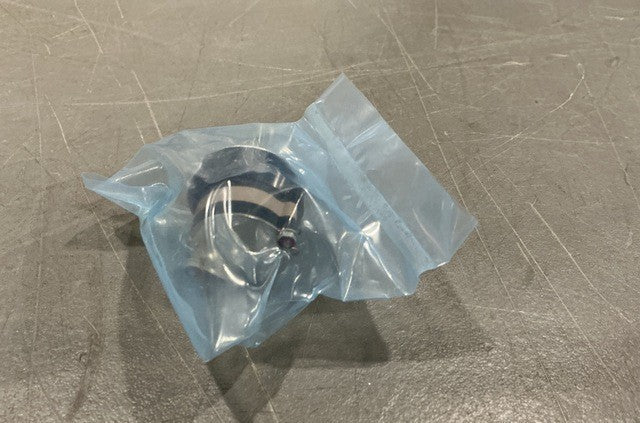

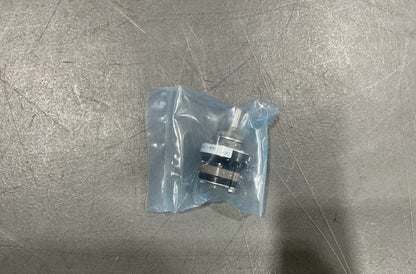

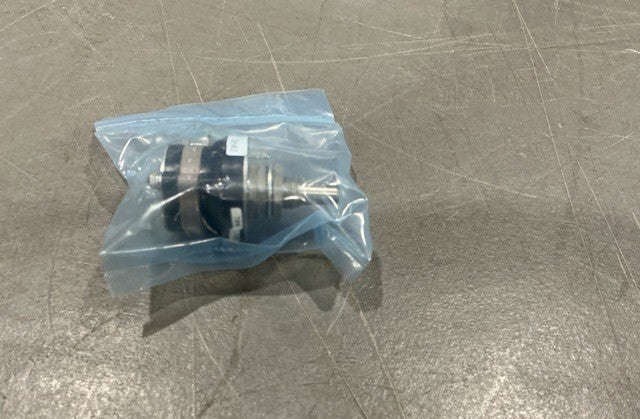

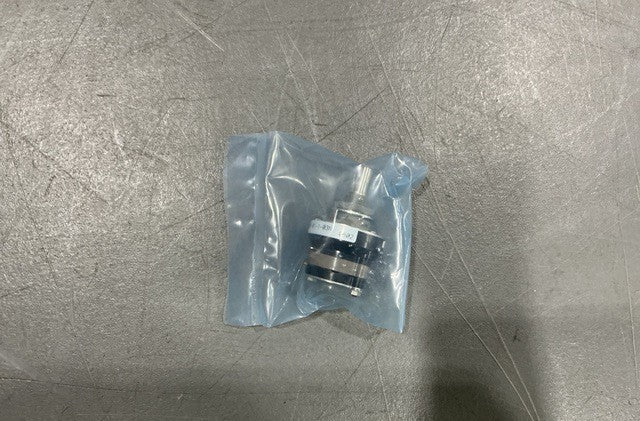

MIL-S-3786/4 Rotary Switch (NSN 5930-01-107-2325)

Explosion-proof rotary switch, single pole, triple throw, for P-3 Orion aircraft.

Part Information

• Design Control Activity: Military Specifications
• Part Number: MIL-S-3786/4
• NSN: 5930-01-107-2325
• End Item: P-3 Orion

Specifications

• Pole Quantity: 1
• Throw Quantity: 3
• Switch Actuator Indexing Position Quantity: 3
• Switch Actuator Positioning Increment: 30.0 degrees
• Contact Switching Action: Breaks before makes
• Contact Voltage Rating: 115.0V and 28.0V
• Contact Load Current: AC 75.0 mA resistive; DC 250.0 mA resistive, 100.0 mA inductive
• Operating Temp Range: -65.0C to 125.0C
• Mounting Method: Threaded bushing, 0.375 in, UNEF, Class 2A
• Shaft Type: Round, flatted
• Terminal Type: Tab, solder lug
• Overall Length: 1.899 in nominal
• Overall Diameter: 1.000 to 1.306 in
• Hazardous Location Protection: Explosion proof
