Aircraft Galaxy C-5 NAS561P12-24 Steel Spring Pin MS16562-79 5315-00-836-9642
Aircraft Galaxy C-5 NAS561P12-24 Steel Spring Pin MS16562-79 5315-00-836-9642
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5315-00-836-9642 Specs and cross-references for NSN 5315-00-836-9642 (opens in a new tab) ↗
HARVARD INDUSTRIES INC F52-077-375-1500 Spring Pin (5315-00-836-9642)

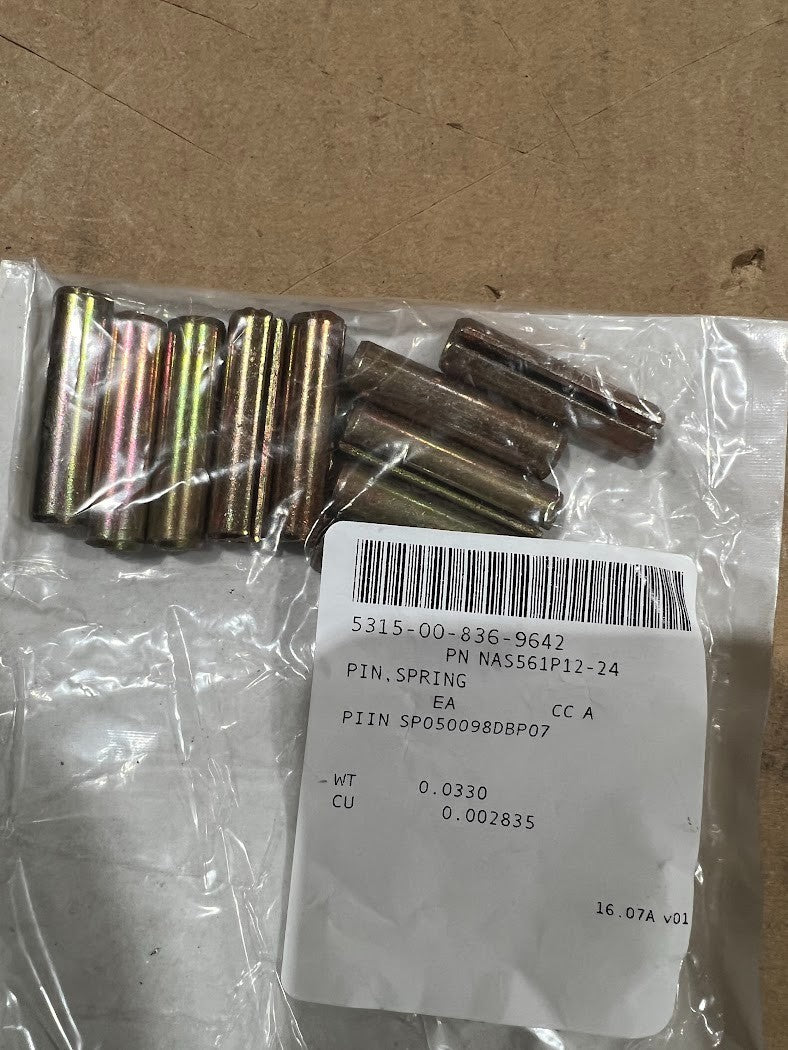

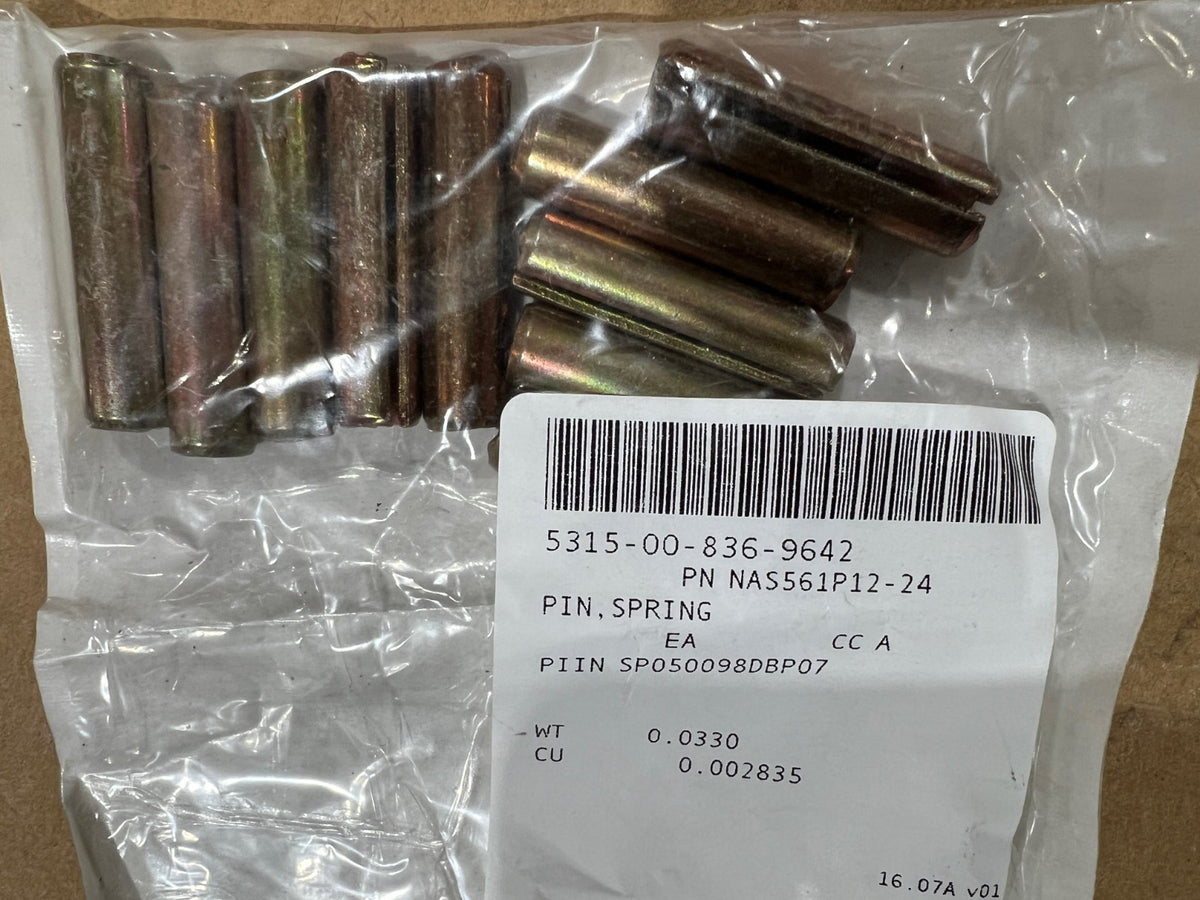

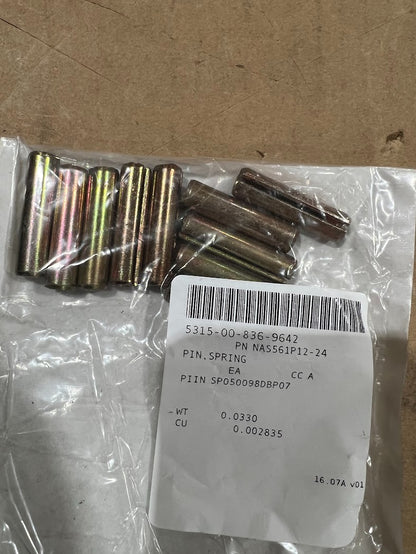

Steel spring pin, cadmium plated, for the C-5.
Part Information
- Manufacturer: Harvard Industries Inc
- Part Number: F52-077-375-1500
- NSN: 5315-00-836-9642
- End Item: C-5
Specifications
- Overall Length: 1.480–1.520 in
- Diameter: 0.385–0.392 in
- Material Thickness: 0.077 in nominal
- Hardness: Rockwell C 46.0–53.0
- Material: Steel, FED STD 66, CO-1070 thru 1095
- Surface Treatment: Cadmium, FED SPEC QQ-P-416, Type 2, Class 3
- Referenced Standards: MS16562-79; NAS561P12-24
