Aircraft F4S A102-4B 50EA Hexagon RH Machine Screw 99-9419562 5305-00-452-4887
Aircraft F4S A102-4B 50EA Hexagon RH Machine Screw 99-9419562 5305-00-452-4887
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5305-00-452-4887 Specs and cross-references for NSN 5305-00-452-4887 (opens in a new tab) ↗

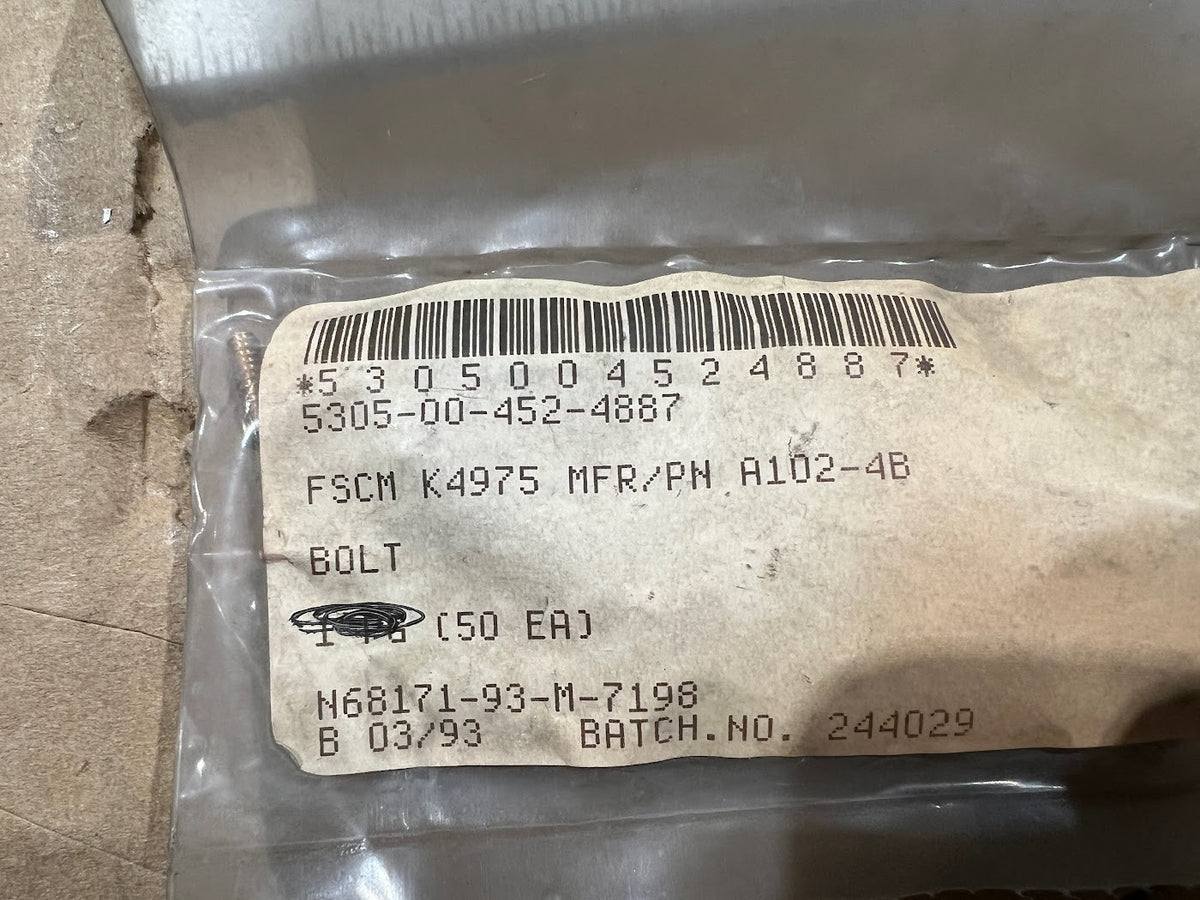

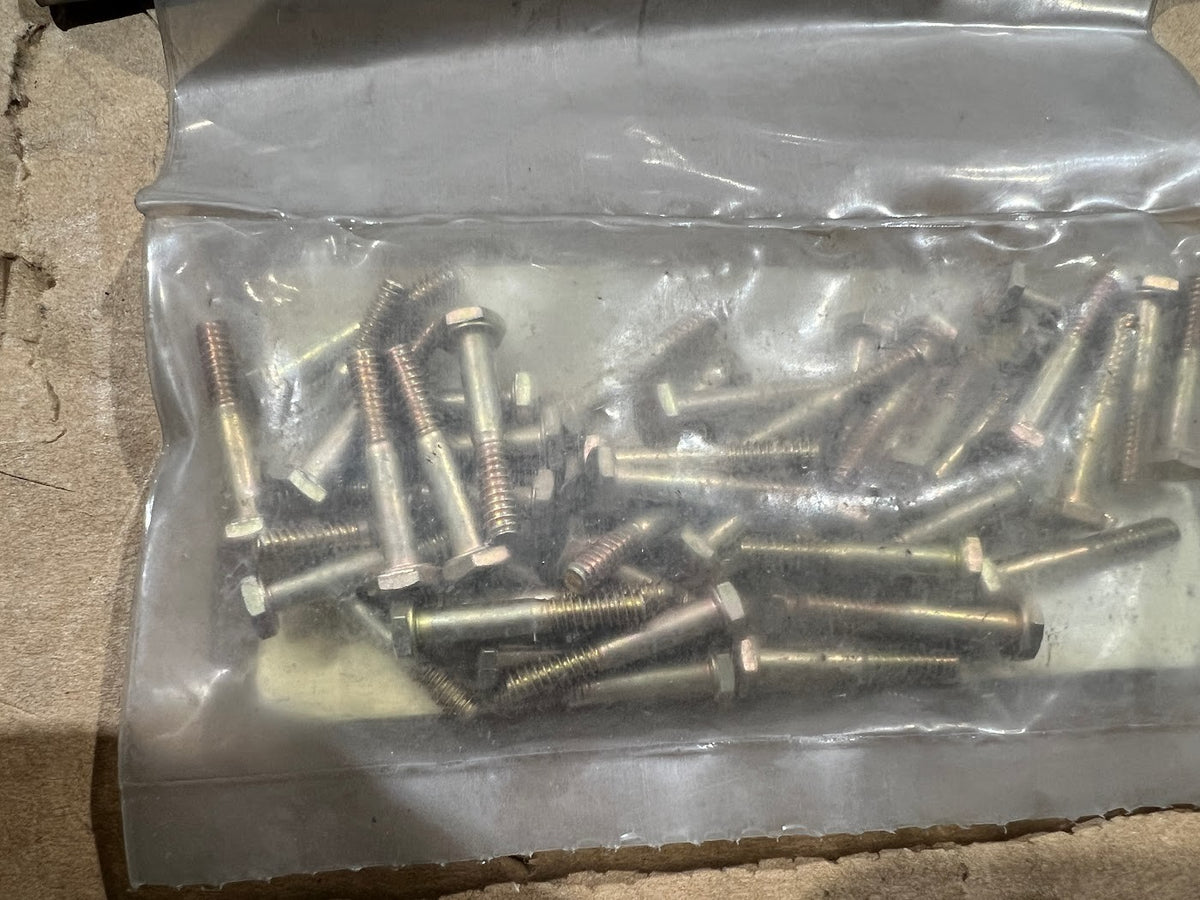

A102-4B Hexagon Machine Screw (5305-00-452-4887)
Steel hexagon machine screw, cadmium plated, UNC thread series, right-hand, Class 2A fit.
Part Information
- Part Number: A102-4B
- NSN: 5305-00-452-4887
- CAGE Code: BSI Standards Limited
Specifications
- Thread Class: 2A
- Thread Direction: Right-hand
- Thread Length: 0.307 in. min – 0.440 in. max
- Fastener Length: 0.800 in. min – 0.840 in. max
- Head Height: 0.075 in. min – 0.085 in. max
- Width Between Flats: 0.245 in. min – 0.250 in. max
- Nominal Thread Diameter: 0.138 in.
- Threads Per Inch: 32
- Thread Series: Unified National Coarse (UNC)
- Material: Steel
- Surface Treatment: Cadmium
