AIRCRAFT F/A-18F SUPER HORNET HLT252DL-6-7 PIN-RIVET AICL76737 5320-01-144-7408

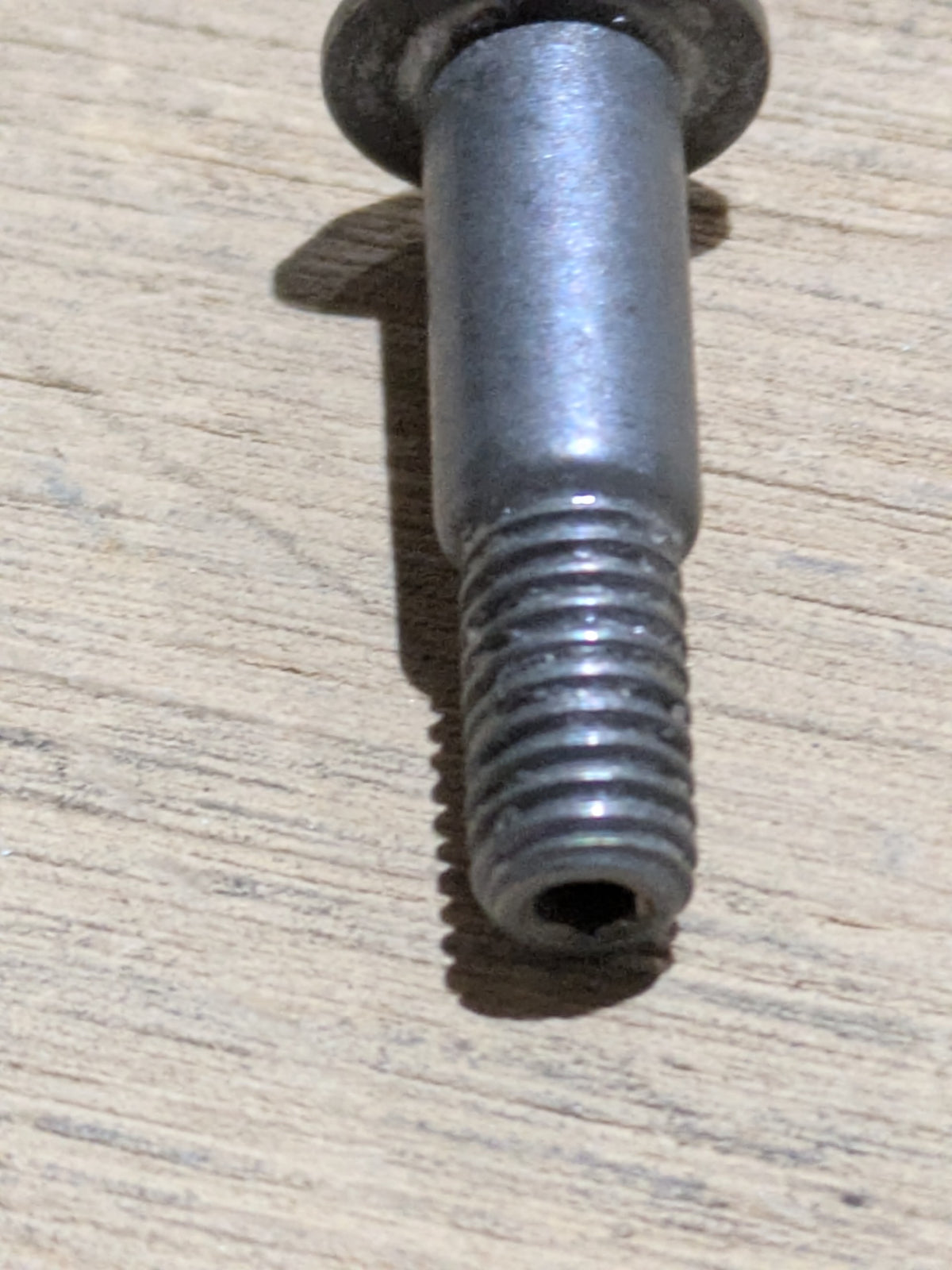

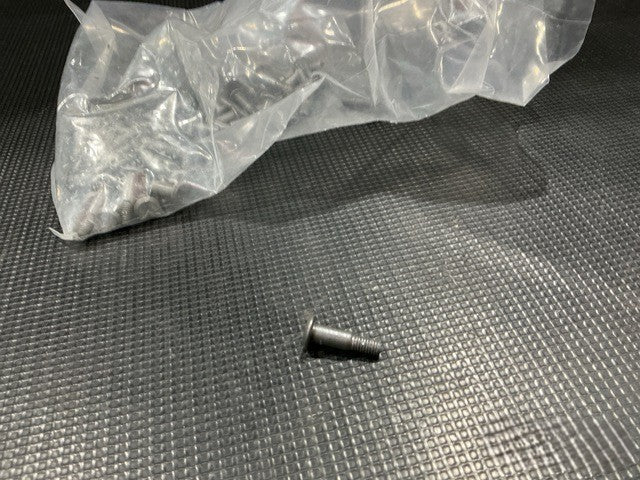

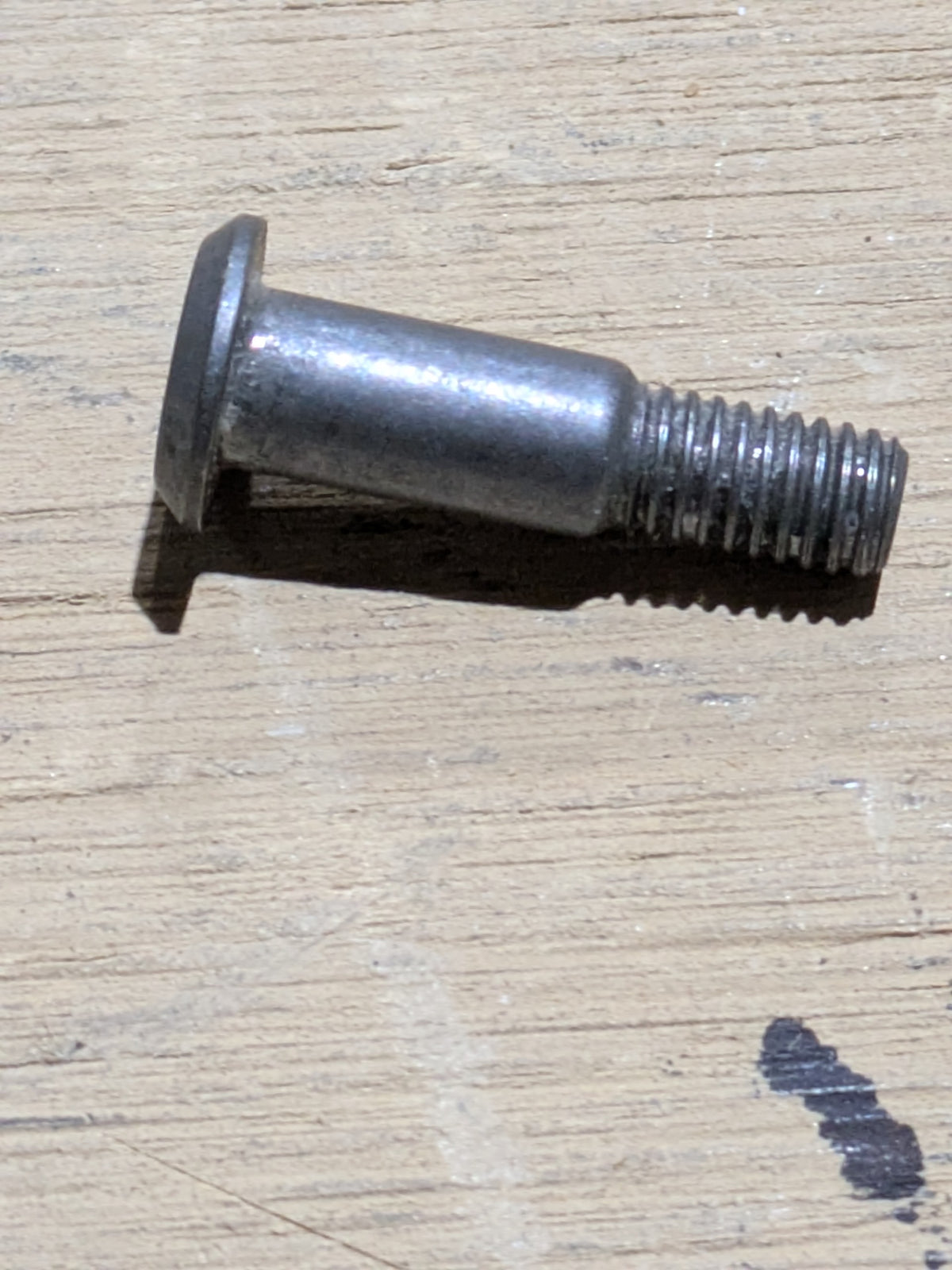

HOWMET HLT252DL-6-7 Pin-Rivet (5320-01-144-7408)

Steel pin-rivet, UNJF threaded, for the F/A-18F Super Hornet aircraft.

Part Information

• Manufacturer: Howmet Global Fastening Systems Inc
• Part Number: HLT252DL-6-7
• NSN: 5320-01-144-7408
• End Item: F/A-18F Super Hornet

Specifications

• Material: Steel Comp XM-13 (A-S 5629)
• Surface Treatment: Passivate (QQ-35)
• Thread Class: 3A, Right-Hand
• Thread Series: Unified National Joint Fine (UNJF)
• Nominal Thread Size: 0.190 in, 32 threads/in
• Shank Diameter: 0.2177–0.2182 in
• Fastener Length: 0.788–0.808 in
• Head Height: 0.064–0.074 in
• Head Major Diameter: 0.370–0.390 in
• Width Between Flats: 0.0791–0.0806 in
• Grip Length: Max 0.443 in
• Shear Strength: 125,000 PSI (single)
• Lubrication: Solid film, dry film, cetyl alcohol
