AIRCRAFT F-5 FREEDOM FIGHTER 14-52302-3 COMPRESSION HELICAL SPRING 5360-00-432-9768

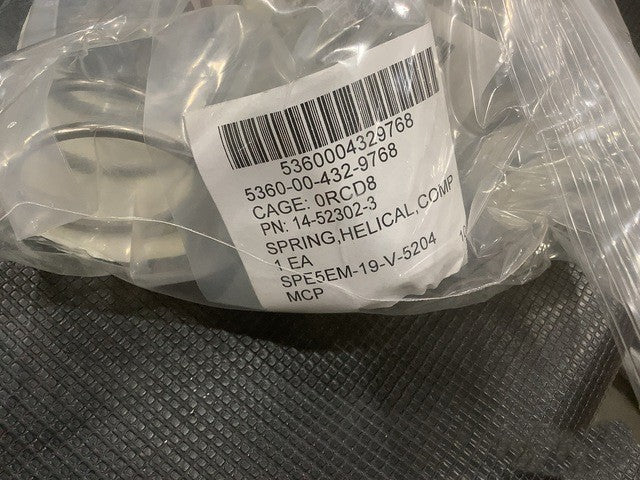

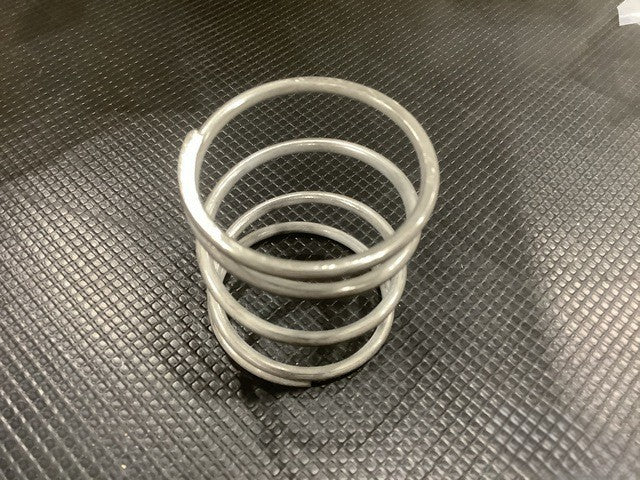

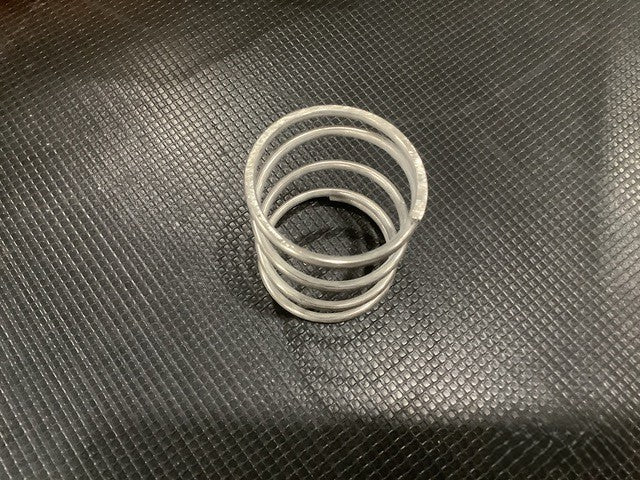

NORTHROP GRUMMAN SYSTEMS CORPORATION 14-52302-3 Helical Compression Spring (5360-00-432-9768)

Steel Comp 302 helical compression spring, 1.580 in. nominal inside diameter, 2.000 in. free length, for the F-5 Freedom Fighter.

Part Information

• Manufacturer: Northrop Grumman Systems Corporation
• Part Number: 14-52302-3
• NSN: 5360-00-432-9768
• End Item: F-5 Freedom Fighter

Specifications

• Inside Diameter: 1.580 in. nominal
• Free Length: 2.000 in. nominal
• Coil Quantity: 5
• Solid Length: 0.550 in. nominal
• Coil Helix Direction: Right-hand or left-hand
• Deflection Rate: 20.000–30.000 lbs/in
• Free Outside Diameter: 1.820 in. nominal
• Material: Steel Comp 302 (Fed Spec A-S 5688)
• Surface Treatment: Passivate (MFR REF F79, Northrop)
