AIRCRAFT F-15 LENZ FCS-557 FILLER STRAINER BREATHER CAP LA-1438-1 2940011173679

PETTIBONE LLC LA-1438-1 Filler Cap Assembly (2940-01-117-3679)

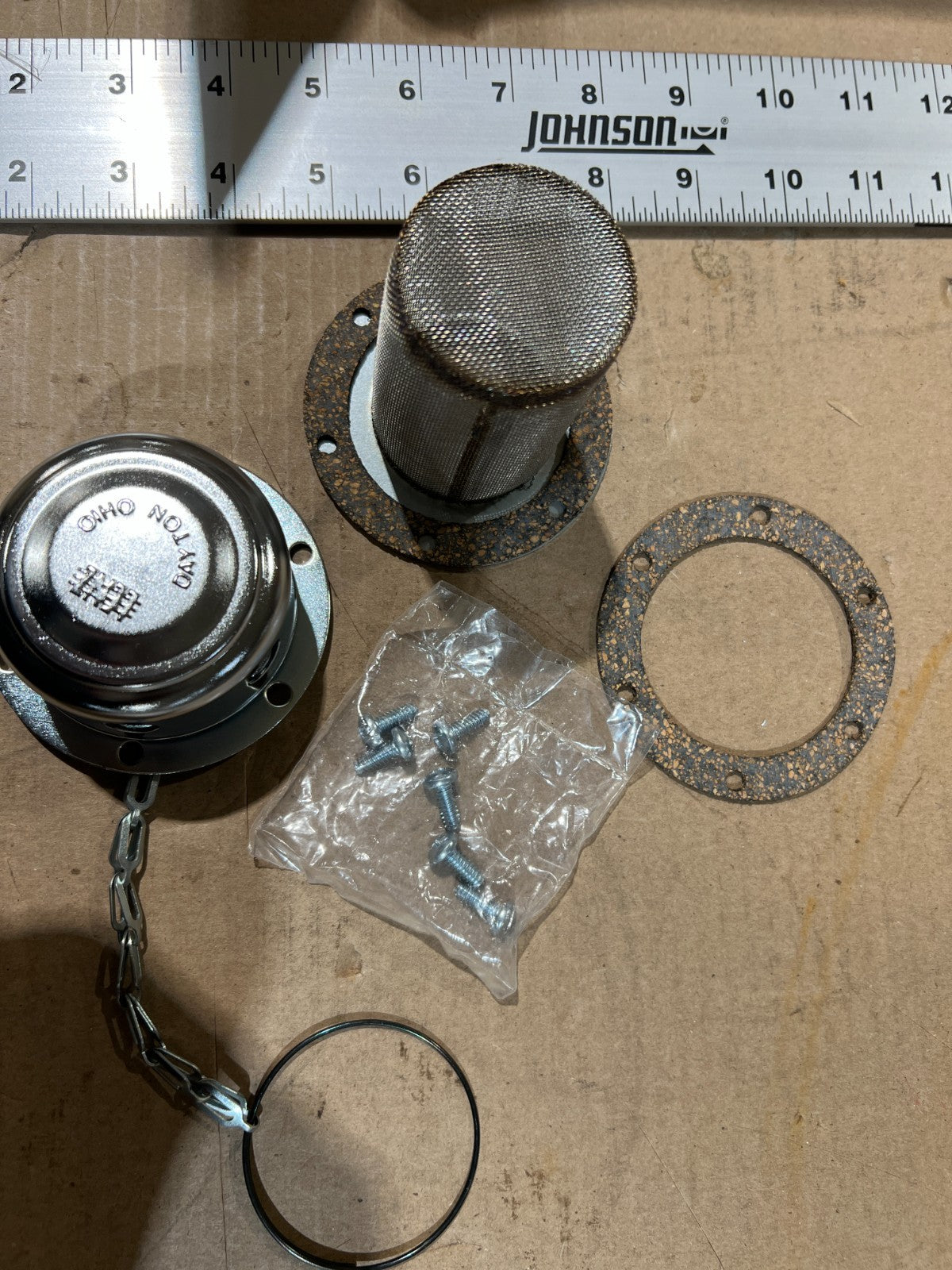

No. 5 non-vented filler cap assembly kit with cadmium plated safety chain, nickel plated close neck filler flange, and brass wire strainer, for Pratt & Whitney R-1340, R-1830, R-2000, R-2800, R-4360, R-985 reciprocating engines.

Part Information

• Manufacturer: Pettibone LLC
• Part Number: LA-1438-1
• NSN: 2940-01-117-3679
• End Item: Pratt & Whitney R-1340, R-1830, R-2000, R-2800, R-4360, R-985 Reciprocating Engines

Specifications

• Cap: No. 5 non-vented, 2.500 in. OD, 0.718 in. high
• Safety chain: cadmium plated
• Filler flange: close neck, nickel plated, 6 holes on 2.875 in. bolt circle dia
• Gaskets: 2 ea heavy duty oil resistant fiber
• Strainer: 3.000 in. high, 1.938 in. dia, 30 mesh brass wire
• Hardware: 6 ea 10-24 self-tapping screws
• Overall height after installation: 4.000 in.
• Flow rating: 40 GPM or 5.3 CFM air flow
• Filtration: particles as small as 40 microns

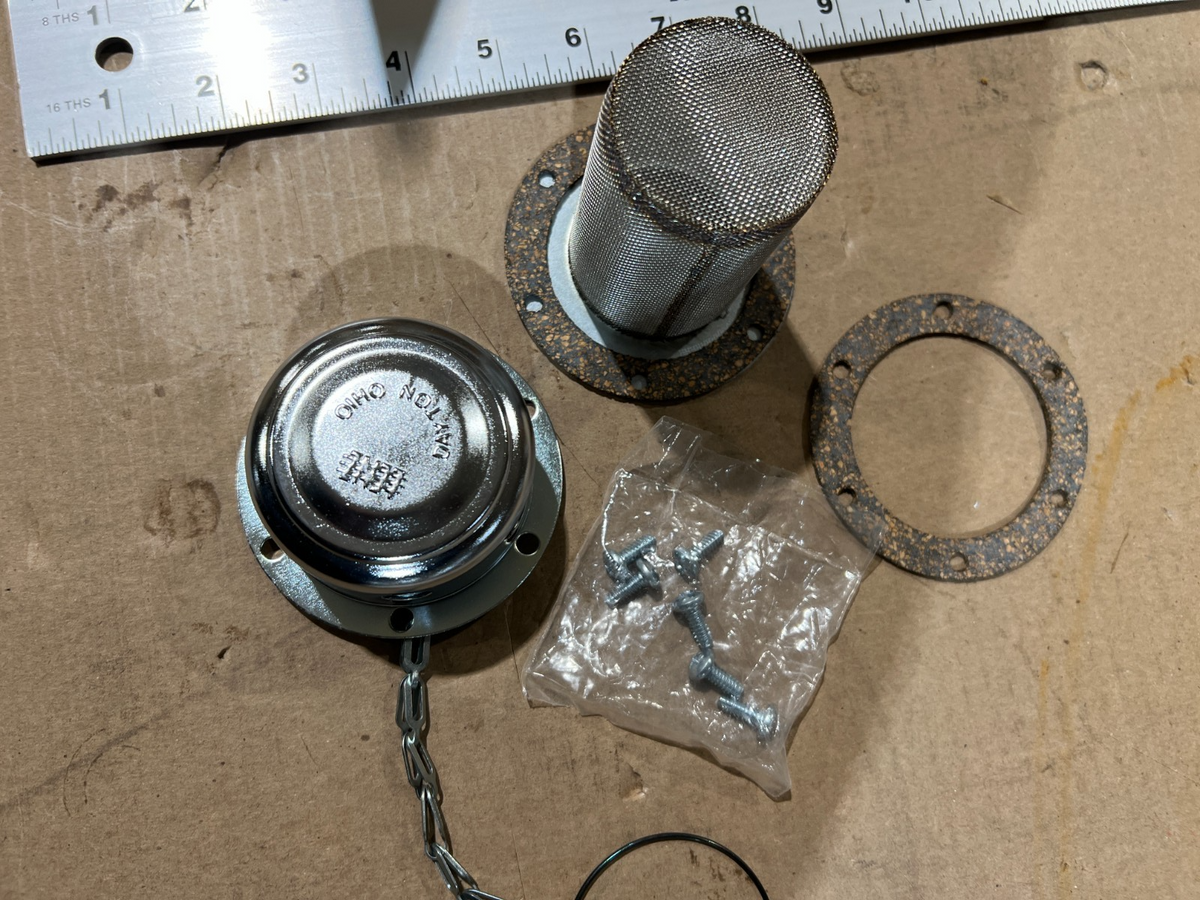

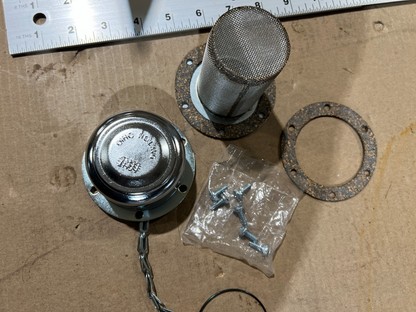

Included Components

• Filler cap with safety chain
• Filler flange
• 2 gaskets
• Strainer with mounting screws

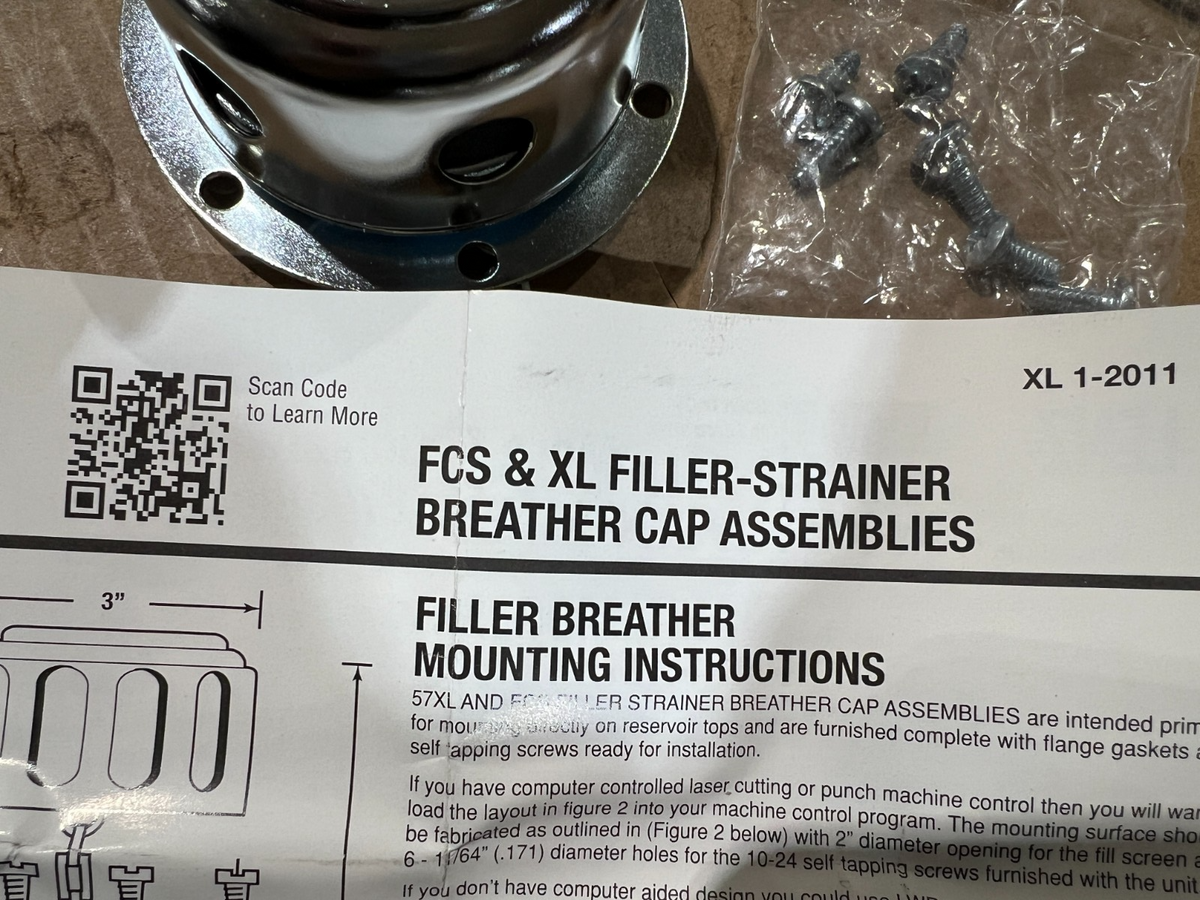

• Installation instructions and drilling template
