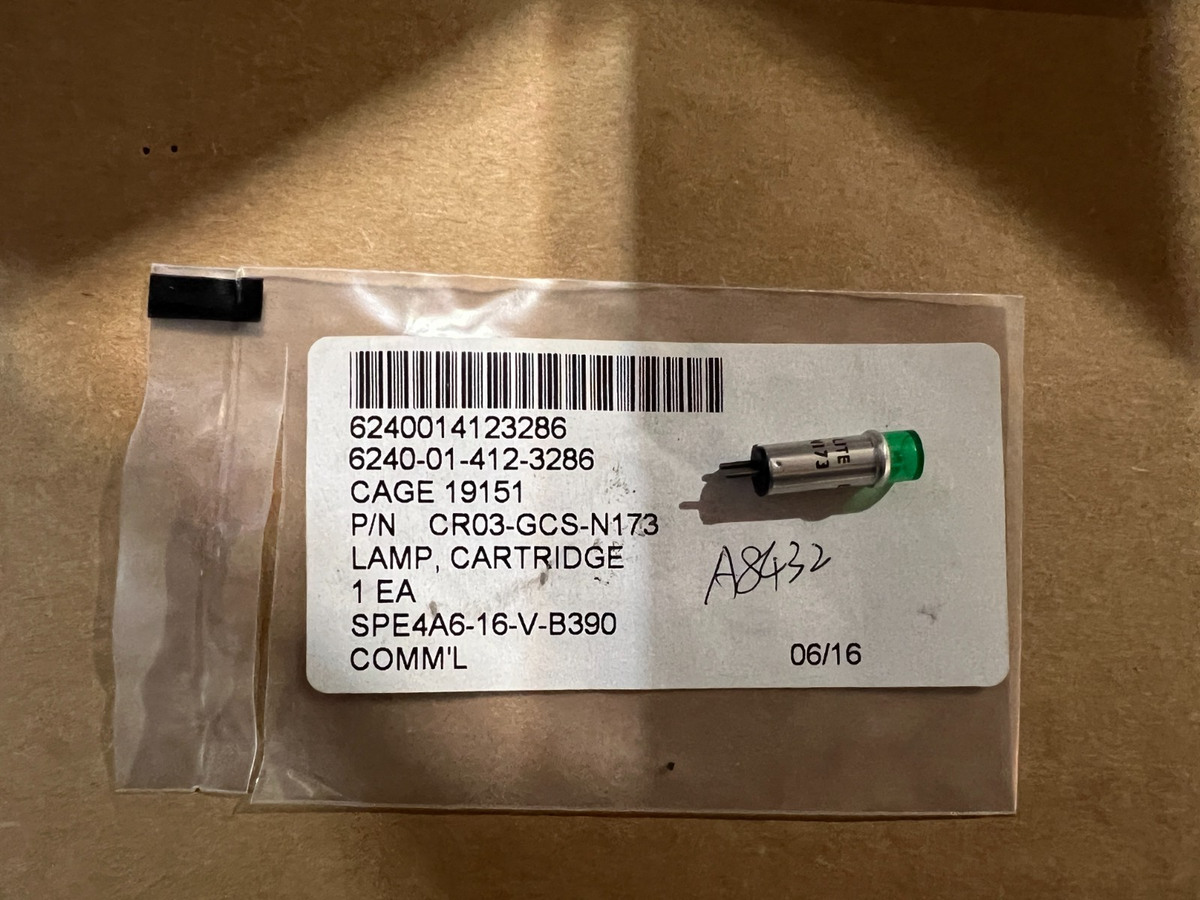

• Cartridge Lamp CR03-GCS-N173 NSN 6240-01-412-3286

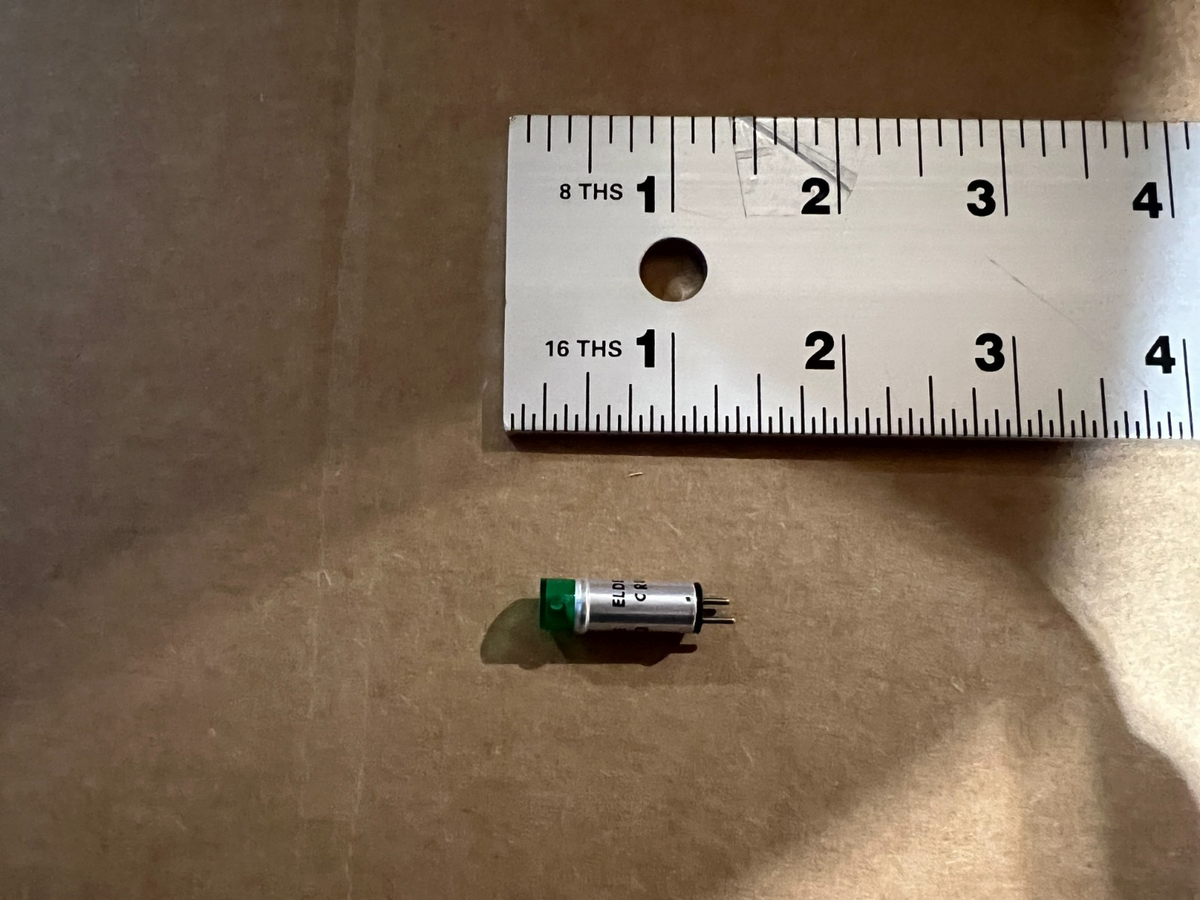

  • Cartridge Lamp CR03-GCS-N173 NSN 6240-01-412-3286 - photo 2

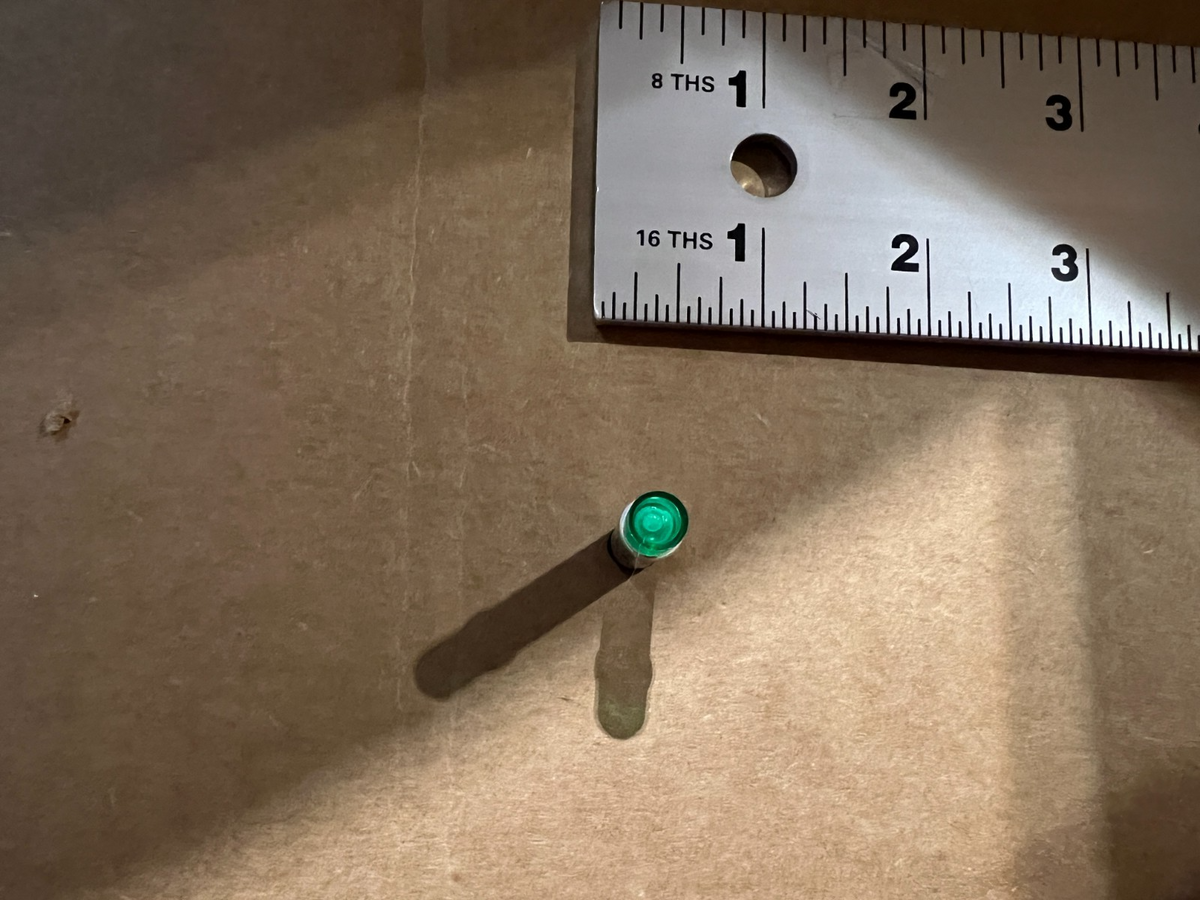

  • Cartridge Lamp CR03-GCS-N173 NSN 6240-01-412-3286 - photo 3
1 3

SECO Parts and Equipment

AIRCRAFT EAGLE F-15 CR03-GCS-N173 CARTRIDGE LAMP CR-S-N173 6240-01-412-3286 USA

AIRCRAFT EAGLE F-15 CR03-GCS-N173 CARTRIDGE LAMP CR-S-N173 6240-01-412-3286 USA

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.

NSN 6240-01-412-3286 Specs and cross-references ↗

Spectrum Control CR03-GCS-N173 Cartridge Lamp (6240-01-412-3286)

Glow-type cartridge lamp with green lens, for the F-15.

Part Information

  • Manufacturer: Spectrum Control, Inc.
  • Part Number: CR03-GCS-N173
  • NSN: 6240-01-412-3286
  • End Item: F-15

Specifications

  • Lens Color: Green
  • Cartridge Overall Length: 1.140 in max
  • Cartridge Overall Diameter: 0.320–0.340 in
  • Primary Lamp Type: Glow
  • Light Intensity Level: High
  • Average Life Rating: 25,000 hours
  • Lens Light Transmission: Transparent
  • Filling Gas Type: Neon
  • Gas Striking Voltage: First Voltage AC Nominal 110.0; Second Voltage DC Nominal 150.0
  • Resistor Rating: 33 kilohms, internal
View full details
