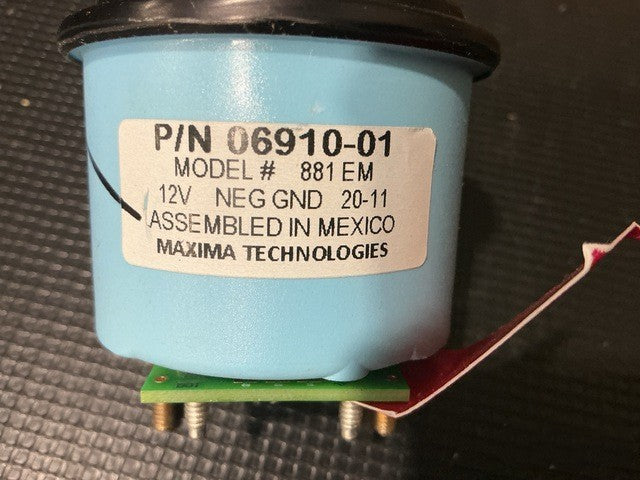

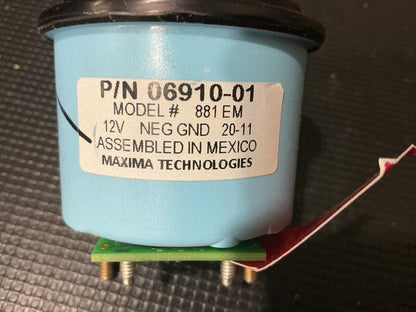

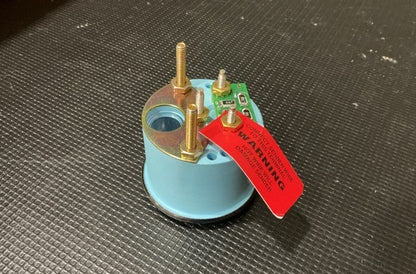

AIRCRAFT E3A AWACS KAMPI 06910-01 DIAL INDICATING PRESSURE GAGE 6685-01-028-0526

TRIUMPH CONTROLS 40263 Dial Indicating Pressure Gage (6685-01-028-0526)

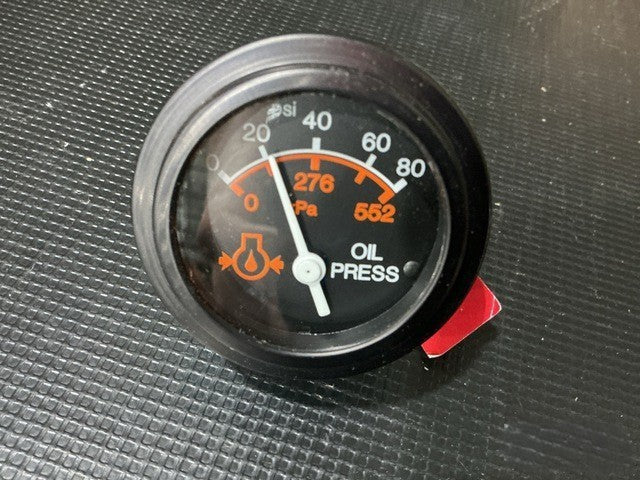

Dial indicating oil pressure gage, 0-80 PSI scale, 2 inch dial, clamp mount, for the E-3A AWACS aircraft.

Part Information

• Manufacturer: Triumph Controls, LLC
• Part Number: 40263
• NSN: 6685-01-028-0526
• End Item: AIRCRAFT,AWACS,E-3A; SUPPORT EQUIPMENT,E-3A AIRCRAFT

Specifications

• Overall Depth: 1.970 in. nominal
• Overall Diameter: 2.380 in. nominal
• Dial Size: 2 inch dia
• Mounting Hole Diameter: 0.212 in. nominal
• Mounting Hole Quantity: 3

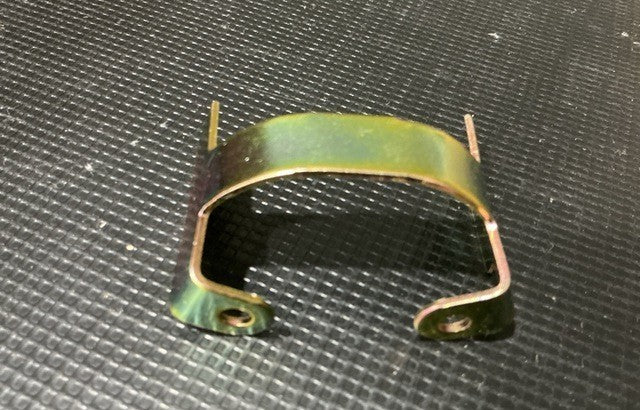

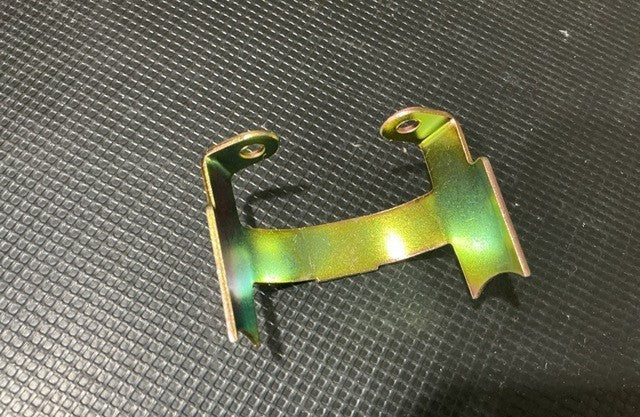

• Mounting Method: Clamp
• Adjustability: Nonadjustable
• Scale Range: 0.0 to 80.0 PSI
• Scale Name: Oil Pressure
• Scale Type: Arc
• Scale Marking: Oil
• Scale Inscription/Background Color: White markings on black background
• Pointer Type: Indicating
• Pointer Color: White
• Connection Quantity: 1
• Connection Type: External
• Connection Size: 0.250 in. dia
• Connection Location: Back, center
• Bezel Type: Crimp
• Material: Case - Steel
• Surface Treatment: Case - Chromium
