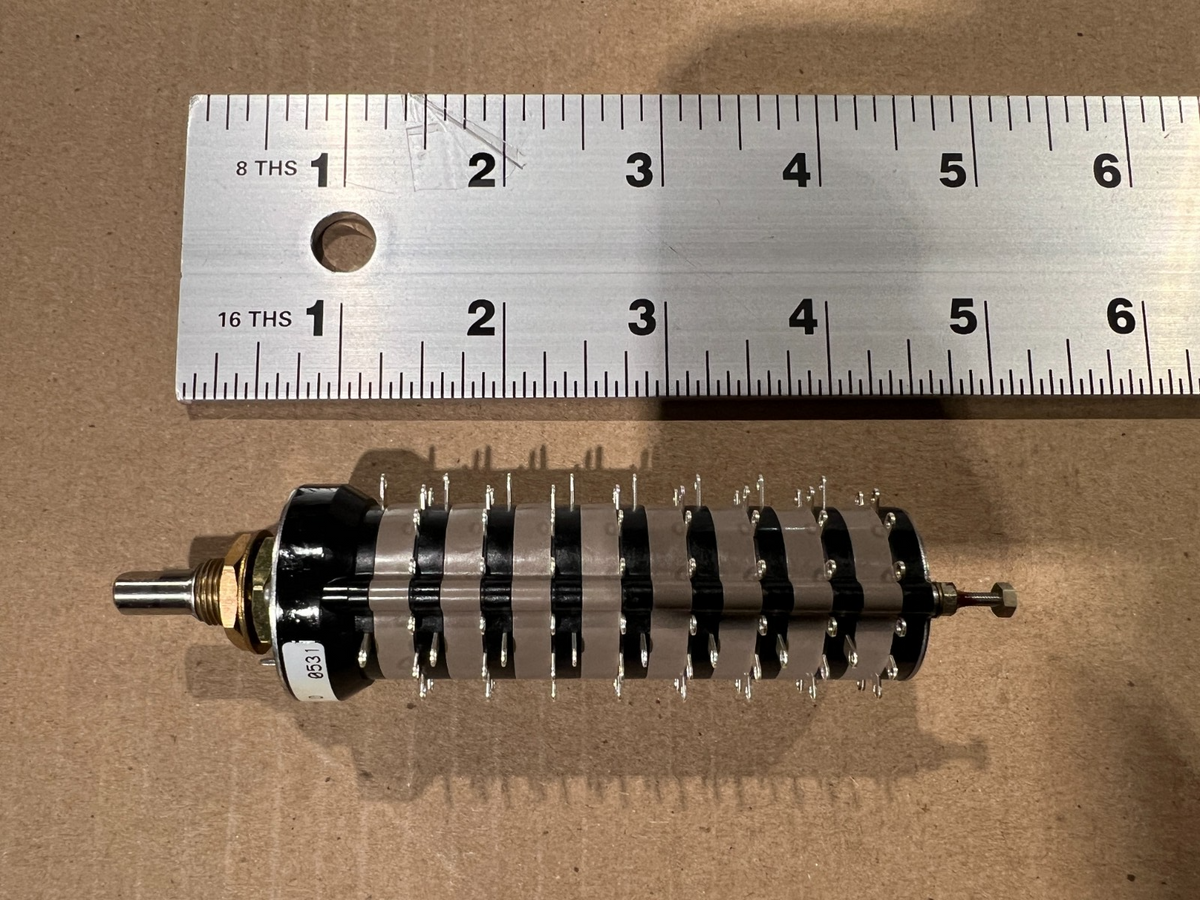

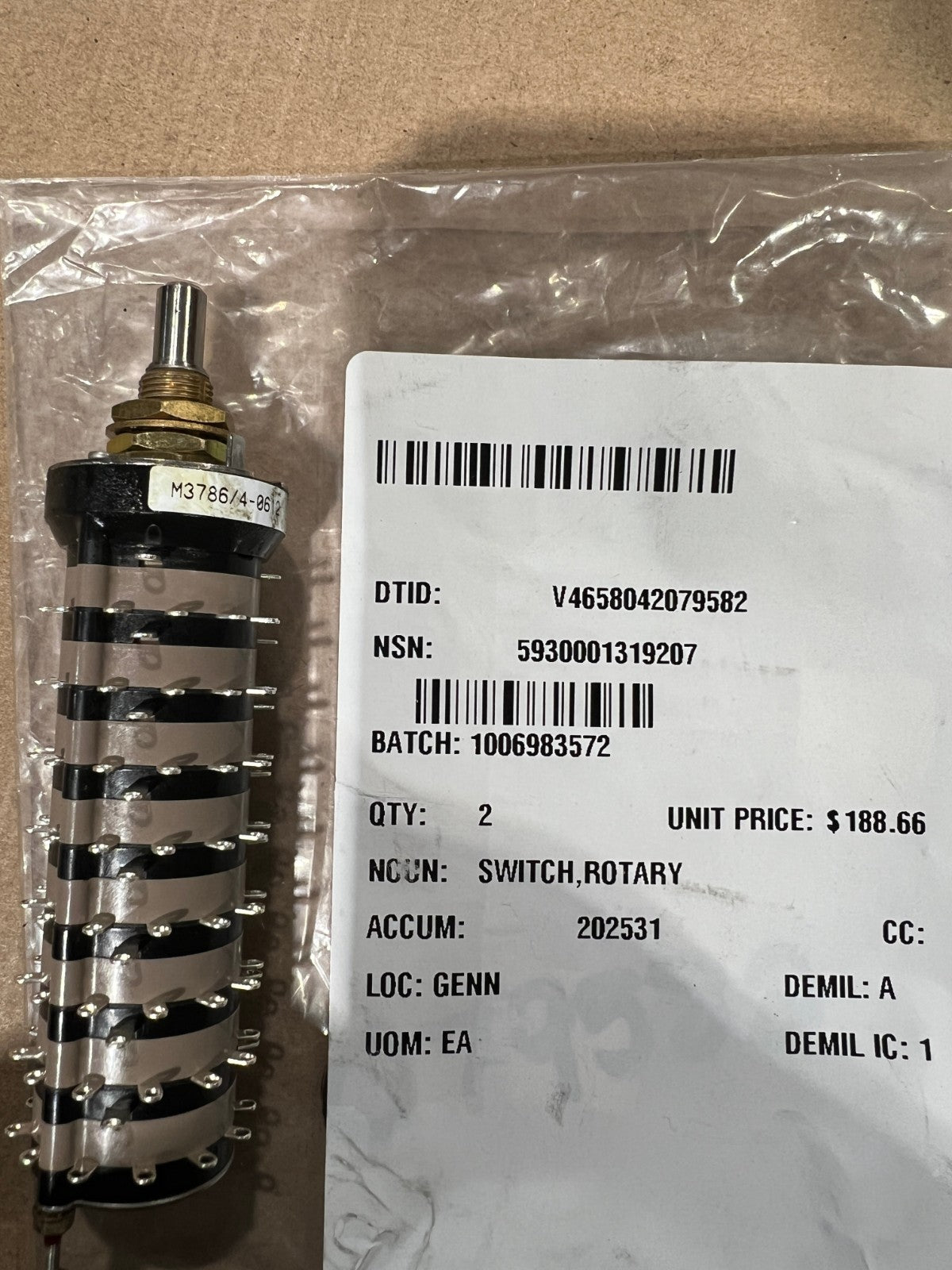

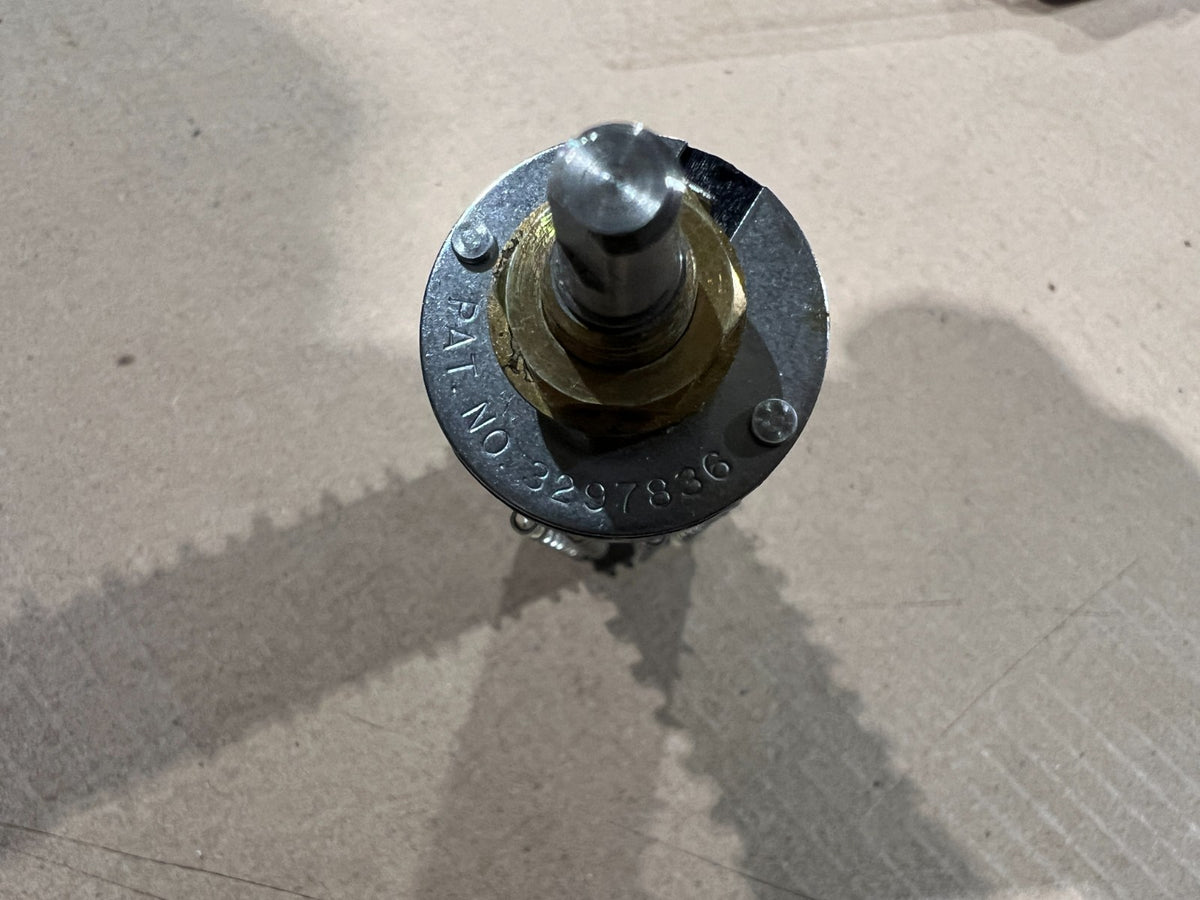

JANCO CORPORATION 4M30EB3-8N4 Rotary Switch (5930-00-131-9207)

Explosion-proof rotary switch, 3-pole 4-throw, rated 115V AC / 28V DC, for the E3A AWACS.

Part Information

• Manufacturer: Janco Corporation
• Part Number: 4M30EB3-8N4
• NSN: 5930-00-131-9207
• End Item: E3A AWACS

Specifications

• Thread Class: 2A, UNEF, Nominal Size 0.375 in
• Overall Length: 4.321 in nominal
• Overall Diameter: 1.000–1.306 in
• Shaft: Round, Flatted, 0.250 in dia, 0.437 in length
• Pole Quantity: 3; Throw Quantity: 4
• Switch Actuator Positioning Increment: 30° (4 positions)
• Detent Rotational Torque Range: 1.750–7.000 in-lb
• Contact Voltage Rating: 115.0V / 28.0V
• Contact Load Current Rating: AC 75 mA resistive; DC 250 mA resistive / 100 mA inductive
• Operating Temp Range: -65.0°C to 85.0°C
• Hazardous Location Protection: Explosion Proof
• Terminal Type: Tab, Solder Lug
• Specification/Standard: 81349-IL-S-3786 TO 4
