Abrams M-1 Tank Beta Engineering 12345914 Metal Tube Assembly | NSN 4710-01-308-1635
Abrams M-1 Tank Beta Engineering 12345914 Metal Tube Assembly | NSN 4710-01-308-1635
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4710-01-308-1635 Specs and cross-references for NSN 4710-01-308-1635 (opens in a new tab) ↗

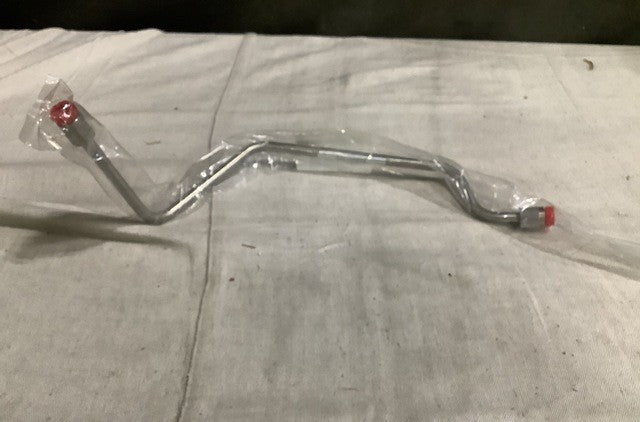

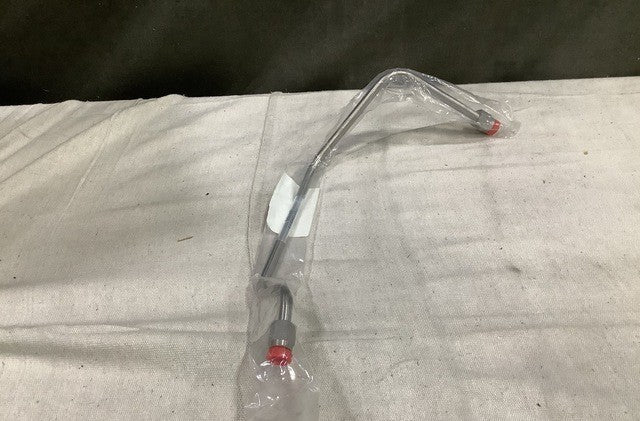

TACOM 12345914 Tube Assembly, Metal (NSN 4710-01-308-1635)

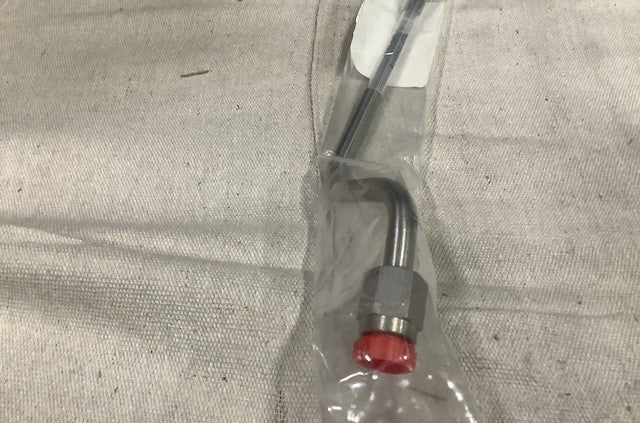

Prebent steel corrosion-resisting tube assembly with threaded end connections on both ends.
Part Information
- Manufacturer: U.S. Army Tank Automotive Command (TACOM)
- Part Number: 12345914
- NSN: 4710-01-308-1635
Specifications
- Design Form: Prebent
- Tube Outside Diameter: 0.375 in nominal
- Mating End Quantity: 2
- Thread Class: 3B
- Thread Direction: Single end, right-hand
- Thread Series: UNJF (Unified National Joint Fine)
- Nominal Thread Size: 0.562 in (single end)
- Seat Angle: 33.0 degrees
- Material: Steel, corrosion resisting (tubing and single end)
- Tubing Material Spec: MIL-T-8808
- End Connection Spec: MIL-MS20819, P/N MS20819-6; General Dynamics SC-X15521
