SECO Parts and Equipment
Abrams M-1 Military Tank 12344467 Pillow Block Cap 3130-01-311-1681 USA Stock
Abrams M-1 Military Tank 12344467 Pillow Block Cap 3130-01-311-1681 USA Stock
Regular price
$237.61 USD
Regular price
Sale price
$237.61 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3130-01-311-1681 Specs and cross-references for NSN 3130-01-311-1681 (opens in a new tab) ↗

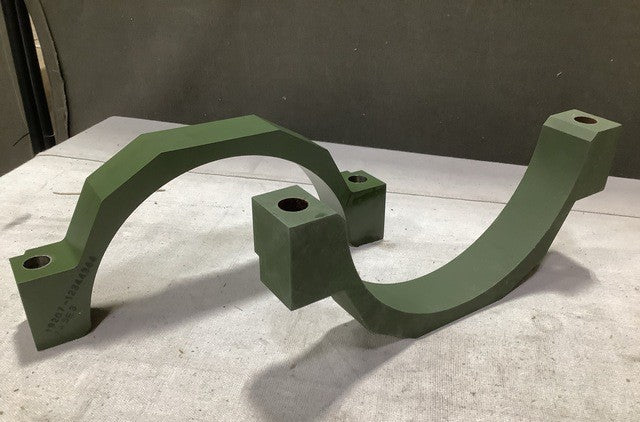

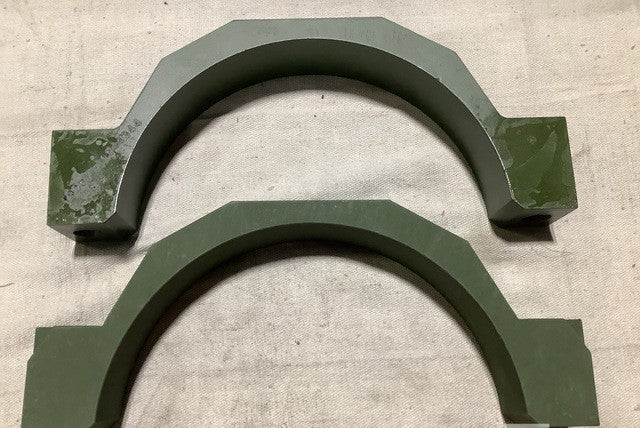

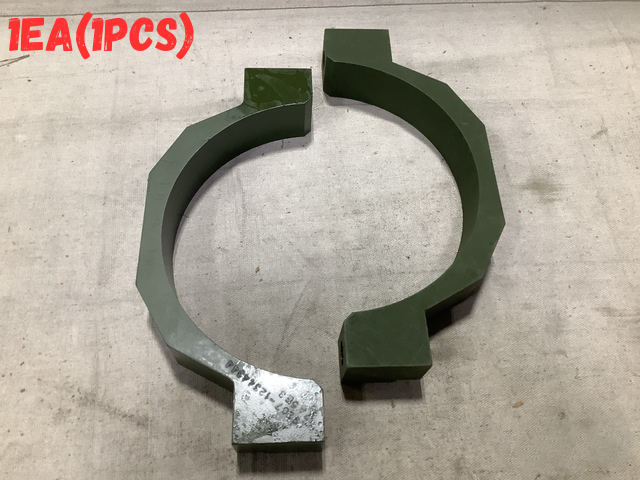

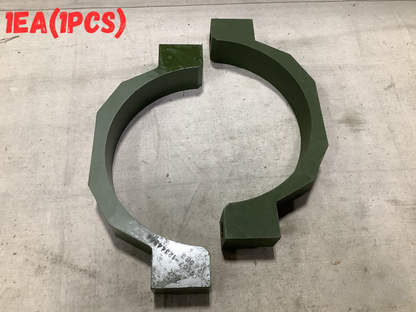

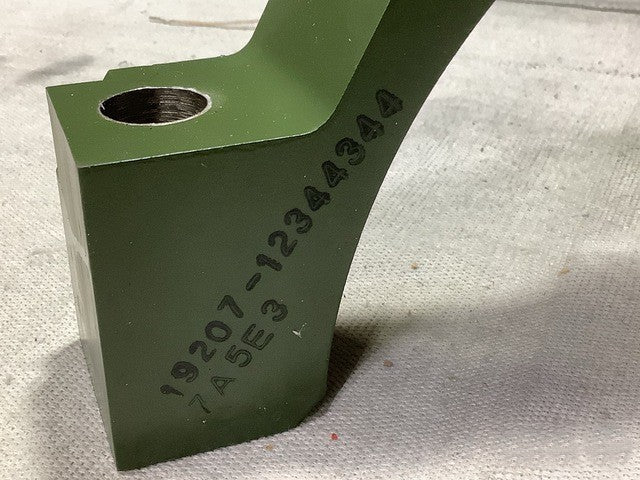

U S ARMY TACOM 12344467 Pillow Block Cap (NSN 3130-01-311-1681)
Steel pillow block cap designed to house a removable bearing and retain lubricant.
Part Information
- Manufacturer: U S Army Tank Automotive Command
- Part Number: 12344467
- NSN: 3130-01-311-1681
Specifications
- Material: Steel per ASTM A36
- Finish: Polyurethane topcoat per MIL-C-46168 or MIL-C-53039 (all surfaces except holes)
- Cleaning: Per TT-C-490 Type 1 or 3
- Dimensions: 12.00 in. L x 5.00 in. H x 1.75 in. Thk
- Bearing half hole diameter: 9.004–9.008 in.
- Mounting holes: Two, 0.688 in. dia., 10.750 in. center-to-center
