AAVC7A1 Assault Amphibious Tank 2619266 Metal Tube Assembly | NSN 4710-01-113-3434 USA

AAVC7A1 Assault Amphibious Tank 2619266 Metal Tube Assembly | NSN 4710-01-113-3434 USA

$78.14 USD
$78.14 USD
Sale Sold out
Shipping calculated at checkout.

NSN 4710-01-113-3434 Specs and cross-references ↗

NAVAL SHIP SYSTEMS COMMAND 2619266 Metal Tube Assembly (NSN 4710-01-113-3434)

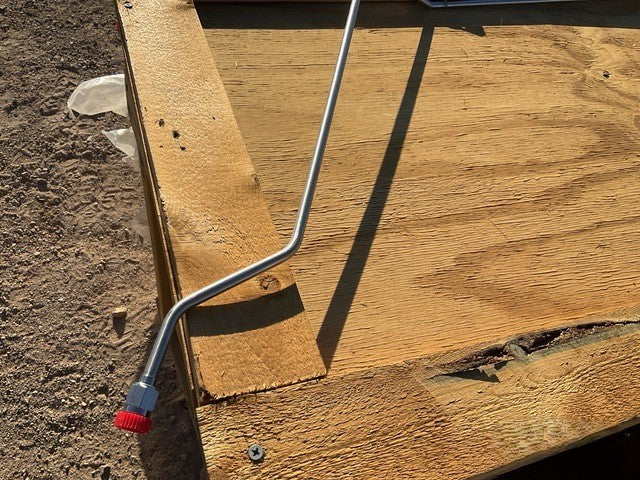

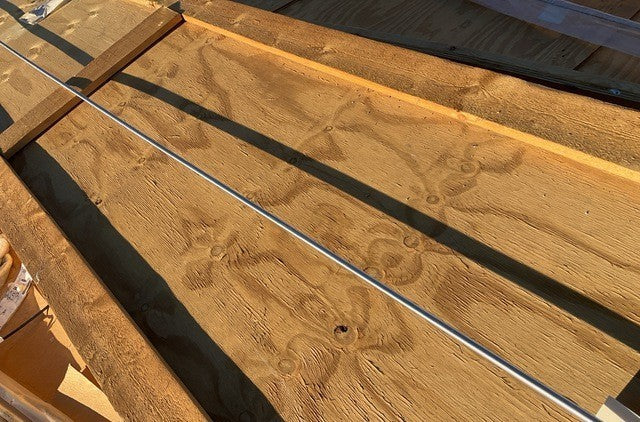

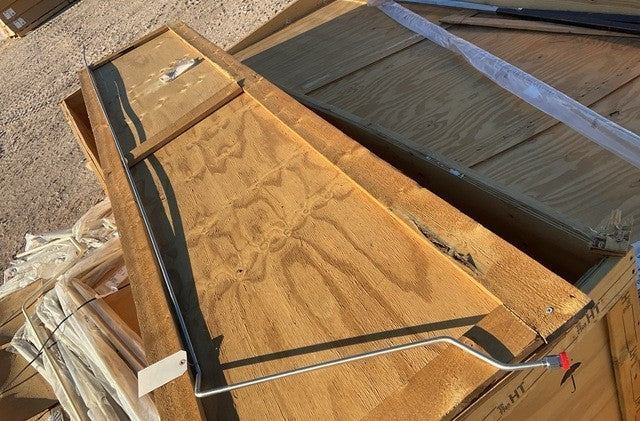

Prebent steel tube assembly with single-end right-hand threaded fitting.

Part Information

  • Manufacturer: Naval Ship Systems Command

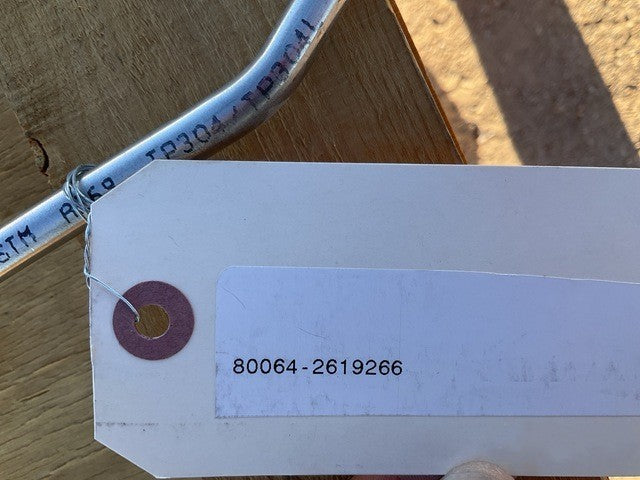

  • Part Number: 2619266
  • Cross-Reference: 2619266G001
  • NSN: 4710-01-113-3434

Specifications

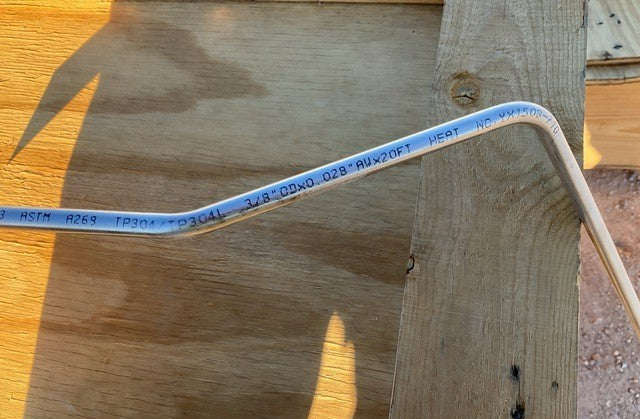

  • Tube OD: 0.375 in nominal
  • Wall Thickness: 0.028 in nominal
  • Material: Steel Comp 304 (tubing and end fitting)
  • Thread: UNJF, 0.562 in nominal, Class 3B, single end right-hand
  • Seat Angle: 37°
  • Mating End Quantity: 2
  • End Connection Spec: MS20819-6K / AN818-6K
  • Material Spec: MIL-T-6845 or MIL-T-8504
