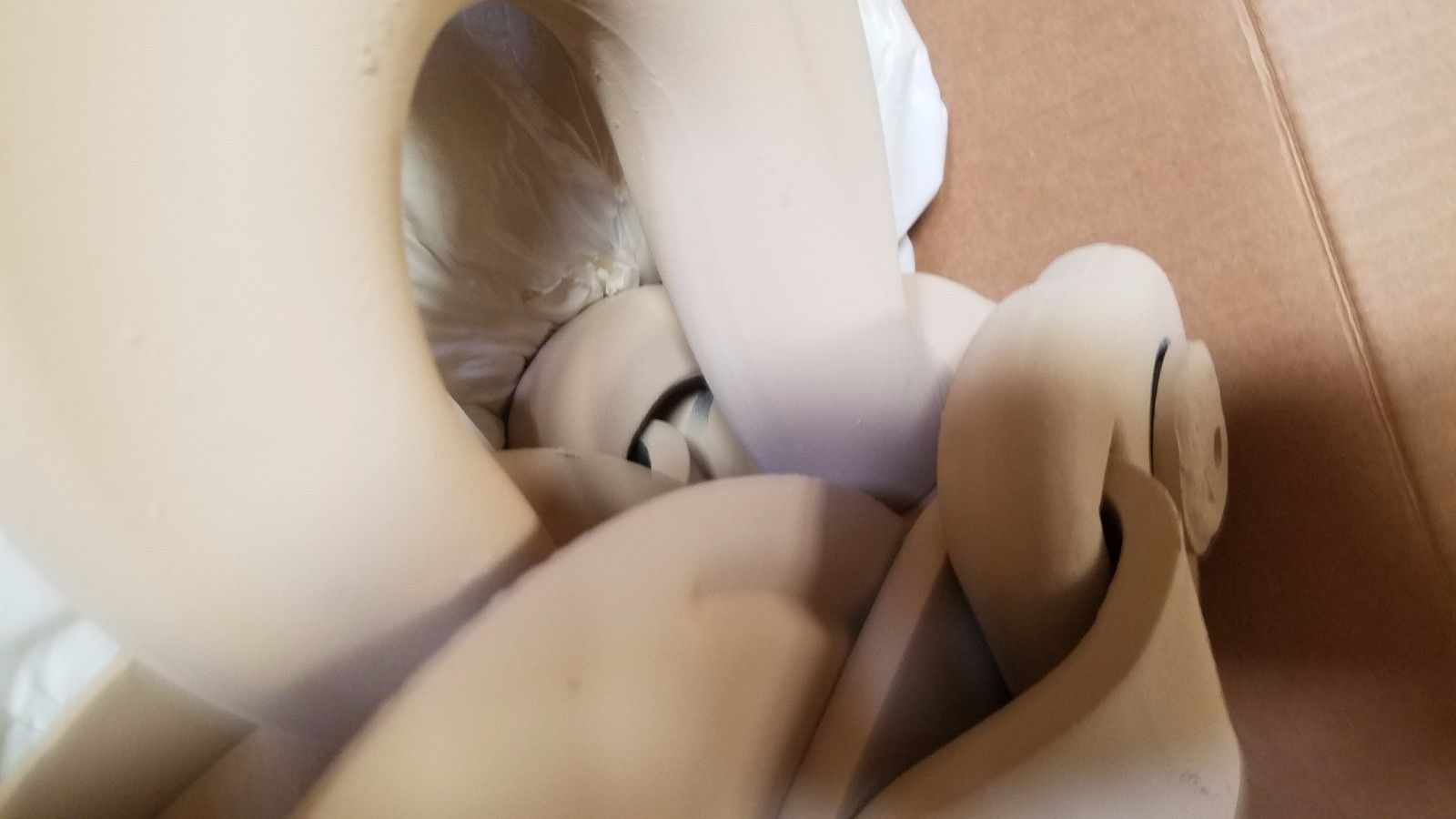

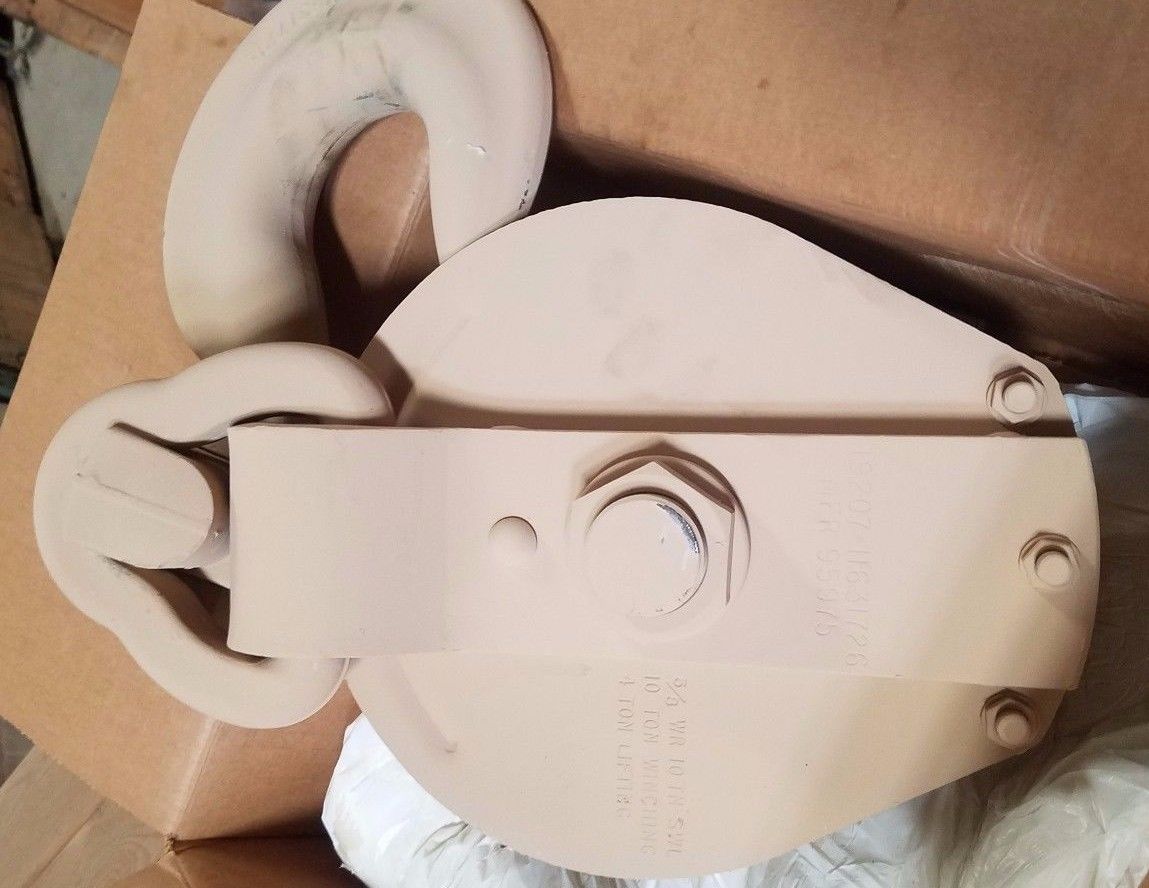

8 Inch Block and Tackle w/ Hook 10 Ton 20,000 Pounds, Military Truck Heavy Duty
New Block and Tackle Heavy Duty Military Truck
8 Inch Single Sheave 5/8 Cable
| BEARING TYPE | PLAIN |
| III END ITEM IDENTIFICATION | MRAP |
| MAXIMUM LOAD RATING | 20000.0 POUNDS |
| BLOCK TYPE | SNATCH |
| LOCKING STYLE | SAFETY LOCKING |
| TACKLE ACCOMMODATED TYPE | WIRE ROPE |
| ANTITOPPLING DEVICE | NOT INCLUDED |
| SHEAVE OUTSIDE DIAMETER | 8.000 INCHES NOMINAL |
| CENTER PIN DIAMETER | 2.502 INCHES MINIMUM AND 2.503 INCHES MAXIMUM |
| SHEAVE BEARING LUBRICATION METHOD | PRESSURE GREASE FITTING |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.750 INCHES |
| TACKLE LOCKING DEVICE | INCLUDED |
| ATTACHMENT STYLE | FLATTED STIFF SWIVEL HOOK |
| SURFACE TREATMENT AND LOCATION | ENAMEL OVERALL |
