7 1/2-TON Crane Cantwell Cullen 709 1247-57 Non-metallic Hose ASSY | NSN 4720-01-262-7536

KOEHRING CRANES 709 1247-57 Hose Assembly, Nonmetallic (NSN 4720-01-262-7536)

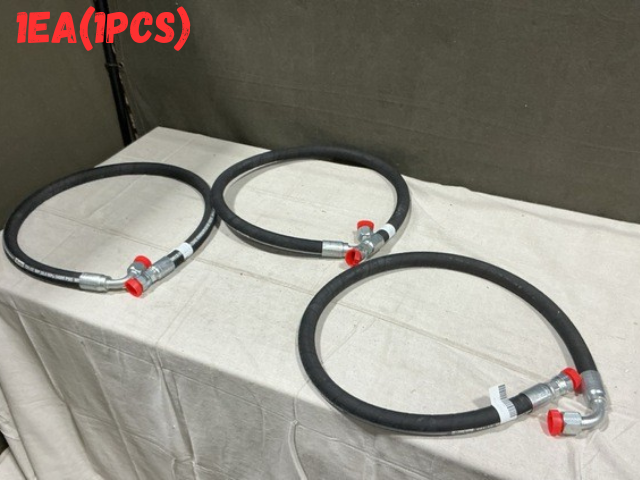

Nonmetallic hose assembly with steel swivel nut flare fittings on both ends, straight first end and 90-degree elbow second end.

Part Information

• Manufacturer: Koehring Cranes, Inc
• Part Number: 709 1247-57
• NSN: 4720-01-262-7536
• Condition: New

Specifications

• Inside Diameter: 0.750 in nominal
• Outside Diameter: 1.230 in nominal
• Overall Length: 57.000 in nominal
• Thread Size: 1.062 in, 12 threads/in, UN series, 3B class, right-hand, both ends
• Seat Angle: 37° both ends
• Connection: Swivel nut flare, threaded internal tube, both ends
• End Design: Straight (first end), 90° elbow (second end)
• Operating Pressure: 4000 PSI maximum
• Temp Rating: -40°F to 250°F
• Media: Fuel/oil, hydrocarbon
• Construction: Molded synthetic rubber outer layer, synthetic rubber inner tube, 4-layer spirally laid corrosion-resistant steel wire reinforcement
• Min Bend Radius: 9.500 in
• Spec/Standard: SAE J517, 100R12, Size 12-81343
