SECO Parts and Equipment

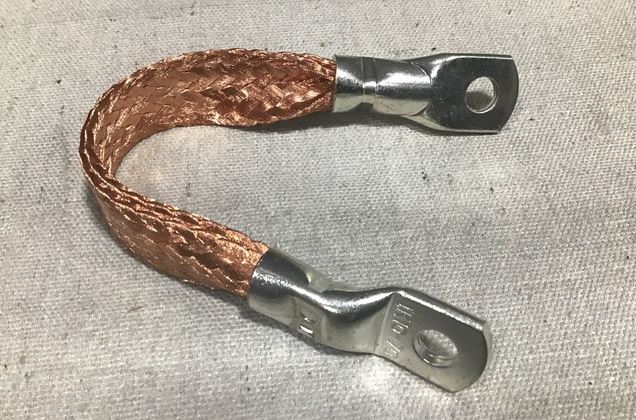

Lead,electrical 020.03.0006 | NSN 6150-12-322-2522

Lead,electrical 020.03.0006 | NSN 6150-12-322-2522

$215.00 USD
$215.00 USD
Sale Sold out
Shipping calculated at checkout.

6150-12-322-2522 LEAD,ELECTRICAL 020.03.0006

Name Value
CROSS-SECTIONAL SHAPE STYLE FLAT
CROSS SECTION OUTSIDE DIAMETER 20,0 MILLIMETERS NOMINAL
CROSS-SECTIONAL HEIGHT 4,0 MILLIMETERS NOMINAL
CROSS-SECTIONAL WIDTH 20,0 MILLIMETERS NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINAL HOLES 255,0 MILLIMETERS NOMINAL
TERMINATION TYPE LUG TERMINAL W/MOUNTING HOLE 1ST END SINGLE CONDUCTOR
TERMINATION TYPE LUG TERMINAL W/MOUNTING HOLE 2ND END SINGLE CONDUCTOR
LEAD OVERALL LENGTH 285,0 MILLIMETERS NOMINAL
STRAND QUANTITY PER CONDUCTOR 5280 SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE 40,0 SQUARE MILLIMETERS SINGLE CONDUCTOR
CONDUCTOR CROSS-SECTIONAL SHAPE FLAT/RIBBON SINGLE CONDUCTOR
TERMINAL LUG APERTURE SIZE 10,5 MILLIMETERS 1ST END SINGLE CONDUCTOR
TERMINAL LUG APERTURE SIZE 10,5 MILLIMETERS 2ND END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER DIN46235-10-70-S 2ND END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER DIN46235-10-70-S 1ST END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE D8286 1ST END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE D8286 2ND END SINGLE CONDUCTOR
MATERIAL COPPER CORE CONDUCTOR SINGLE CONDUCTOR
TERMINATION TYPE LUG TERMINAL W/MOUNTING HOLE BOTH ENDS SINGLE CONDUCTOR
CONDUCTOR FORM BRAID, FLAT SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER DIN46235-10-70-S BOTH ENDS SINGLE CONDUCTOR
