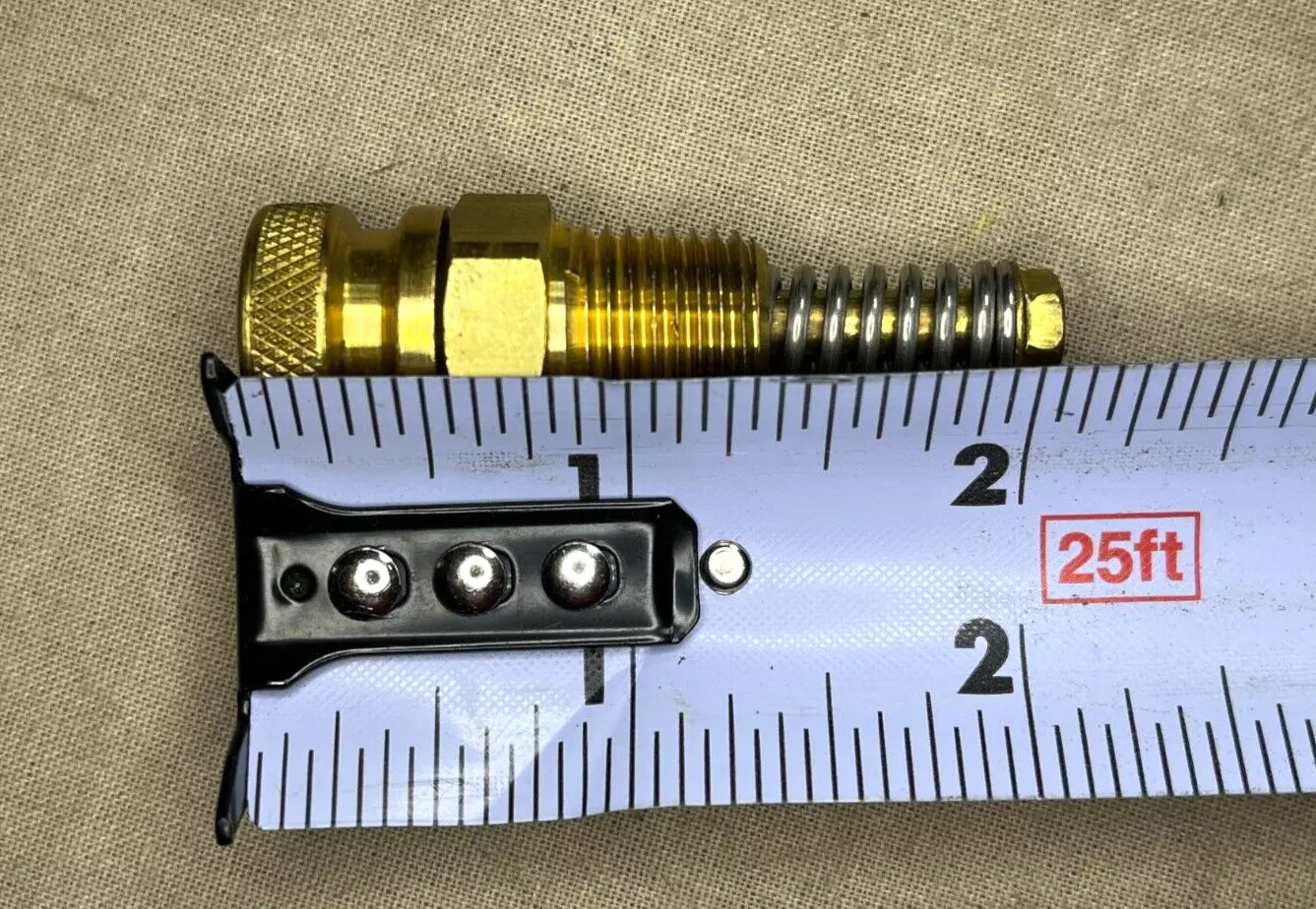

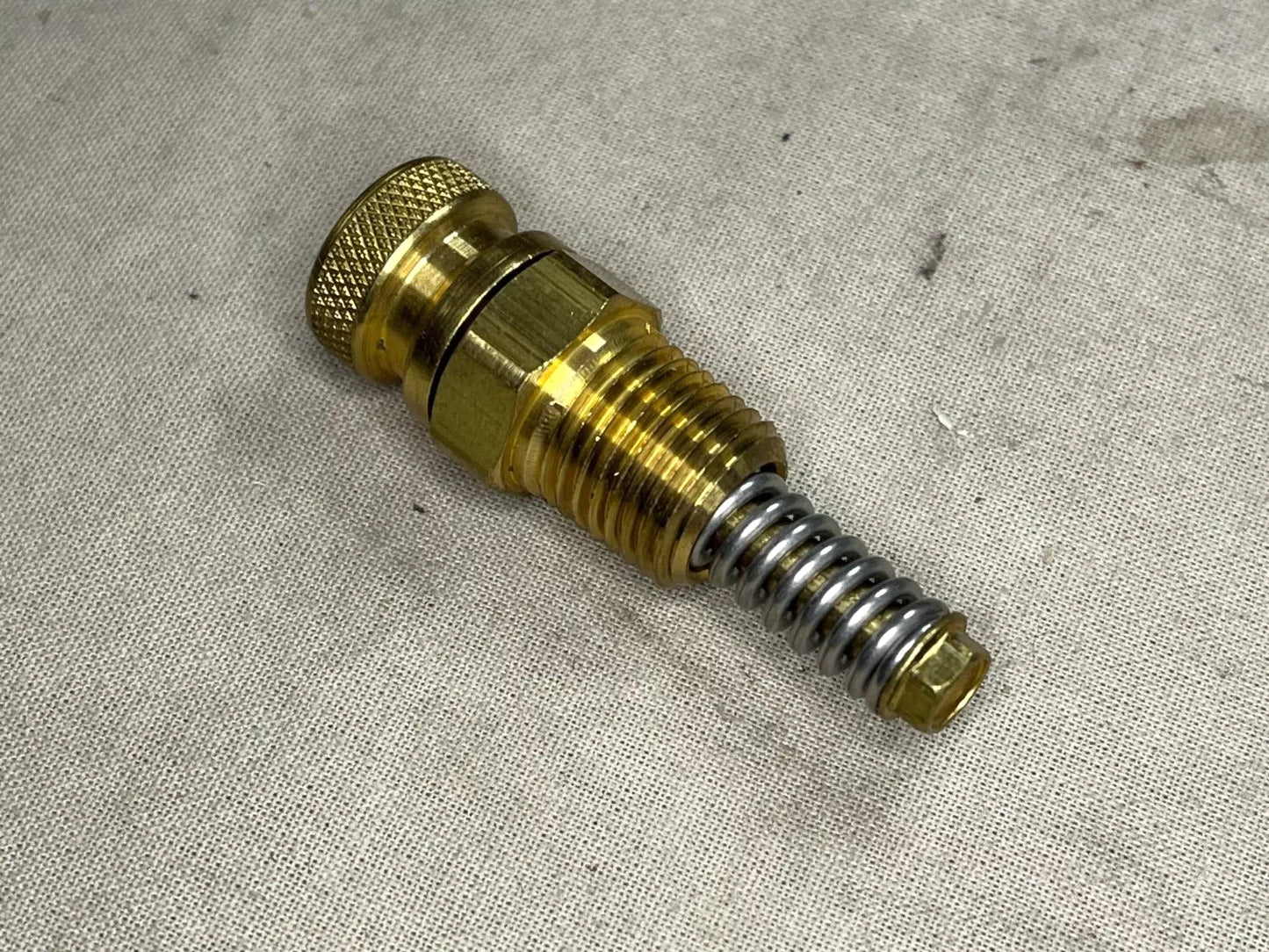

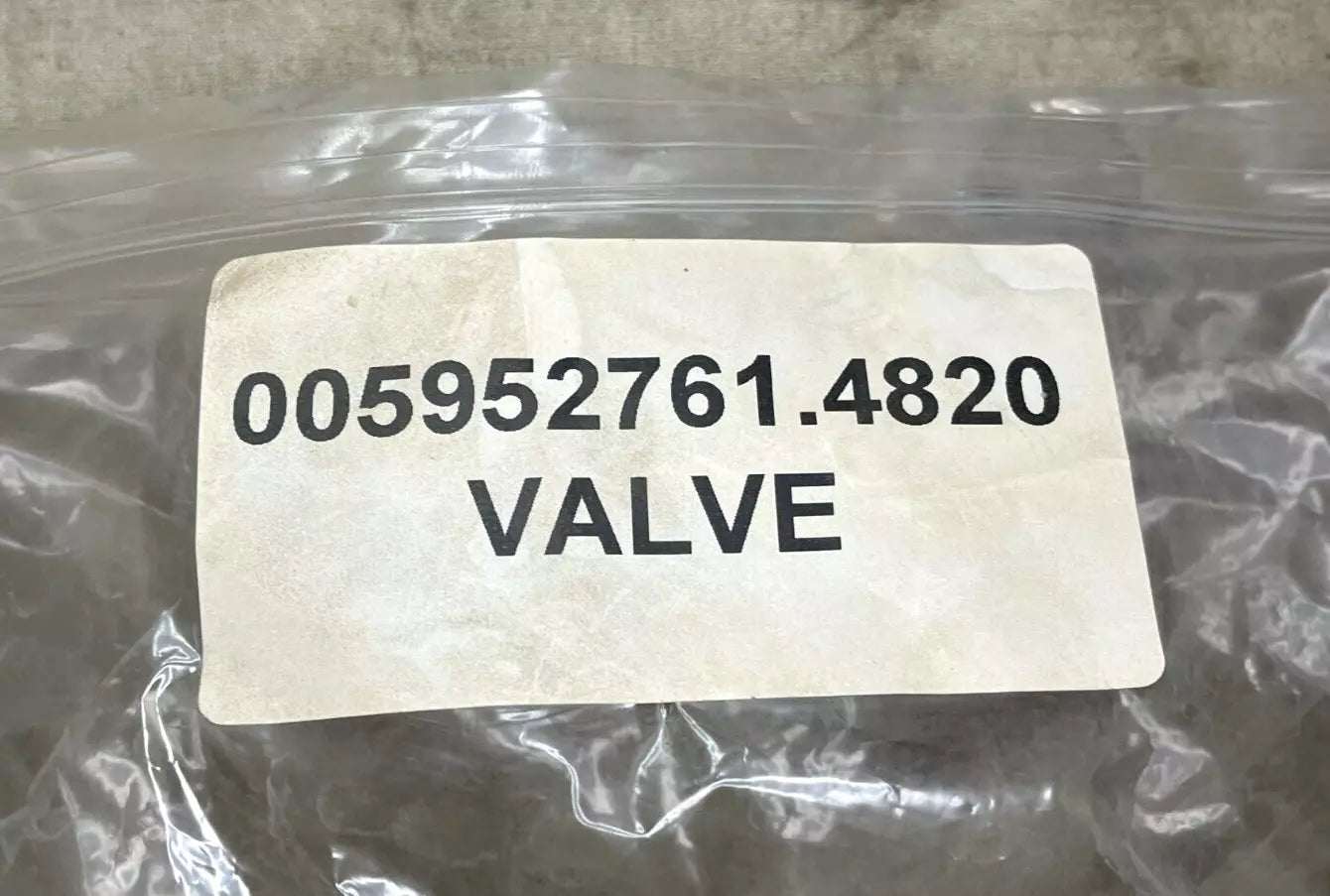

5 TON M-915 M939 HEMTT SAFETY PRESSURE RELIEF VALVE 7066008 4820-00-595-2761

THREAD DIRECTION

RIGHT-HAND 1ST END

FLOW CONTROL DEVICE

BALL

BONNET TYPE

INSIDE SPRING

BONNET ATTACHMENT METHOD

THREADED

DISK LOADING METHOD

SPRING

END ITEM IDENTIFICATION

CLARK MODEL 290M;TRACTOR,WHEELED,IND.,DIESEL DRIVEN;MED DBP,NSN 2420000889384,W/ROPS NSN 2420010590090;2320-01-097-0248,2320-01-097-0249,2320-01-100-7672,2320-01-097-0260,2320-01-195-7641 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS)

CONNECTION STYLE

PLAIN (PIPE) 1ST END

VALVE OPERATION METHOD

AUTOMATIC

CONNECTION TYPE

THREADED EXTERNAL PIPE 1ST END

FEATURES PROVIDED

PRESSURE TIGHT OUTLET SIDE

NOMINAL THREAD SIZE

0.250 INCHES 1ST END

OPENING PRESSURE SETTING

150.0 POUNDS PER SQUARE INCH

MATERIAL

COPPER ALLOY STEM

MATERIAL

COPPER ALLOY BODY

MATERIAL

COPPER ALLOY SEAT

MATERIAL

STEEL FLOW CONTROL DEVICE

PROPRIETARY CHARACTERISTICS

PACS

STYLE DESIGNATOR

ANGLE

THREAD SERIES DESIGNATOR

NPT 1ST END

END ITEM IDENTIFICATION

CLARK MODEL 290M;TRACTOR,WHEELED,IND. ,DIESEL DRIVEN;MED DBP,NSN 2420000889384,W/ROPS NSN 2420010590090

CONNECTION STYLE

G46B PLAIN 1ST END

METALLIC HARDNESS RATING AND LOCATION

NOT RATED

MATERIAL

STEEL OVERALL

MEDIA FOR WHICH DESIGNED

FUEL/OIL, HYDROCARBON

STYLE DESIGNATOR

C3 ANGLE

TERMINAL TYPE AND QUANTITY

5 STANDOFF INSULATOR
