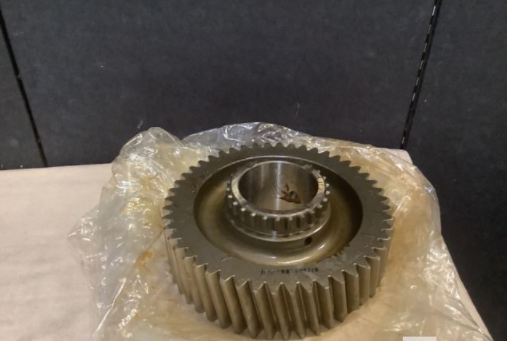

| BODY STYLE |
WEBBED, SOLID |
| ATTACHMENT METHOD |
MOUNTING HOLE |
| END ITEM IDENTIFICATION |
2320-01-318-9902 HET (HEAVY EQUIPMENT TRANSPORTER); 2320-01-304-2277 AND 2320-01-304-2278 PLS (PALLETIZED LOADING SYSTEM) |
| PITCH DIAMETER |
9.7958 INCHES NOMINAL |
| TEETH QUANTITY |
48 |
| BORE STYLE |
PLAIN BOTH ENDS |
| HARDNESS RATING |
58.0 ROCKWELL C MINIMUM OVERALL AND 62.0 ROCKWELL C MAXIMUM OVERALL |
| MOUNTING HOLE TYPE AND QUANTITY |
3 PLAIN AXIALLY THROUGH BODY, FIRST END |
| NOMINAL OUTSIDE DIAMETER |
10.135 INCHES |
| TEETH TYPE |
SINGLE HELIX |
| TOOTH DIRECTION |
LEFT |
| PRESSURE ANGLE |
25.0000 DEGREES |
| HELIX ANGLE |
11.4761 DEGREES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END |
1.062 INCHES FIRST END |
| FACE NOMINAL WIDTH |
2.875 INCHES |
| BORE NOMINAL DIAMETER |
3.377 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR |
EXTERNALLY SPLINED, STRAIGHT SPLINES FIRST END |
| MOUNTING HOLE NOMINAL DIAMETER |
0.380 INCHES AXIALLY THROUGH BODY, FIRST END |
| HUB SPLINE QUANTITY |
26 FIRST END |
| HUB SPLINE NOMINAL MAJOR DIAMETER |
4.465 INCHES FIRST END |
| III MATERIAL |
STEEL COMP 8620H OVERALL |
| PROPRIETARY CHARACTERISTICS |
PACS |
| STYLE DESIGNATOR |
PROTRUDING HUB |
| BODY STYLE |
3A WEBBED, SOLID |
| END ITEM IDENTIFICATION |
2320-01-318-9902 |
| BORE STYLE |
1 PLAIN BOTH ENDS |
| HARDNESS RATING |
58.0 ROCKWELL C MINIMUM OVERALL AND 62.0 ROCKWELL C MAXIMUM |
| HUB STYLE DESIGNATOR |
7 EXTERNALLY SPLINED, STRAIGHT SPLINES FIRST END |
| MATERIAL |
STEEL COMP 8620H OVERALL |
