HMMWV M998 Humvee 16.5 2 Piece Wheel Assembly Kit New 57K3527 12 Stud | NSN 2530-01-443-3405
HMMWV M998 Humvee 16.5 2 Piece Wheel Assembly Kit New 57K3527 12 Stud | NSN 2530-01-443-3405
Couldn't load pickup availability
NSN 2530-01-443-3405 Specs and cross-references for NSN 2530-01-443-3405 (opens in a new tab) ↗

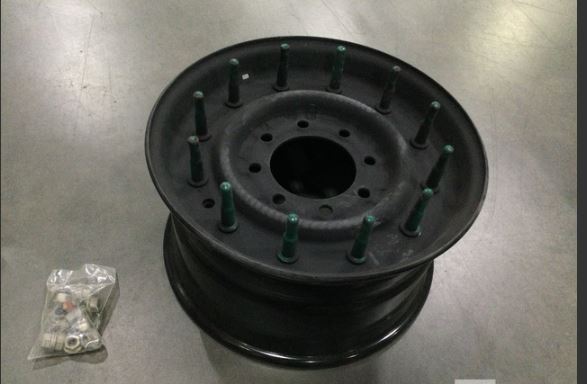

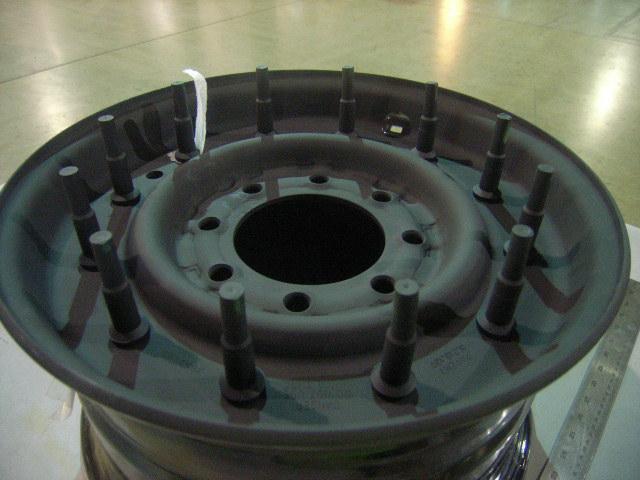

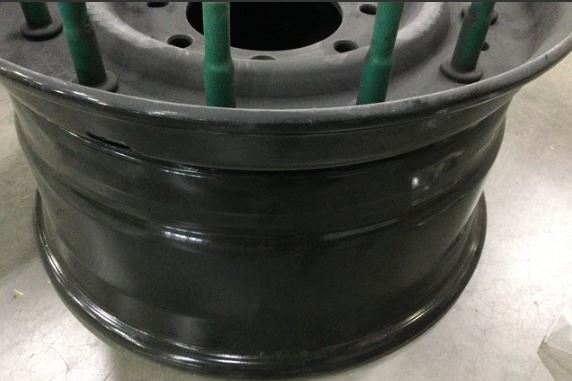

2530-01-443-3405 HMMWV M998 Humvee 16.5 2 Piece WHEEL ASSEMBLY KIT NEW

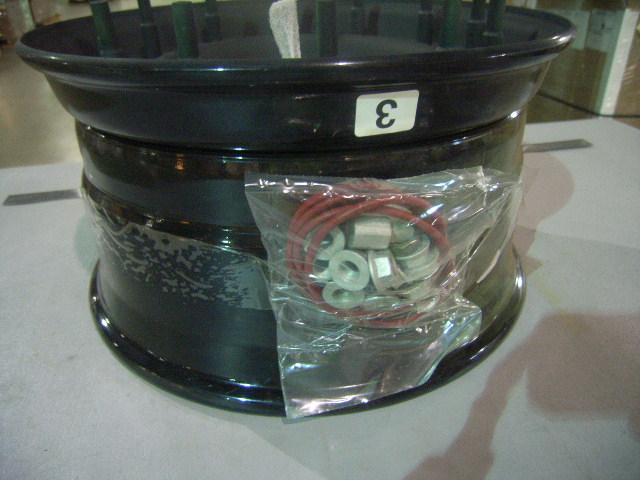

THIS IS THE REVISED 12 BOLT WHEEL ASSEMBLY WITH THE "13TH ALIGNMENT HOLE". NO CENTER ALIGNMENT WASHERS ARE REQUIRED.KIT INCLUDES: * 12339501 (12) - LOCKNUT, OUTER RIM (6 SIDES) * MS21245-8 (1) - NUT, SELF-LOCKING, HEXAGON * 12342634 (1) - ASSEMBLY, TANK VALVE * 12342793 (1) - ADAPTER, WHEEL VALVE * 12460338 (1) - O-RING, WHEEL (DARK RED) * 12342794 (1) - O-RING, WHEEL INSERT * 12460178 (1) - RIM, WHEEL (OUTER) * 12460177 (1) - RIM, WHEEL (INNER)
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- HMMWV: M998, M1038, M966, M1097, M998A1, M1038A1, M966A1, M1097A1, M1097A2 (TM 9-2320-280-24P)
- HMMWV (up-armored / expanded capacity): M1113, M1114, M1151, M1151A1, M1152, M1152A1, M1165, M1165A1, M1167 (TM 9-2320-387-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
