2.5 TON 5 TON 4 PLUG IGNITION STARTER SWITCH MS39060-2 5930-00-699-9438
2.5 TON 5 TON 4 PLUG IGNITION STARTER SWITCH MS39060-2 5930-00-699-9438
Couldn't load pickup availability

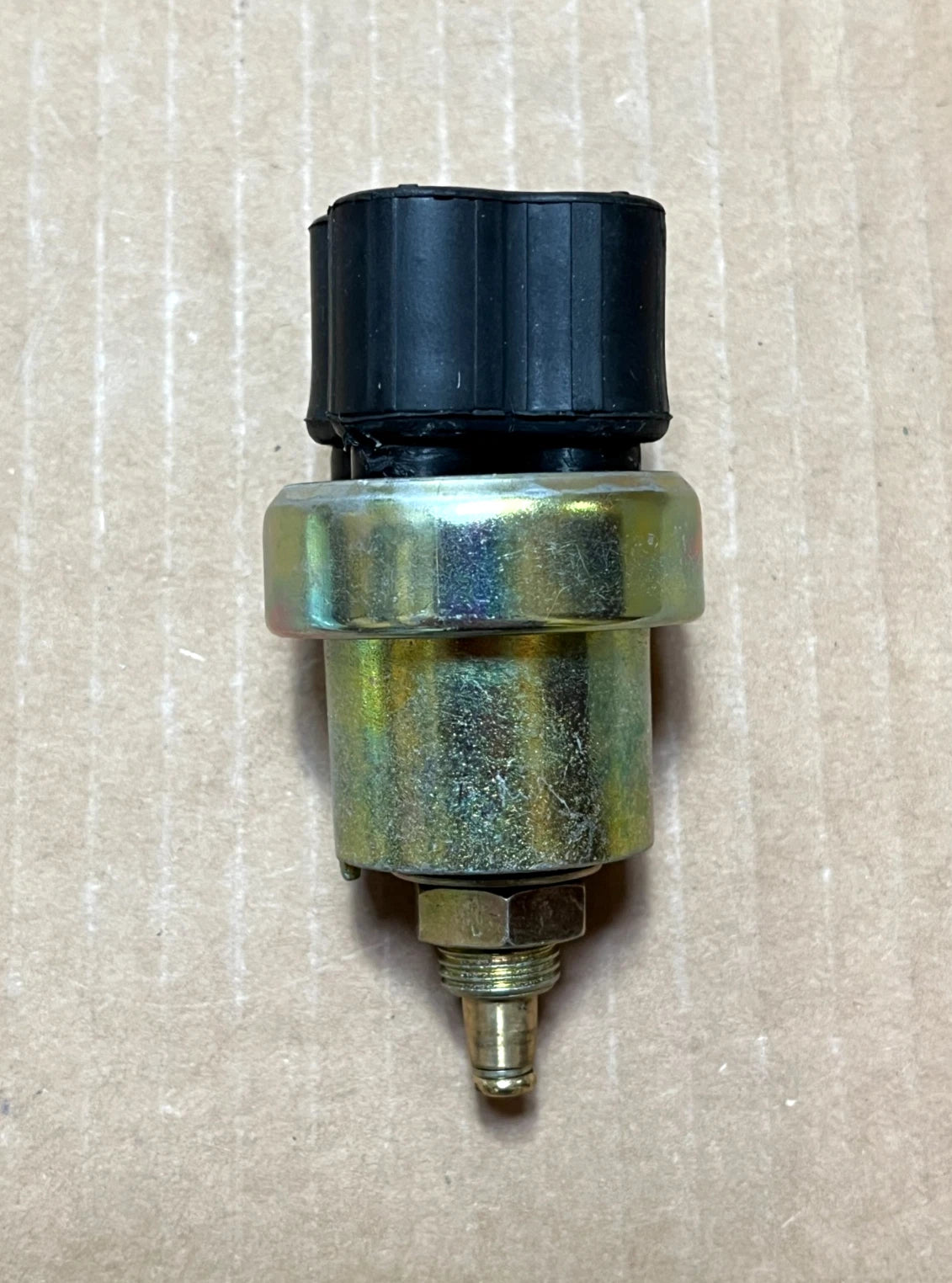

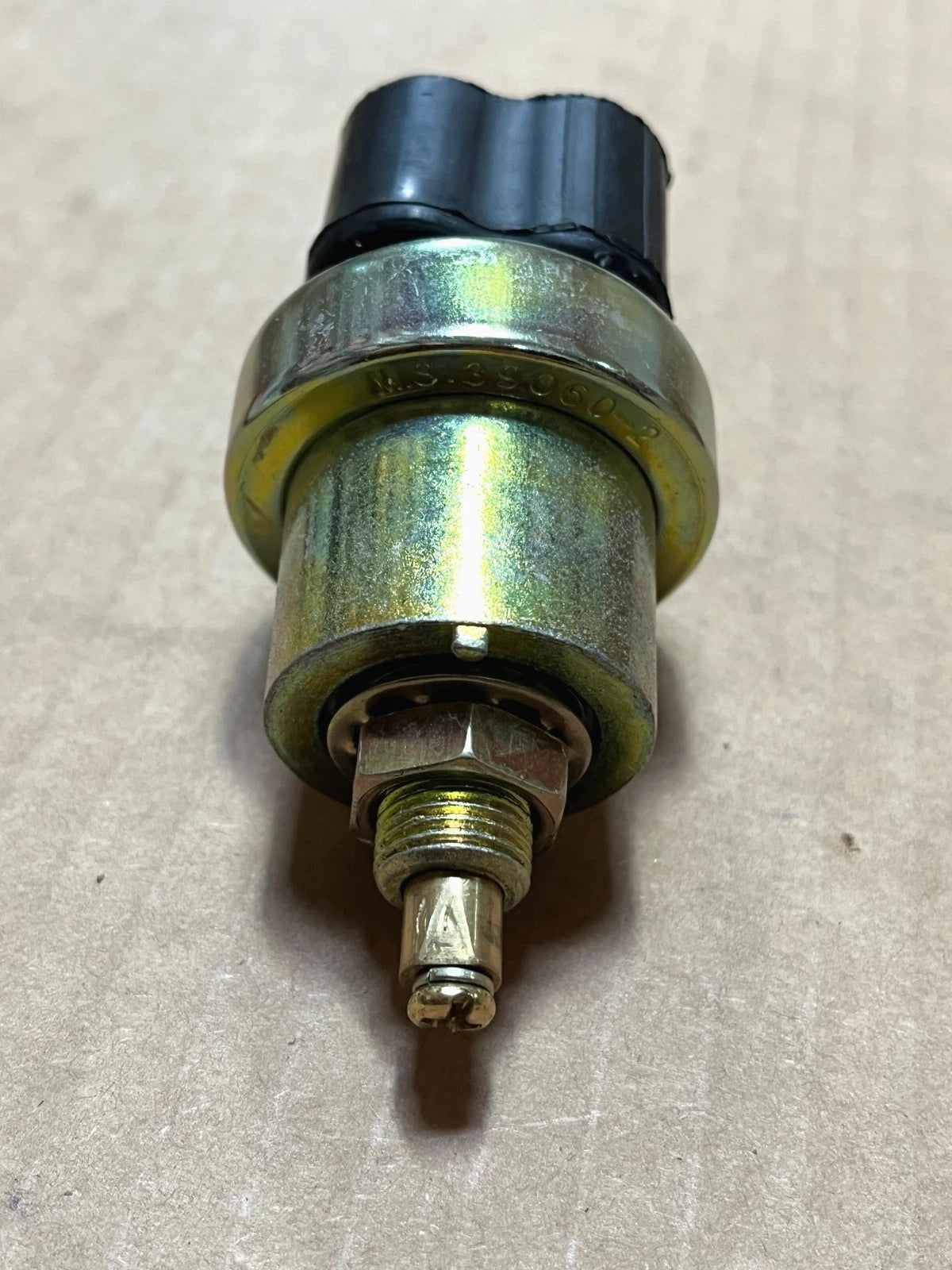

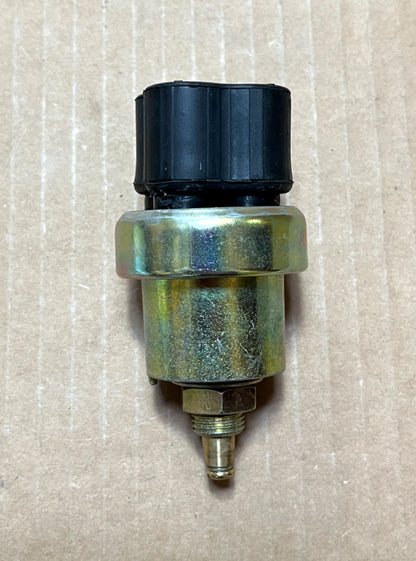

2.5 TON 5 TON ROUGHT TERRAIN FORKLIFT 4 TERMINAL PLUG IGNITION STARTER AUXILIARY SWITCH MS39060-2 5930-00-699-9438
No returns – This item contains electronics.
|
THREAD CLASS |
2A SINGLE MOUNTING FACILITY |
|
THREAD LENGTH |
0.560 INCHES NOMINAL SINGLE MOUNTING FACILITY |
|
WIDTH BETWEEN FLATS |
0.214 INCHES MINIMUM AND |
|
|
0.217 INCHES MAXIMUM SINGLE ACTUATOR |
|
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION |
WATERTIGHT |
|
OVERALL LENGTH |
3.520 INCHES NOMINAL |
|
FIRST FLAT LENGTH |
0.190 INCHES NOMINAL SINGLE ACTUATOR |
|
SHAFT DIAMETER |
0.310 INCHES MINIMUM AND |
|
|
0.314 INCHES MAXIMUM SINGLE ACTUATOR |
|
SHAFT LENGTH |
0.380 INCHES NOMINAL SINGLE ACTUATOR |
|
OVERALL DIAMETER |
1.750 INCHES NOMINAL |
|
NONTURN DEVICE RADIUS |
0.625 INCHES NOMINAL AT 3:00 O'CLOCK |
|
INDIVIDUAL SECTION QUANTITY |
1 |
|
NONTURN DEVICE TYPE |
TAB AT 3:00 O'CLOCK |
|
SWITCH CONTACT BASIC DESIGN |
NONPILE-UP NONSYMMETRICAL |
|
MOUNTING METHOD |
THREADED BUSHING SINGLE MOUNTING FACILITY |
|
NOMINAL THREAD SIZE |
0.500 INCHES SINGLE MOUNTING FACILITY |
|
CONTACT VOLTAGE RATING IN VOLTS |
28.0 DC AT SEA LEVEL |
|
SWITCH ACTUATOR INDEXING POSITION QUANTITY |
2 SINGLE ACTUATOR |
|
SHAFT TYPE |
ROUND, PARALLEL FLATTED SINGLE ACTUATOR |
|

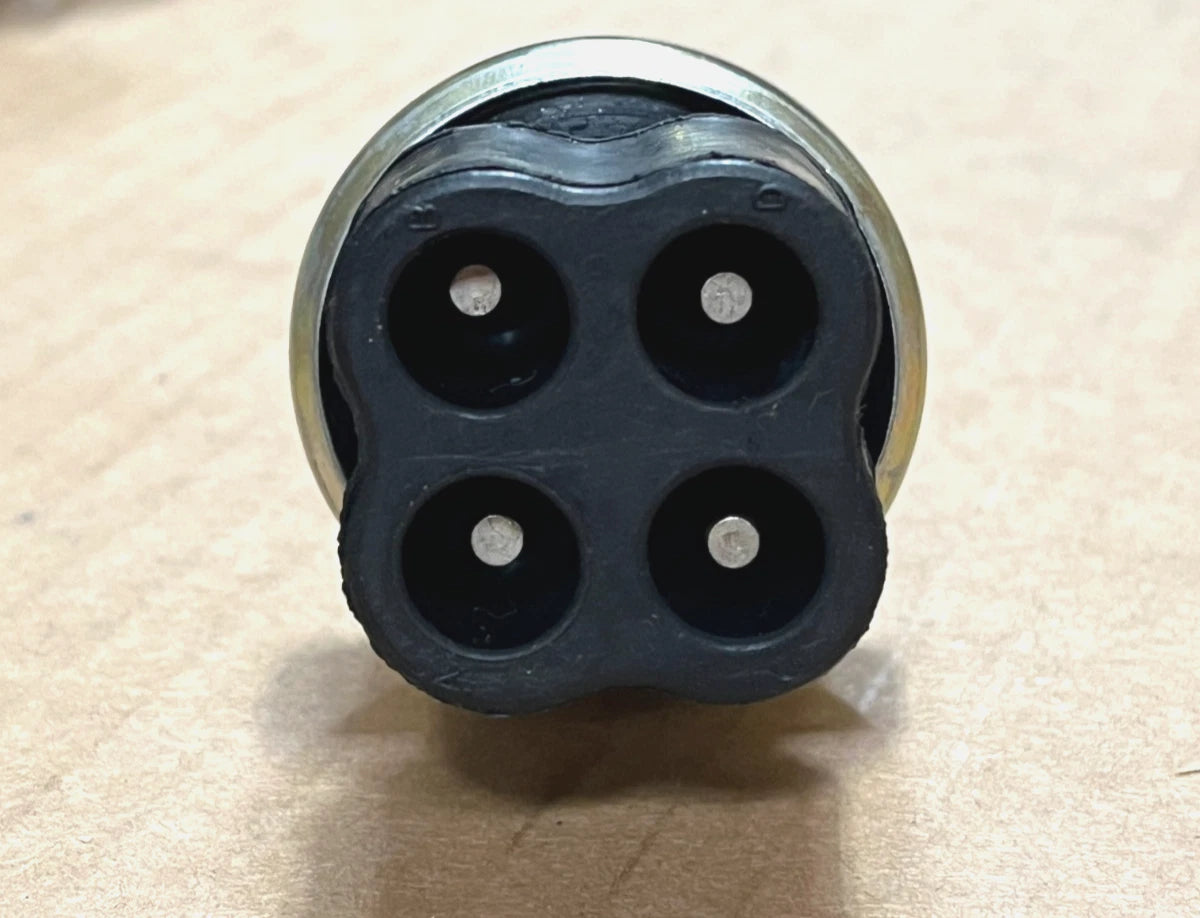

TERMINAL TYPE |
CONNECTOR, RECEPTACLE |
|
SWITCH ACTUATOR POSITIONING INCREMENT |
45.0 DEGREES SINGLE ACTUATOR |
|
CONTACT LOAD CURRENT RATING |
10.0 AMPERES RESISTIVE LOAD AND |
|
|
10.0 AMPERES INDUCTIVE LOAD AND |
|
|
5.0 AMPERES LAMP LOAD DC AT SEA LEVEL |
|
SPECIAL FEATURES |
THREADED HOLE IN SHAFT |
|
SPEC/STD CONTROLLING DATA |
|
|
MANUFACTURERS CODE |
81349 |
|
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE |
MIL-DTL-13623/1 |
|
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE |
MIL-DTL-13623/1-2 |
|
STYLE DESIGNATOR |
SNAP OR LINE |
|
TEST DATA DOCUMENT |
81349-MIL-S-13623 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
|
THREAD SERIES DESIGNATOR |
UNF SINGLE MOUNTING FACILITY |
|
SPECIFICATION/STANDARD DATA |
96906-MS39060 GOVERNMENT STANDARD |
|
ROTOR INPUT VOLTAGE RATING IN VOLTS |
26.0 NOMINAL |
|
MEDIA FOR WHICH DESIGNED |
FUEL/OIL, HYDROCARBON |
|
FSC APPLICATION DATA |
LUBRICATING OIL FILTER,ENGINE,NONAIRCRAFT |
