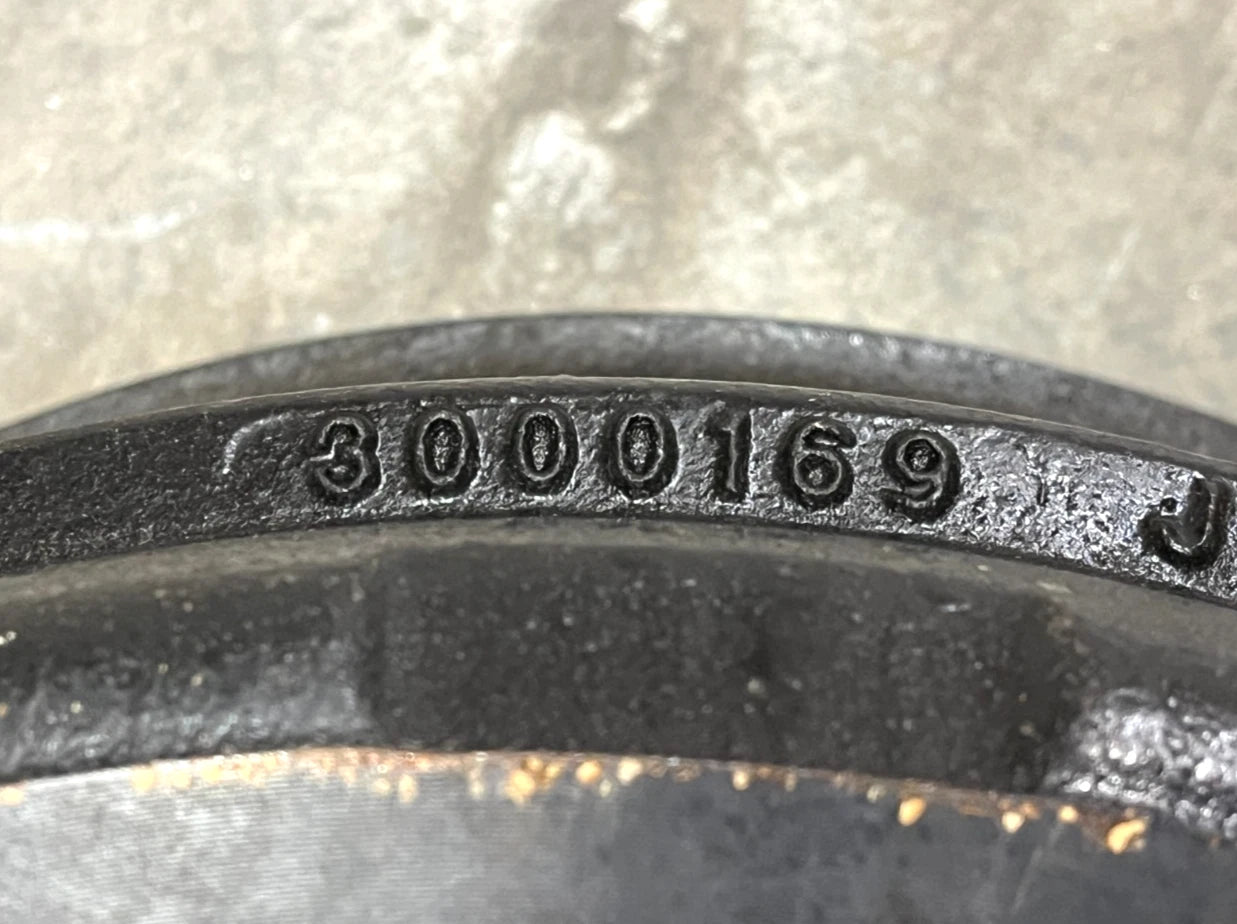

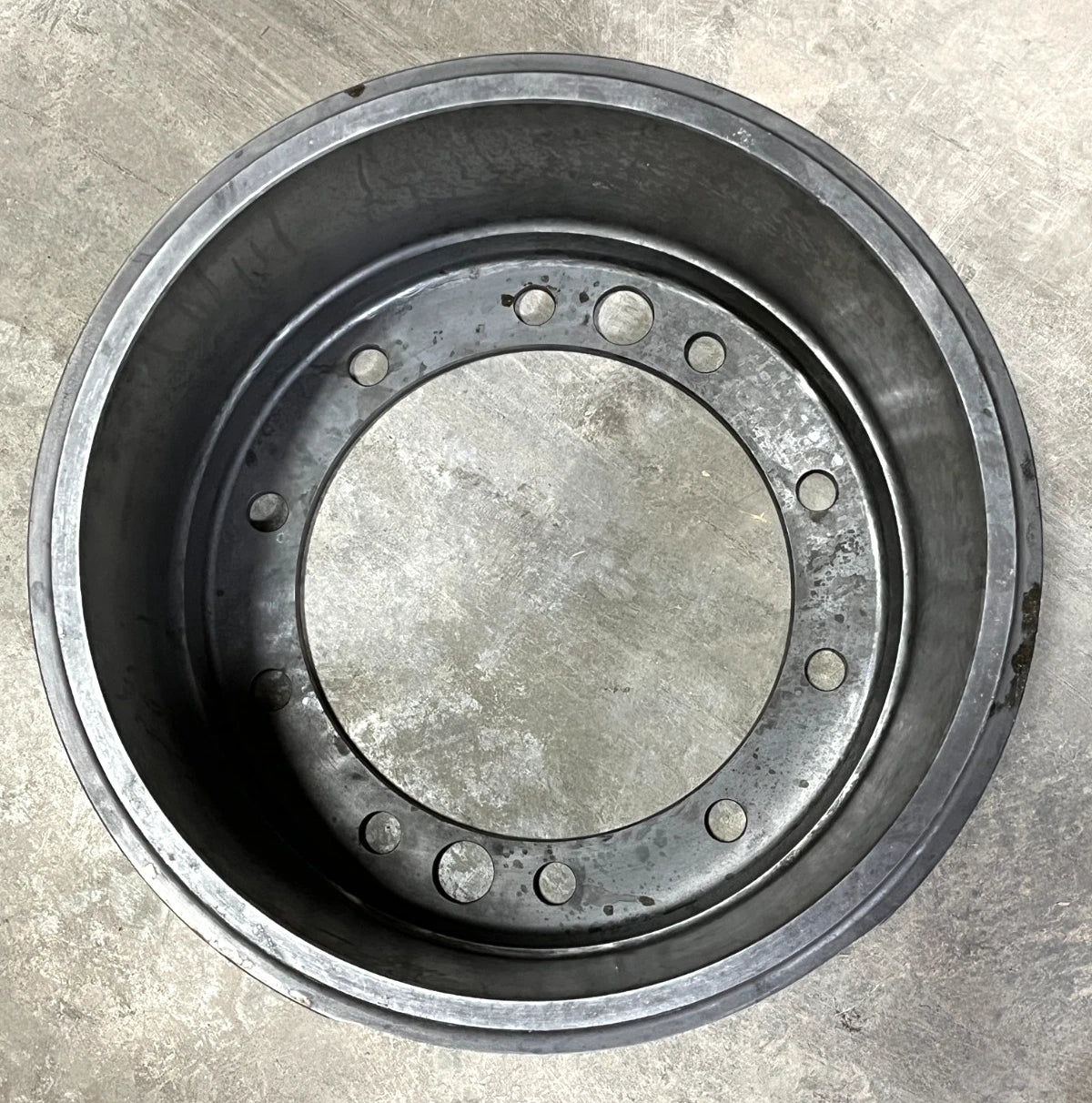

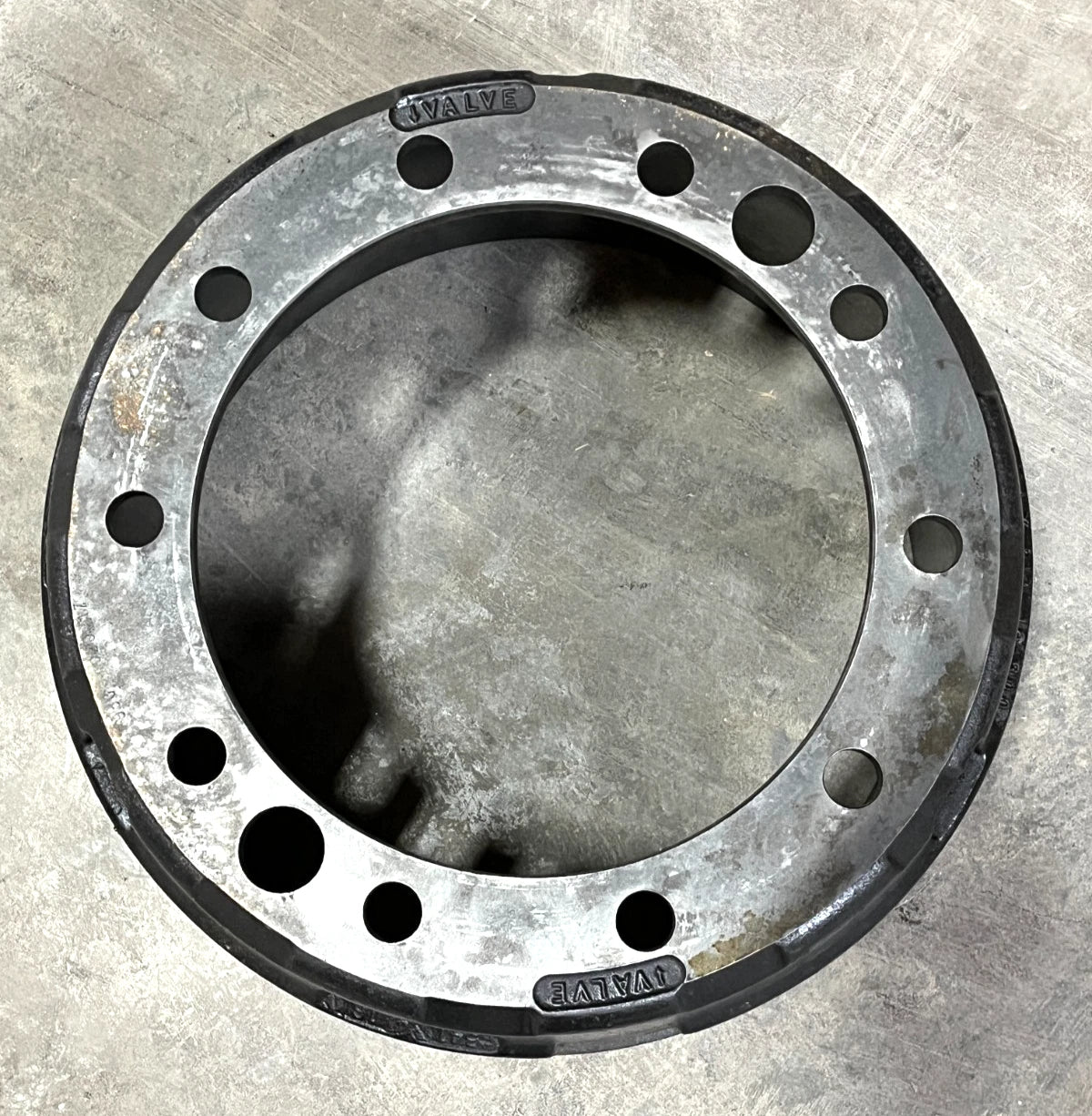

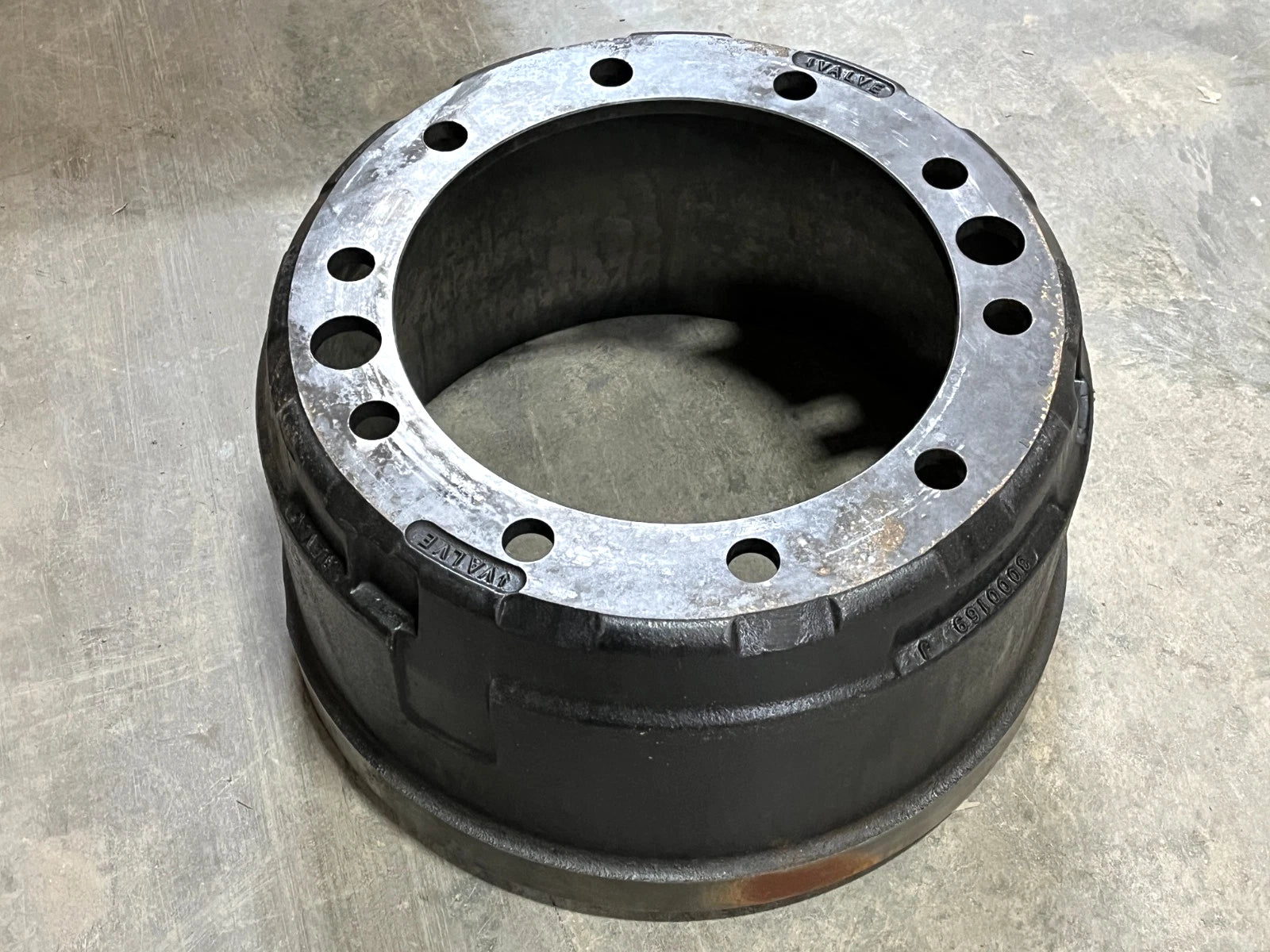

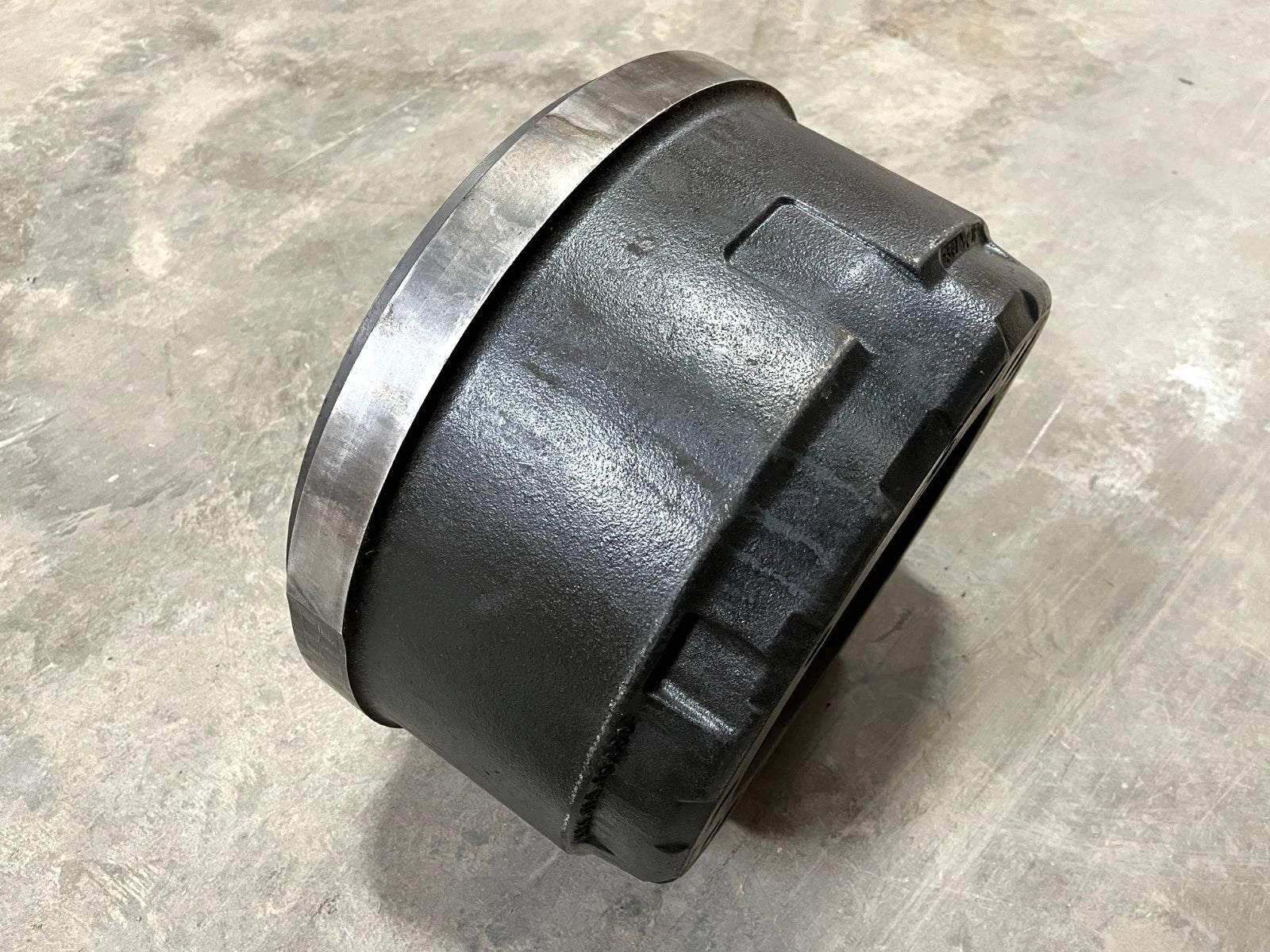

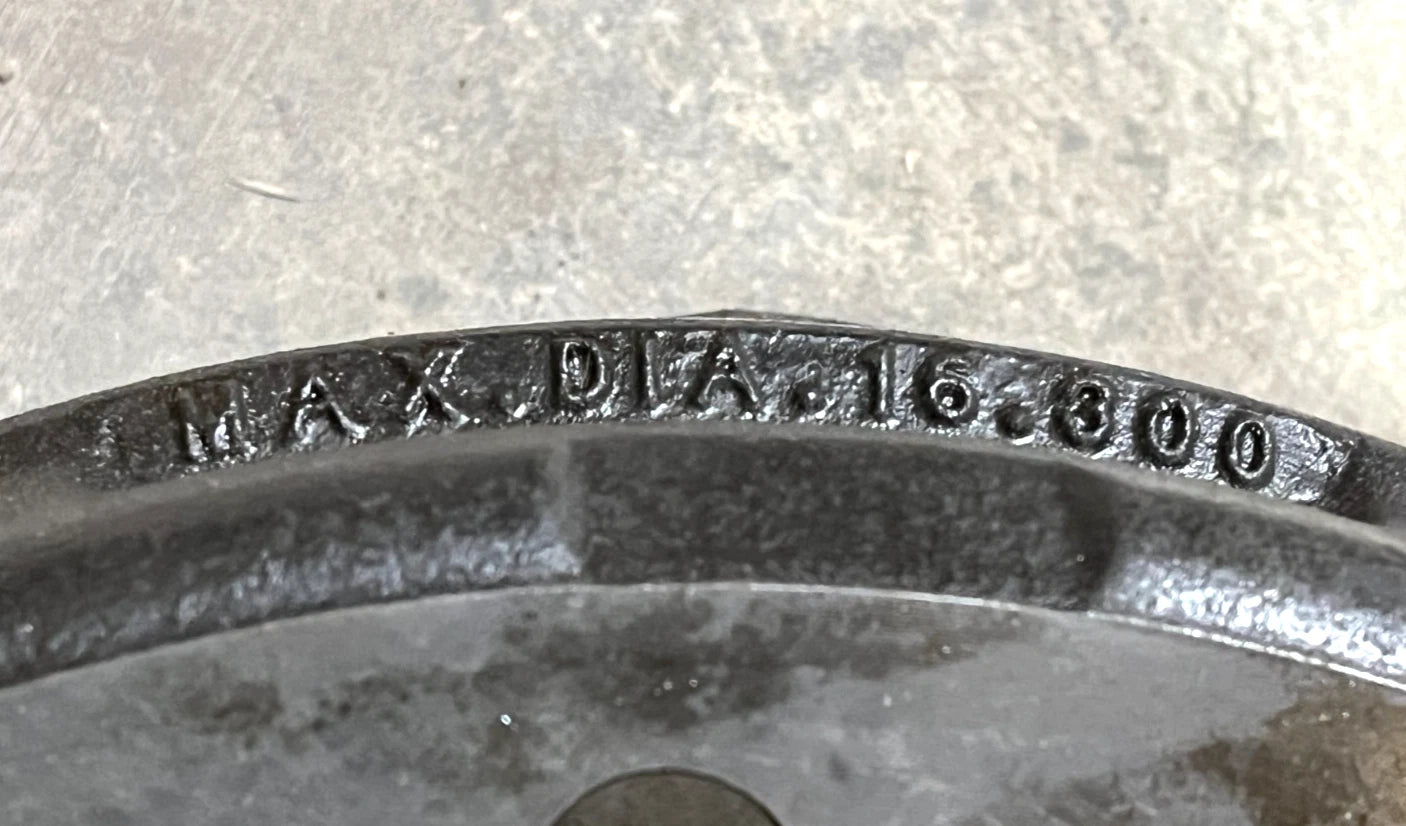

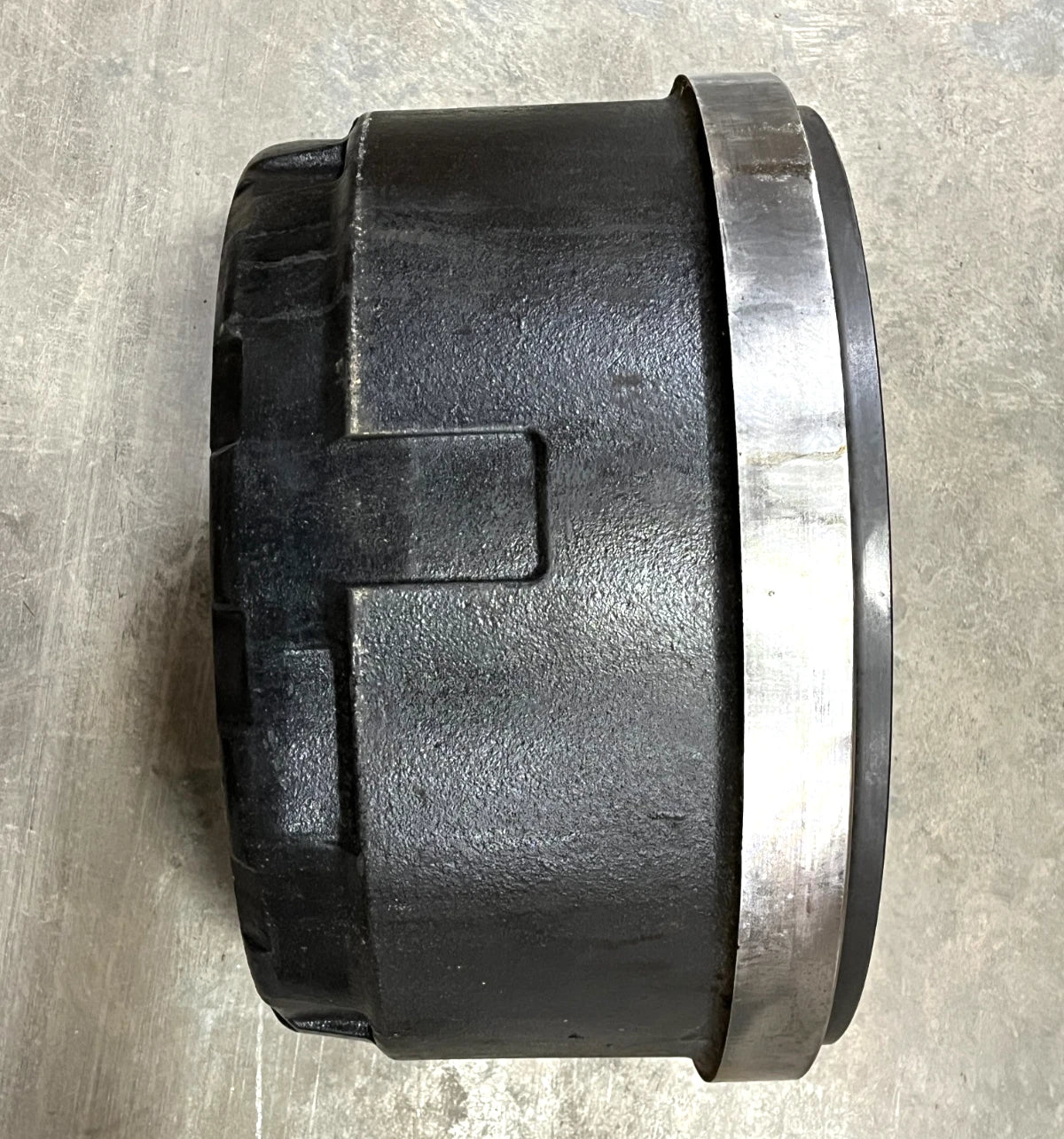

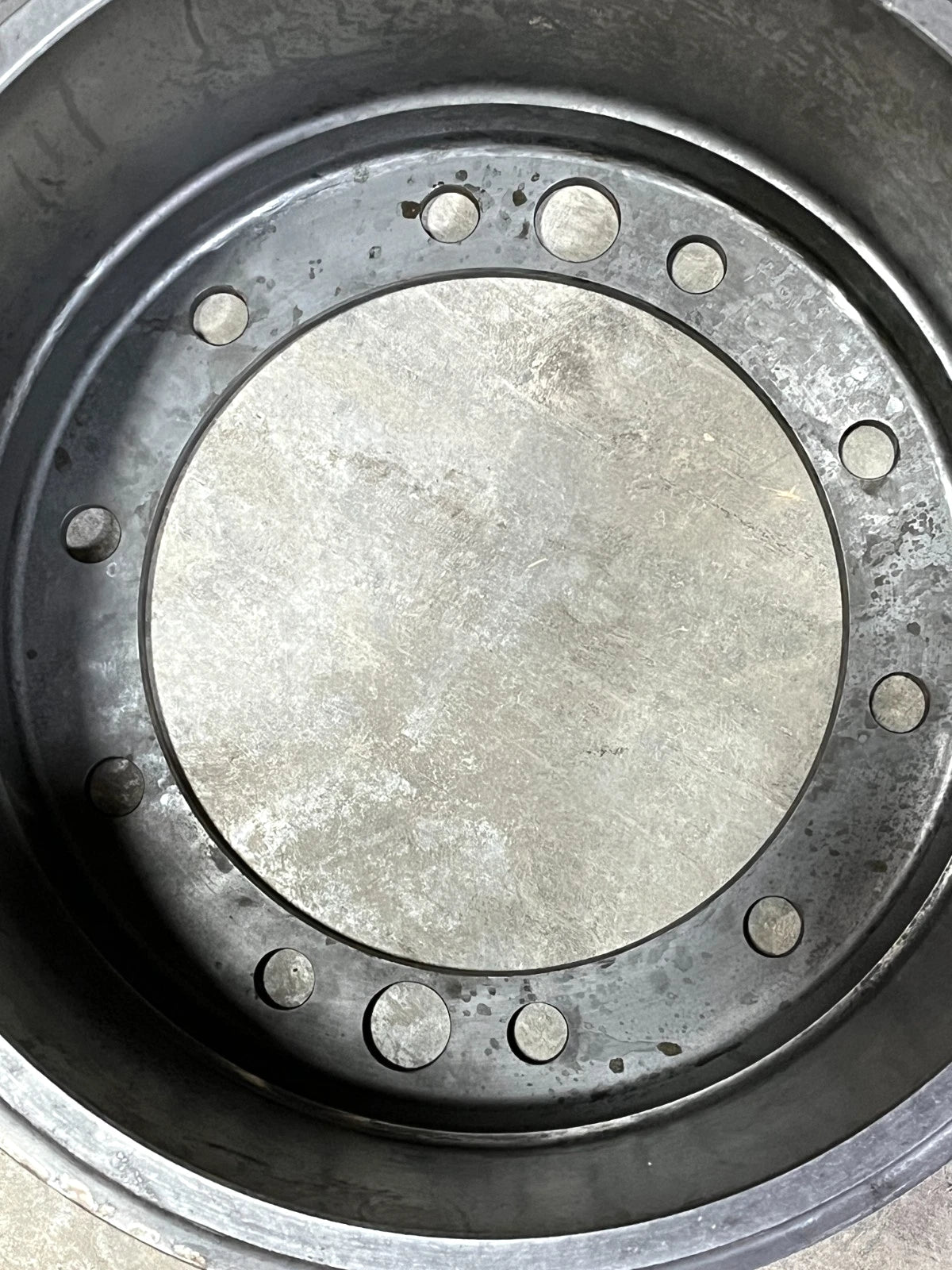

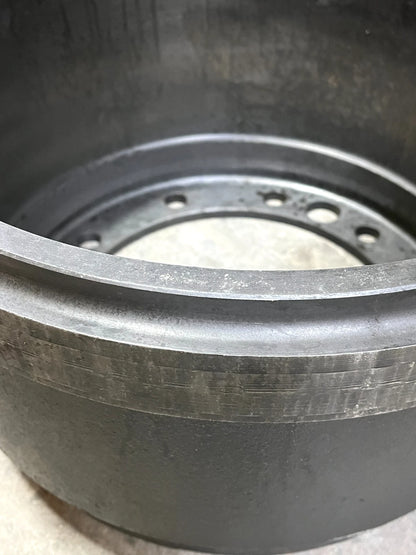

OSHKOSH COUGAR MRAP FRONT WHEEL BRAKE DRUM 3000169 69460B 10030326 2530-01-472-9623
OSHKOSH COUGAR MRAP FRONT WHEEL BRAKE DRUM 3000169 69460B 10030326 2530-01-472-9623
Couldn't load pickup availability
Please note: Freight is a flat fee of the amount charged when shipped to either a commercial address or freight terminal. Residential shipping is available, but will cost $100 more. Freight prices are subject to change depending on delivery address.
|
OVERALL WIDTH |
9.990 INCHES NOMINAL |
|
MOUNTING HOLE DIAMETER |
0.938 INCHES NOMINAL |
|
MOUNTING HOLE QUANTITY |
10 |
|
OVERALL OUTSIDE DIAMETER |
15.500 INCHES NOMINAL |
|
CENTER HOLE DIAMETER |
11.250 INCHES MINIMUM AND 11.253 INCHES MAXIMUM |
|
III END ITEM IDENTIFICATION |
2320-01-465-2174; MRAP; M-ATV; MRAP -COUGAR ISS 1.0; MRAP - COUGAR ISS 1.5 |
|
ALIGNMENT HOLE QUANTITY |
2 |
|
MOUNTING HOLE SPACING |
EQUALLY SPACED ON 13.188 INCH BOLT CIRCLE |
|
MATERIAL AND LOCATION |
IRON, CAST OVERALL |
|

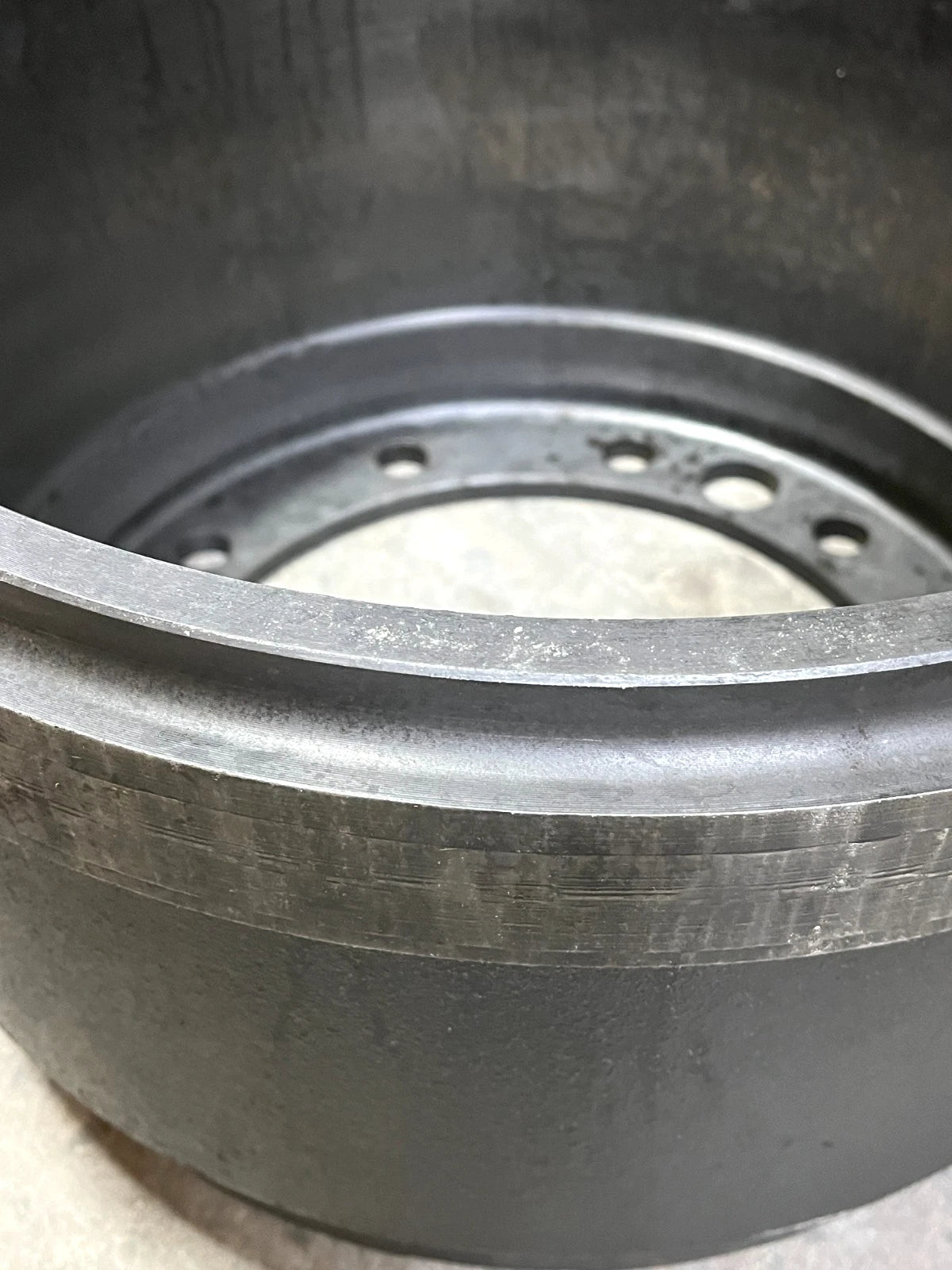

BRAKING SURFACE LOCATION |
INTERNAL |
|
BRAKING SURFACE DIAMETER |
16.140 INCHES NOMINAL |
|
BRAKING SURFACE WIDTH |
7.470 INCHES NOMINAL |
|
COOLING FIN |
NOT INCLUDED |
|
ADJUSTMENT HOLE |
NOT INCLUDED |
|
INSPECTION HOLE |
NOT INCLUDED |
|
OIL DRAIN HOLE |
NOT INCLUDED |
|
BALANCING PAD |
NOT INCLUDED |
|
III PART NAME ASSIGNED BY CONTROLLING AGENCY |
DRUM, FRONT BRAKE |
|
PROPRIETARY CHARACTERISTICS |
PACS |
