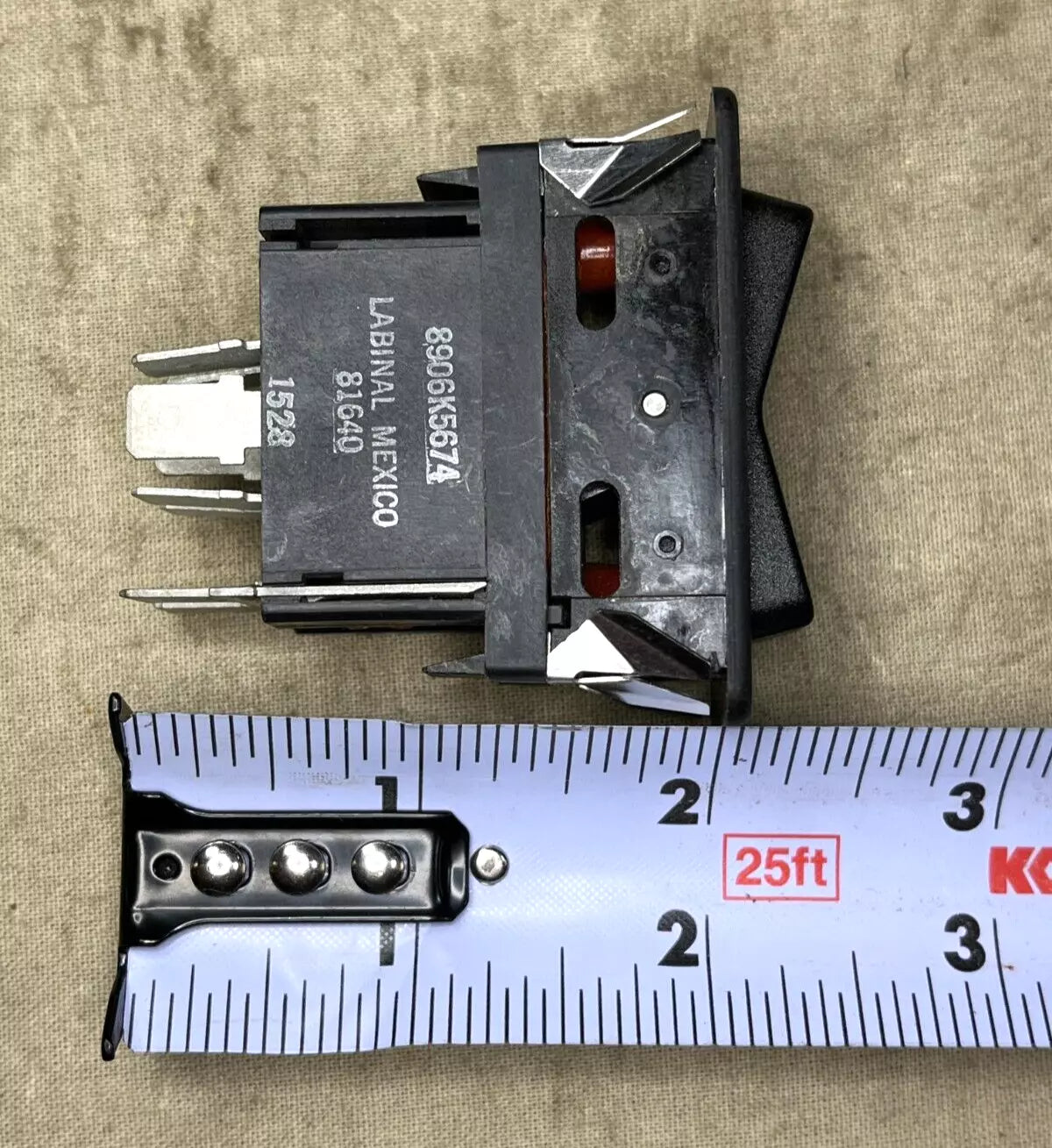

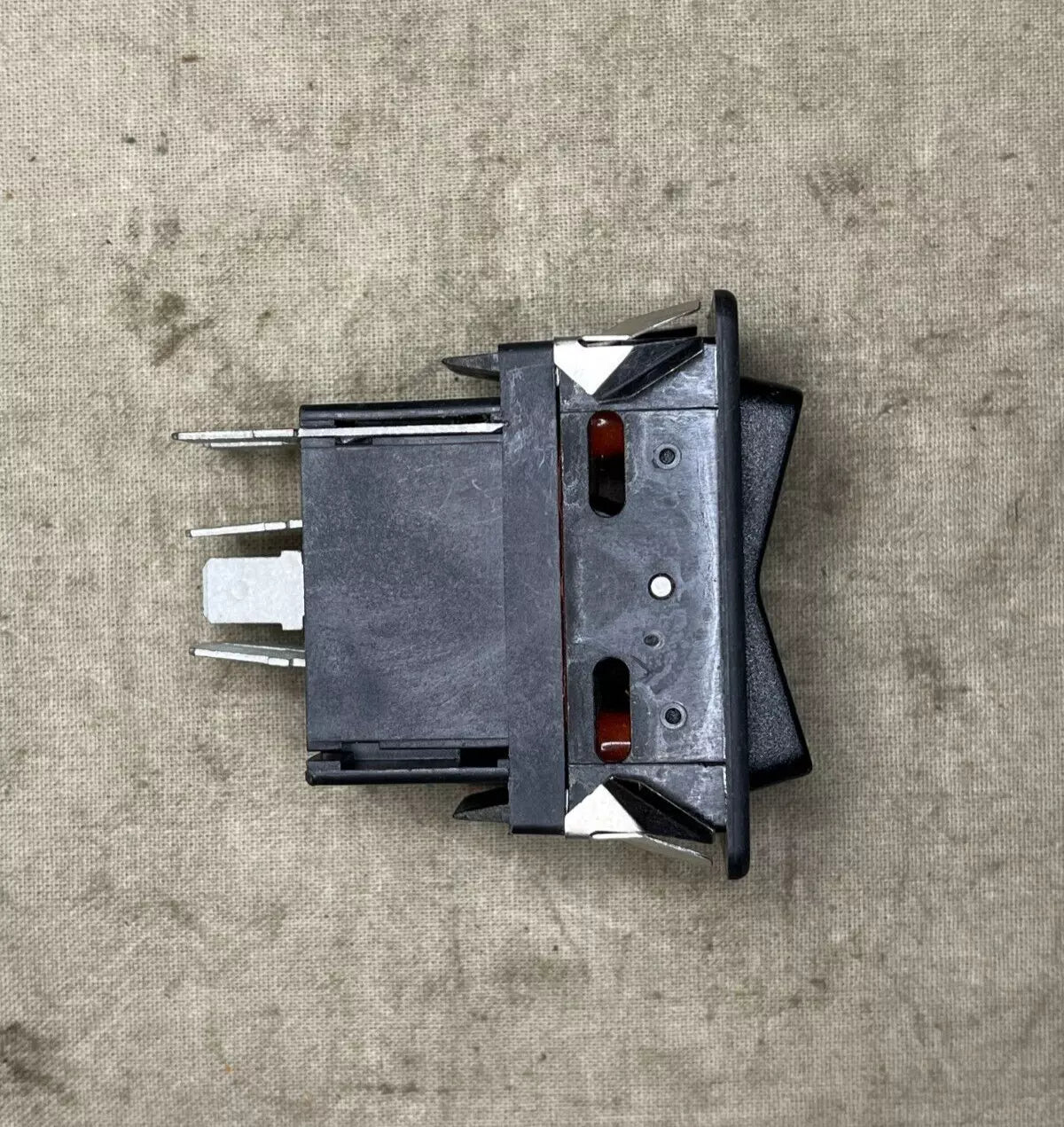

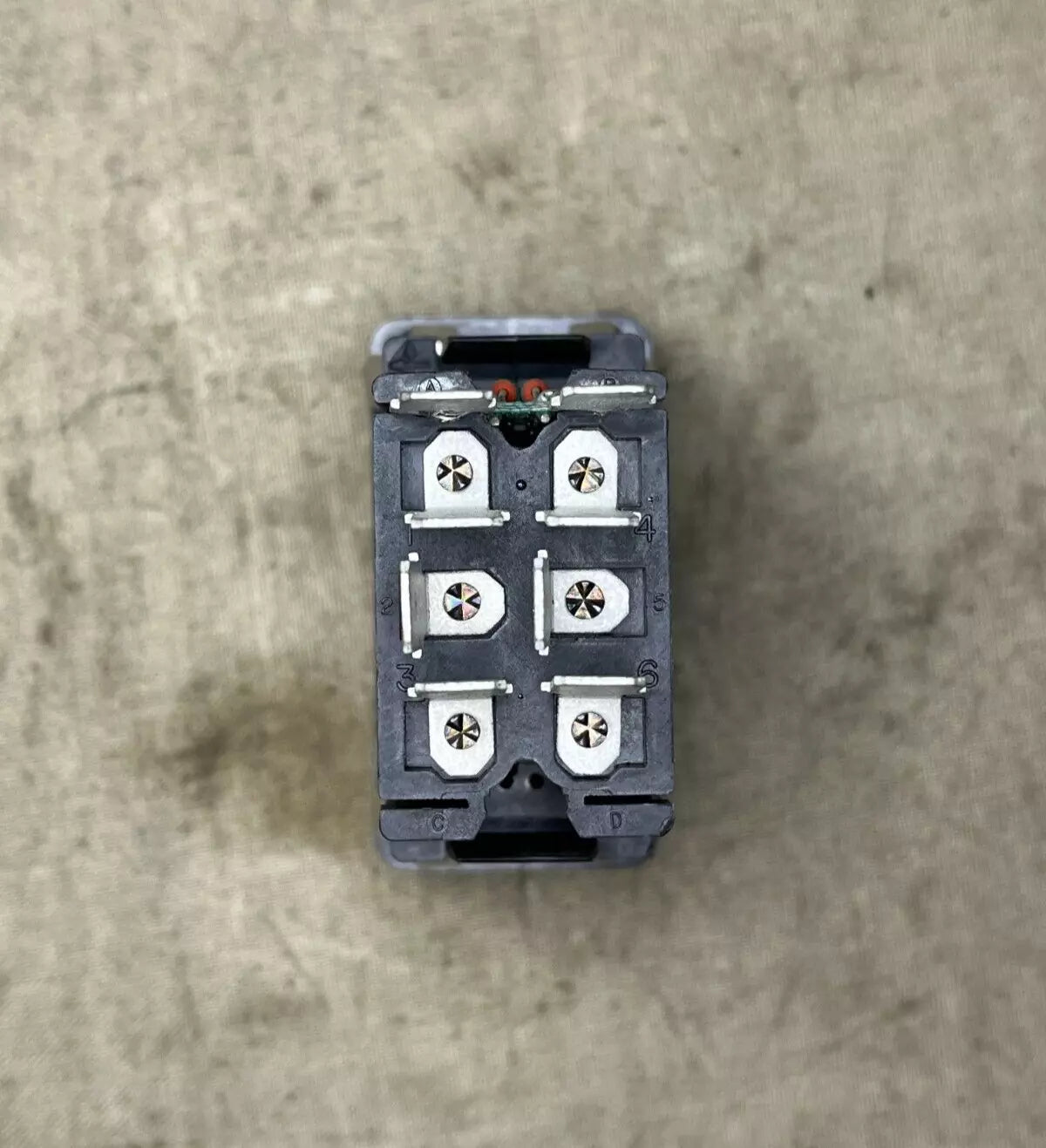

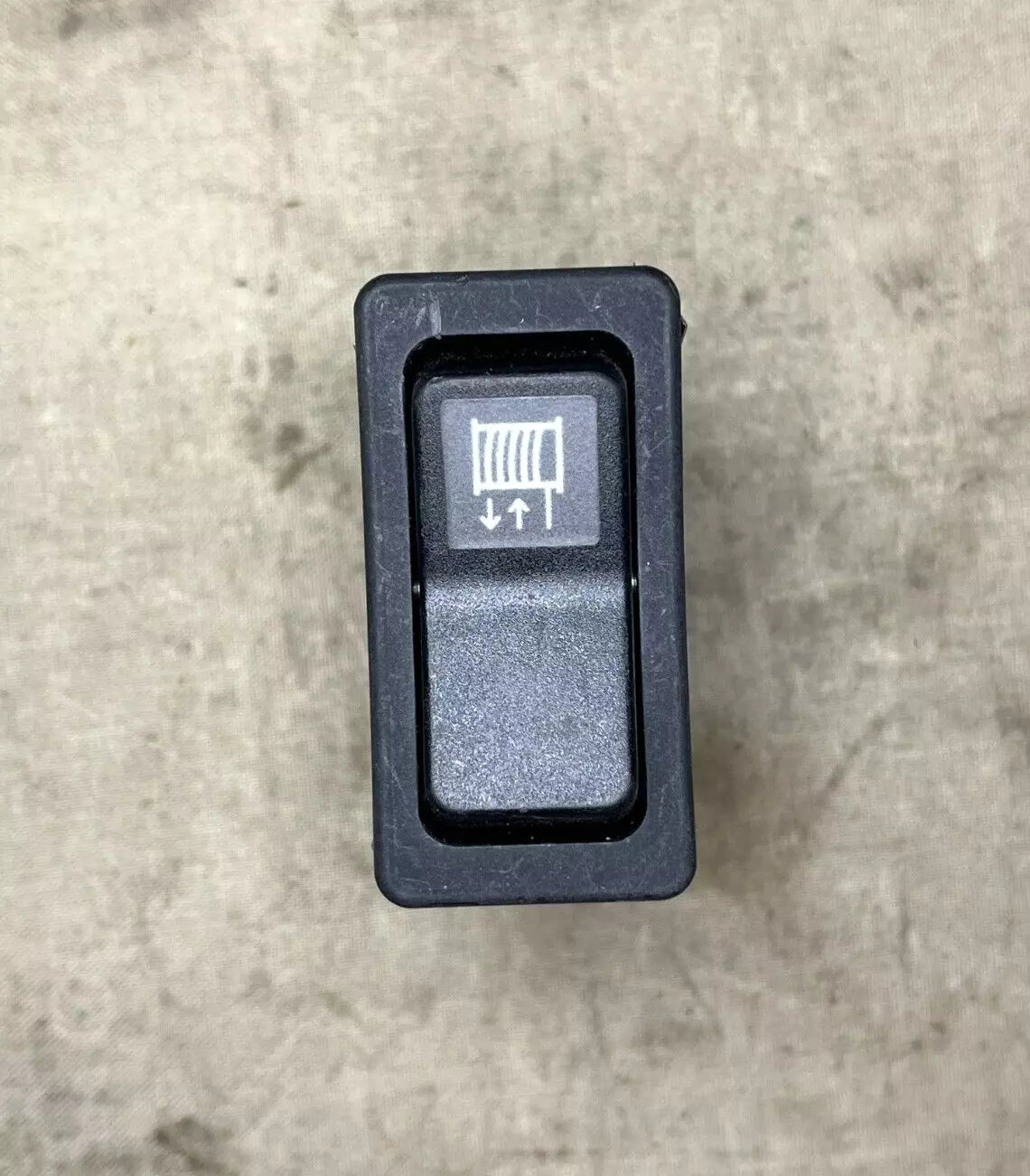

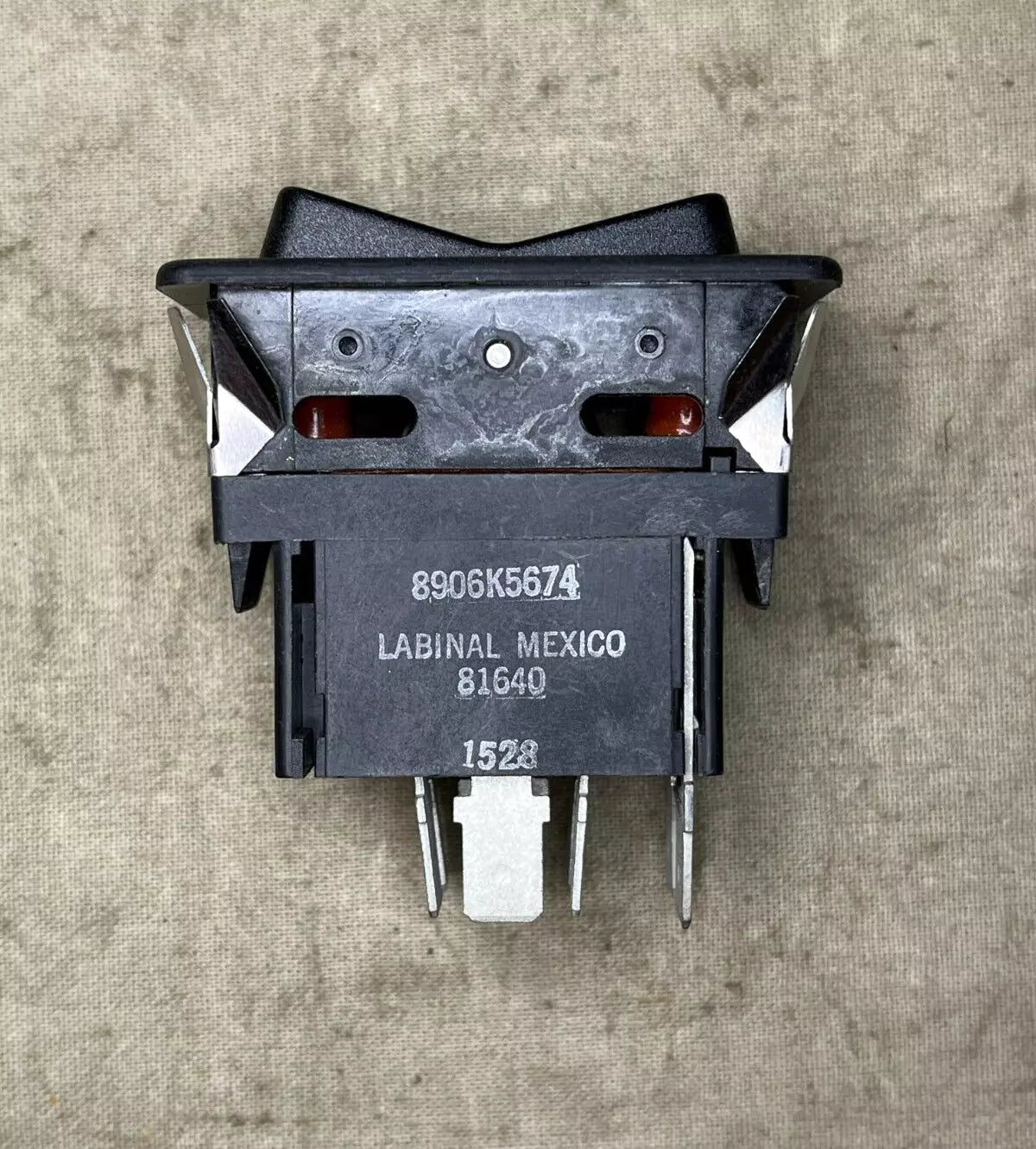

Mk23 MTVR Winch Toggle Switch 8HB631 | NSN 5930-01-480-9797
Mk23 MTVR Winch Toggle Switch 8HB631 | NSN 5930-01-480-9797
Couldn't load pickup availability
NSN 5930-01-480-9797 Specs and cross-references for NSN 5930-01-480-9797 (opens in a new tab) ↗
MK23 MTVR WINCH TOGGLE SWITCH 5930-01-480-9797 8HB631
|
Name |
Value |
|
BODY STYLE |
PANEL MOUNT |
|
BODY LENGTH |
2.050 INCHES NOMINAL |
|
BODY WIDTH |
1.050 INCHES NOMINAL |
|
BODY HEIGHT |
2.000 INCHES NOMINAL |
|
ACTUATOR LENGTH |
1.600 INCHES NOMINAL |
|
ACTUATOR STYLE |
RECTANGULAR |
|
ACTUATOR HEIGHT |
0.540 INCHES NOMINAL |
|
ACTUATOR WIDTH |
0.705 INCHES NOMINAL |
|
ACTUATOR POSITION-ACTION RELATIONSHIP |
CENTER POSITION MAINTAINED |
|
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE |
5.000 AMPERES LAMP DC |
