NEW Hummer H1 or HMMWV Rear Caliper Upgrade Kit
Fits H1: 1992-2006

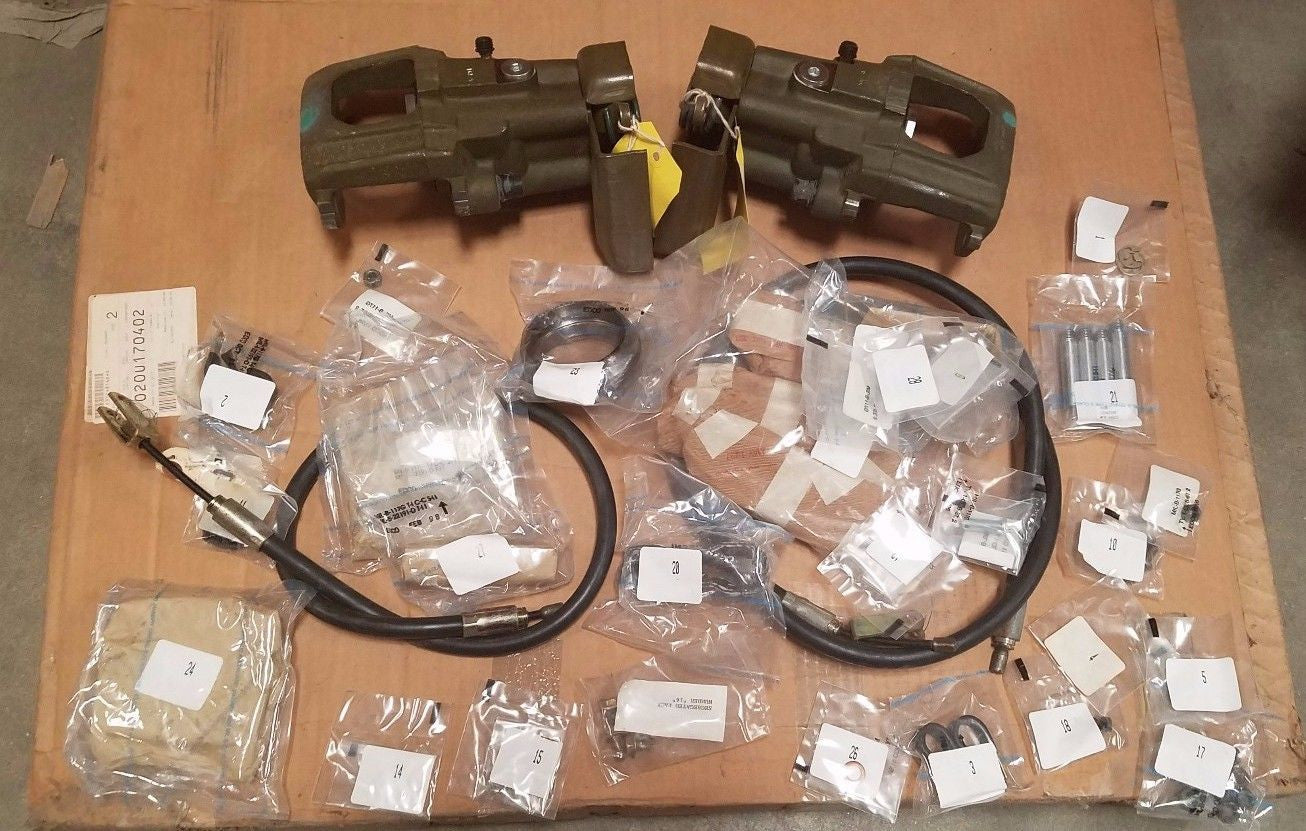

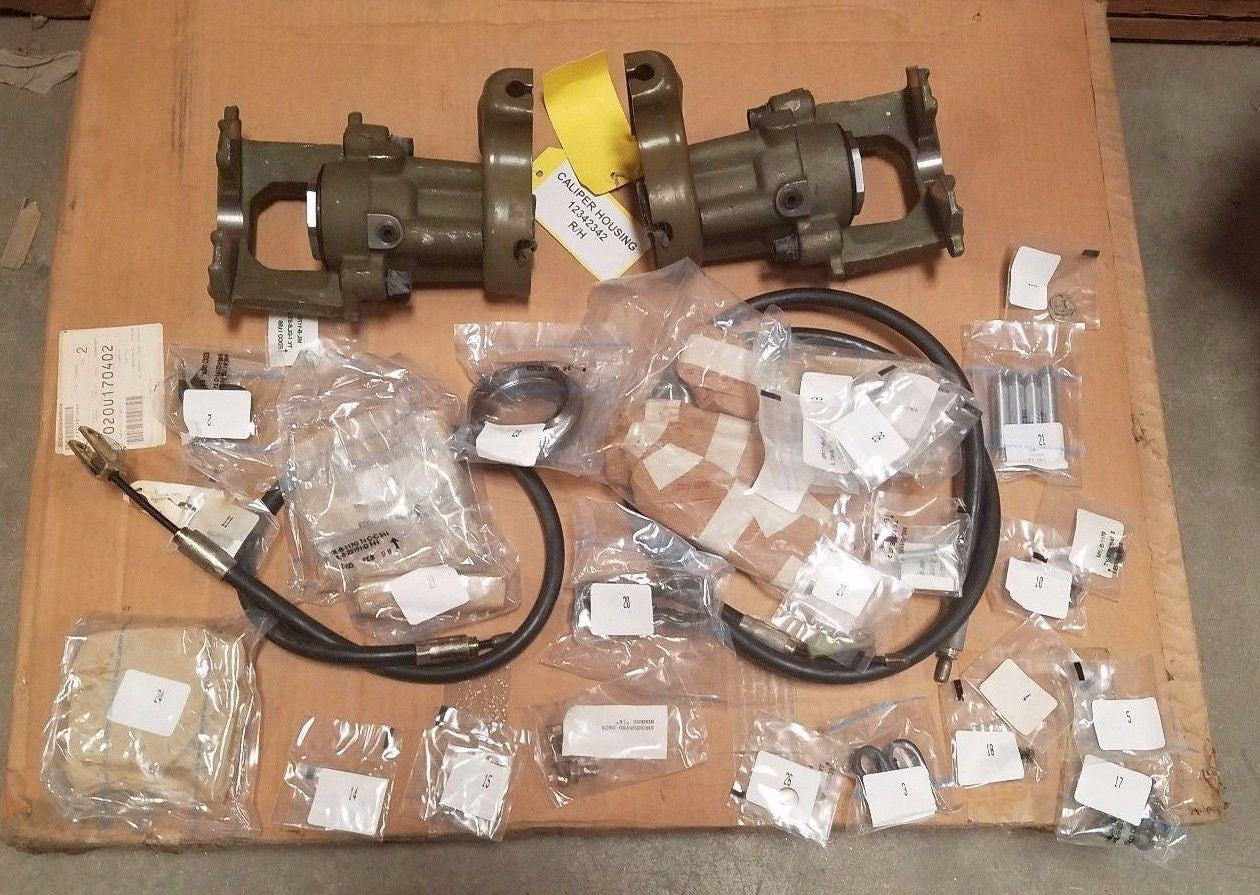

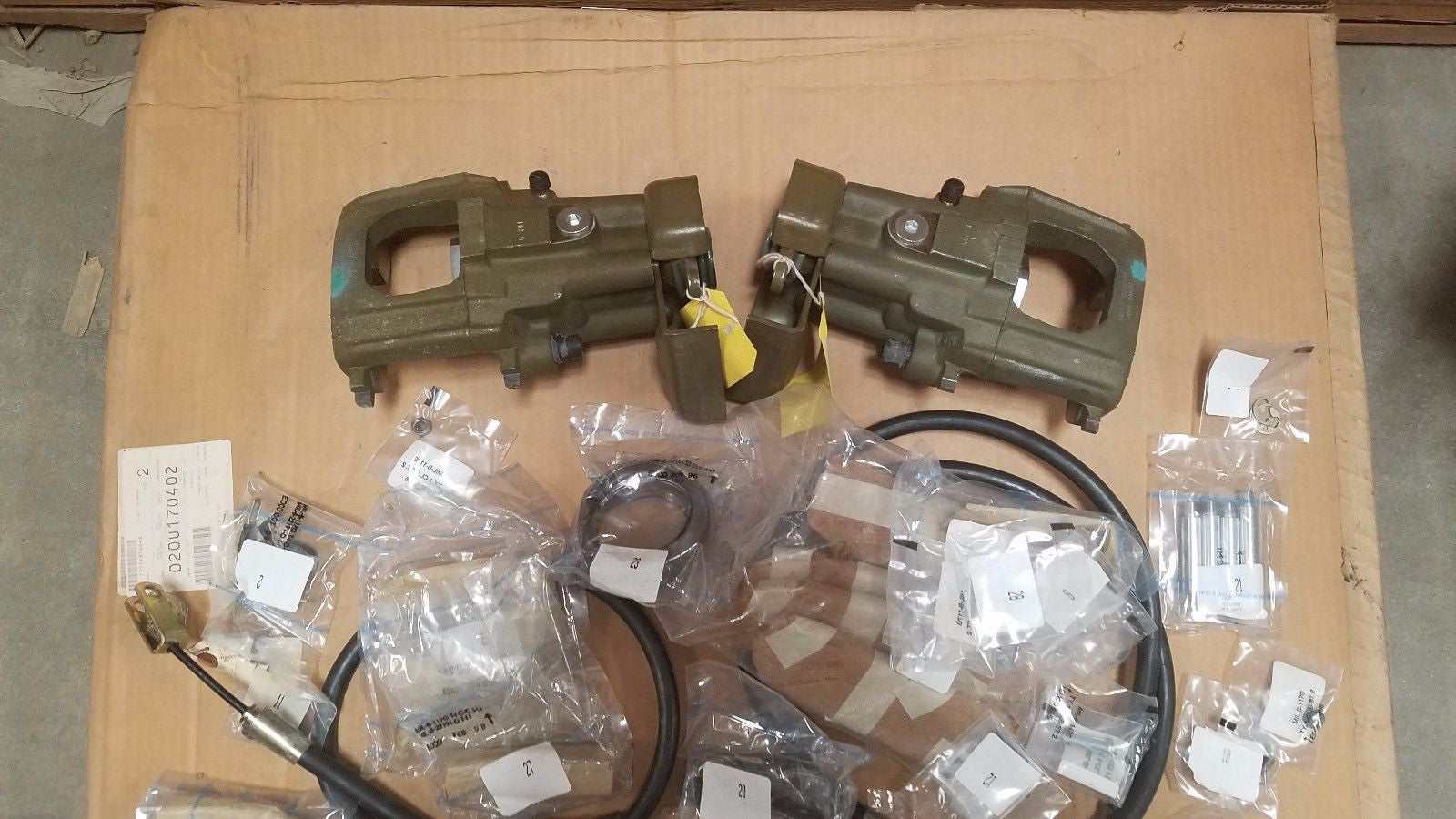

This kit is used to upgrade an early HMMWV that has the parking brake on the driveshaft into one that has parking brakes on each of the two rear calipers. This kit has all you need to do the conversion. These calipers and the parts that come with kit can be used as repair items for the Hummer H1.
Includes:
4 CLIP,RING MS16633-1050
3 CLAMP MS21333-104
2 CLAMP MS21333-105
1 WASHER MS27183-10
2 WASHER MS35338-44
1 NUT MS51943-33
1 NUT MS51943-34
1 NUT MS51968-6
1 SCREW MS90725-6
2 SCREW MS90728-5
4 WASHER 123153
3 PIN,COTTER 121222
1 PIN,CLEVIS 138084
1 WASHER 2436163
1 NUT 271172
4 SCREW 456644
10 NUT 9422297
2 SCREW 9431948
1 PARKING BRAKE CABLE 12341906
MOUNTING BRACKET
2 BRAKE CABLE BRACKET 12341986
4 PIN,LOCATING 12342339
4 PAD,BRAKE 12342340
2 GASKET 12338339
1 CLAMP ASSEMBLY 12338343-1
1 CLAMP ASSEMBLY 12338343-2
2 WASHER 12339204
1 EQUALIZER BAR 12341902
1 WASHER 12341897
1 L.H.CABLE ASSEMBLY 12341898-1
1 R.H.CABLE ASSEMBLY 12341898-3
1 PARKING BRAKE ROD 12341895

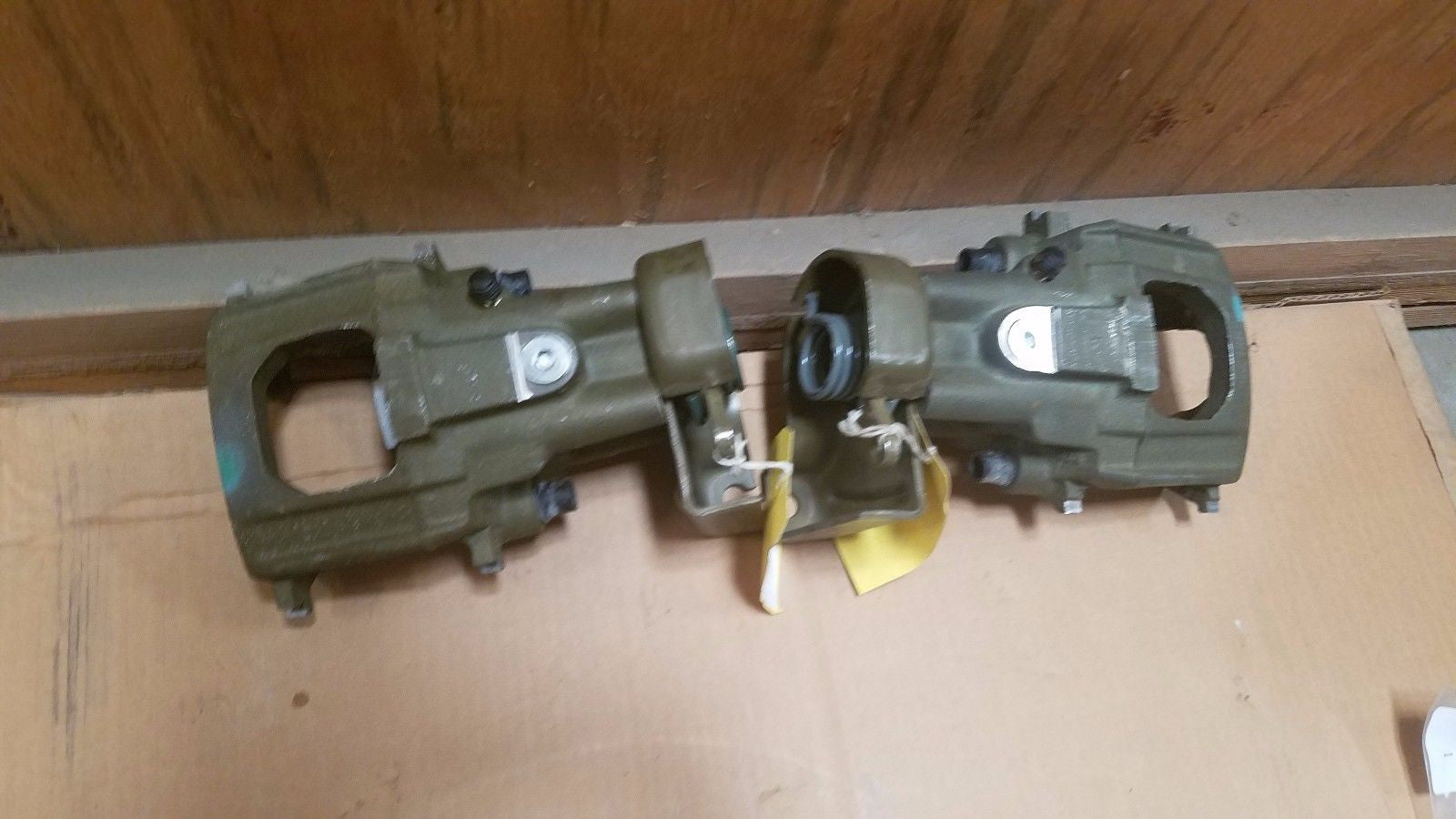

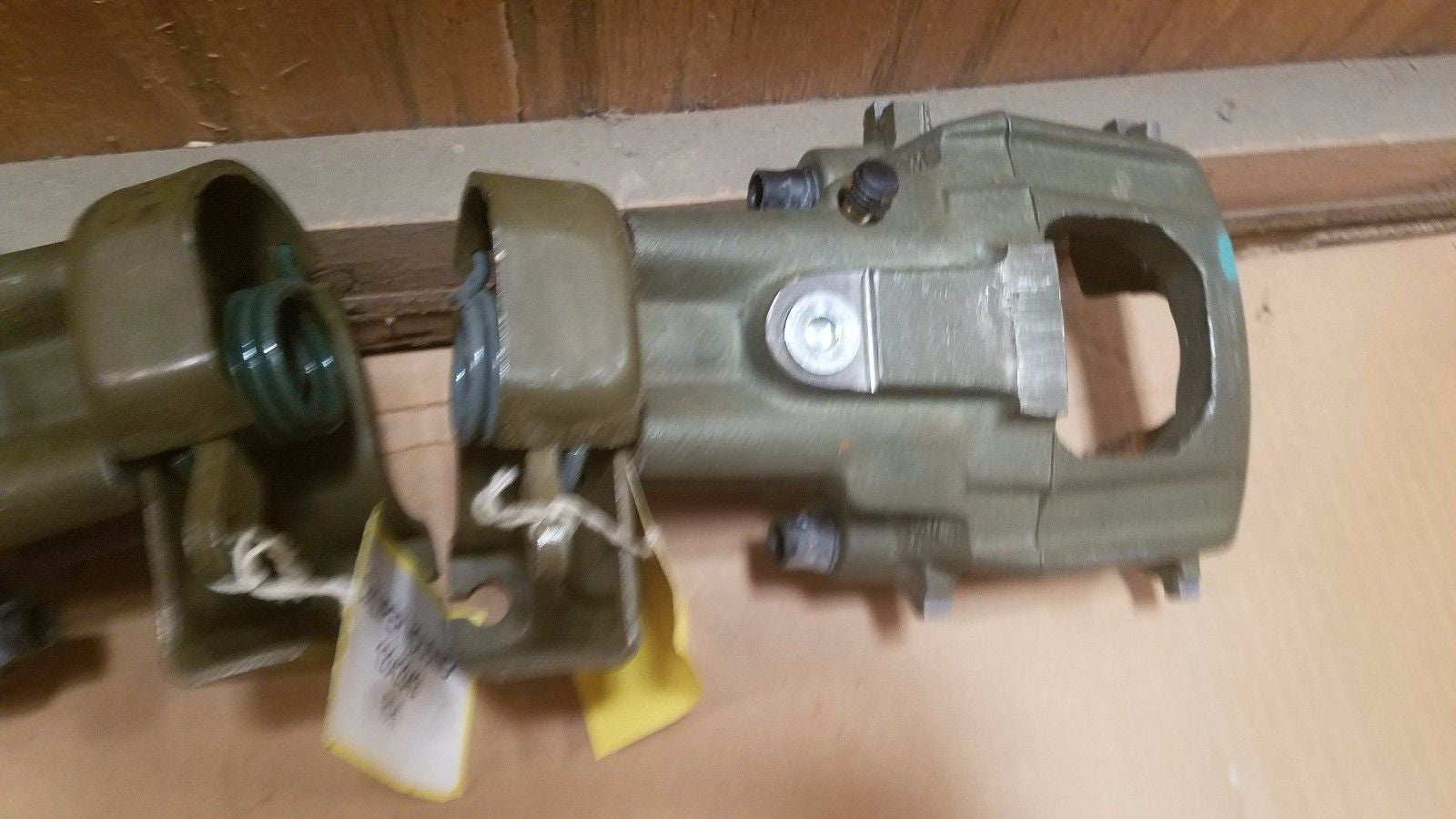

1 CALIPER HOUSING,L.H. 12342341
1 CALIPER HOUSING,R.H. 12342342
1 PLATE INSTRUCTION MWO 10930014
1 DRIVESCREW MS21318-20
